Question

In: Operations Management

Consider the following problem     Maximize Z=2x1 + 5x2 subject to                4x1+ 2x2 ≤ 6...

Consider the following problem

    Maximize Z=2x1 + 5x2

subject to

               4x1+ 2x2 ≤ 6

                x1 + x2 ≥ 2

                xi ≥0 for i=1,2

  1. Inserting slack, excess, or artificial variables, construct the initial simplex tableau.
  2. Identify the corresponding initial (artificial) basic feasible solution including the objective function value.
  3. Identify the entering basic variable and the leaving basic variable for the next iteration.

Solutions

Expert Solution

Maximize Objective function Z=2x1 + 5x2

subject to constraints:

               4x1+ 2x2 ≤ 6

                x1 + x2 ≥ 2

                xi ≥0 for i=1,2

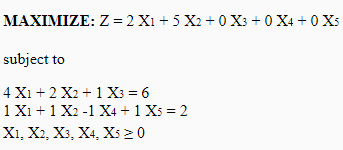

I have converted this problem to canonical form, here, I have added slack, surplus and artificial variables as needed

slack variable X3 is added as As the constraint 1 includes sign '≤'

surplus variable X4 and artificial variable X5 are added as constraint 2 includes sign '≥'

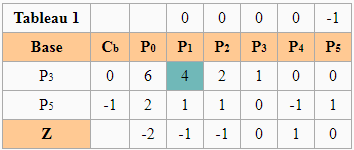

First tableau of Phase I

leaving variable is P3

entering variable is P1

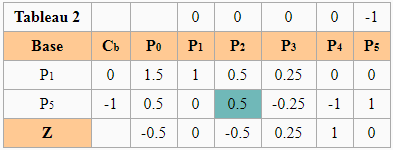

Intermediate operations

Pivot row (Row 1):
6 / 4 = 1.5
4 / 4 = 1
2 / 4 = 0.5
1 / 4 = 0.25
0 / 4 = 0
0 / 4 = 0

Row 2:
2 - (1 * 1.5) = 0.5
1 - (1 * 1) = 0
1 - (1 * 0.5) = 0.5
0 - (1 * 0.25) = -0.25
-1 - (1 * 0) = -1
1 - (1 * 0) = 1

Row Z:
-2 - (-1 * 1.5) = -0.5
-1 - (-1 * 1) = 0
-1 - (-1 * 0.5) = -0.5
0 - (-1 * 0.25) = 0.25
1 - (-1 * 0) = 1
0 - (-1 * 0) = 0

Leaving variable is P5
Entering variable is P2

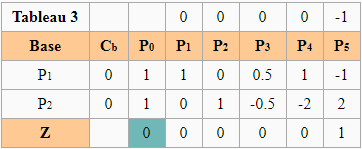

Intermediate calculations

Pivot row (Row 2):
0.5 / 0.5 = 1
0 / 0.5 = 0
0.5 / 0.5 = 1
-0.25 / 0.5 = -0.5
-1 / 0.5 = -2
1 / 0.5 = 2

Row 1:
1.5 - (0.5 * 1) = 1
1 - (0.5 * 0) = 1
0.5 - (0.5 * 1) = 0
0.25 - (0.5 * -0.5) = 0.5
0 - (0.5 * -2) = 1
0 - (0.5 * 2) = -1

Row Z:
-0.5 - (-0.5 * 1) = 0
0 - (-0.5 * 0) = 0
-0.5 - (-0.5 * 1) = 0
0.25 - (-0.5 * -0.5) = 0
1 - (-0.5 * -2) = 0
0 - (-0.5 * 2) = 1

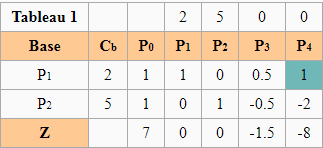

Phase II

Intermediate calculations

Remove the columns corresponding to artificial variables.

Modify the row of the objective function for the original problem.

Calculate the Z line:
-(0) + (2 * 1) + (5 * 1) = 7
-(2) + (2 * 1) + (5 * 0) = 0
-(5) + (2 * 0) + (5 * 1) = 0
-(0) + (2 * 0.5) + (5 * -0.5) = -1.5
-(0) + (2 * 1) + (5 * -2) = -8

Leaving variable is P1
Entering variable is P4

Intermediate calculations

Pivot row (Row 1):
1 / 1 = 1
1 / 1 = 1
0 / 1 = 0
0.5 / 1 = 0.5
1 / 1 = 1

Row 2:
1 - (-2 * 1) = 3
0 - (-2 * 1) = 2
1 - (-2 * 0) = 1
-0.5 - (-2 * 0.5) = 0.5
-2 - (-2 * 1) = 0

Row Z:
7 - (-8 * 1) = 15
0 - (-8 * 1) = 8
0 - (-8 * 0) = 0
-1.5 - (-8 * 0.5) = 2.5
-8 - (-8 * 1) = 0

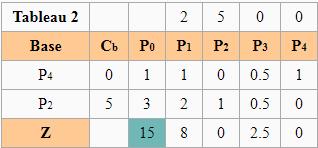

Optimal solution Objective Function Z = 15
X1 = 0
X2 = 3
