Question
In: Physics
A series circuit contains a 3.00-H inductor, a 2.40-μF capacitor, and a 25.0-Ω resistor connected to...
A series circuit contains a 3.00-H inductor, a 2.40-μF
capacitor, and a 25.0-Ω resistor connected to a 120-V (RMS) source
of variable frequency. Find the power delivered to the circuit when
the frequency of the source is each of the following.
(a) the resonance frequency
(b) one-half the resonance frequency
(c) one-fourth the resonance frequency
(d) two times the resonance frequency
(e) four times the resonance frequency
From your calculations, can you draw a conclusion about the frequency at which the maximum power is delivered to the circuit?

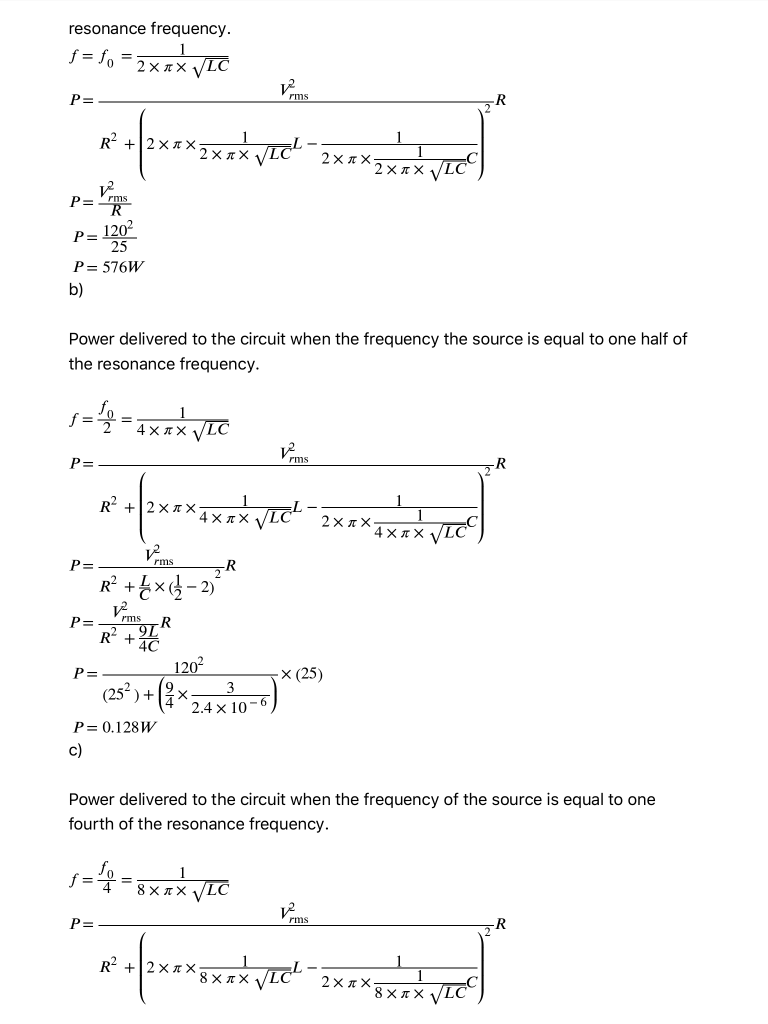

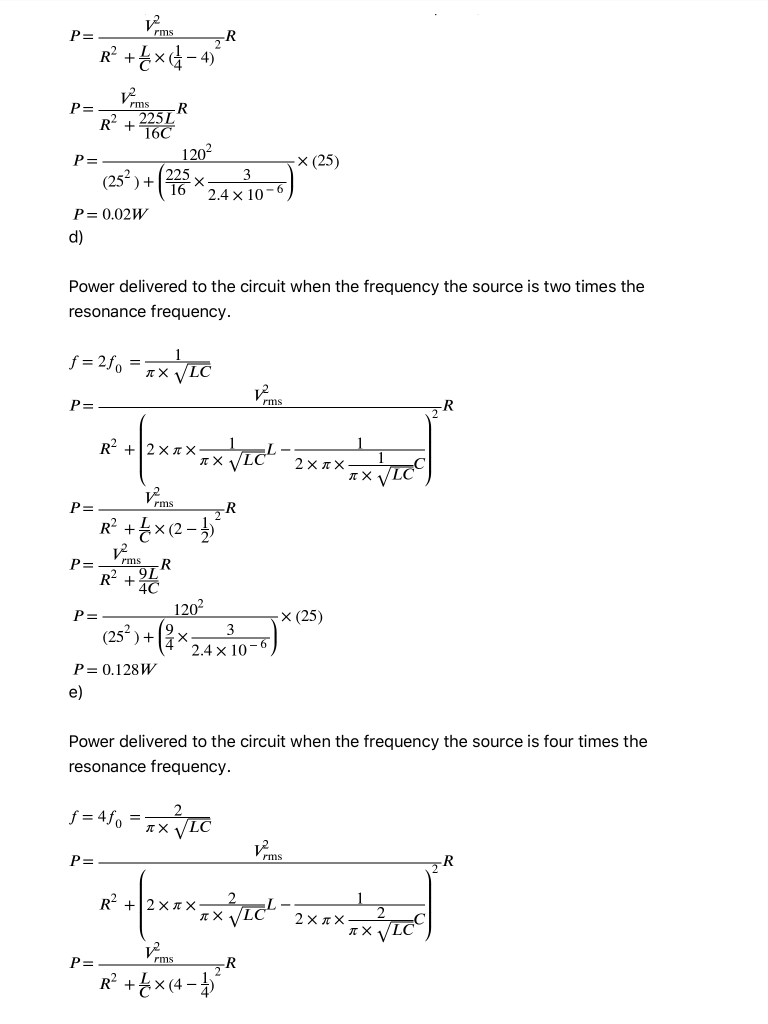

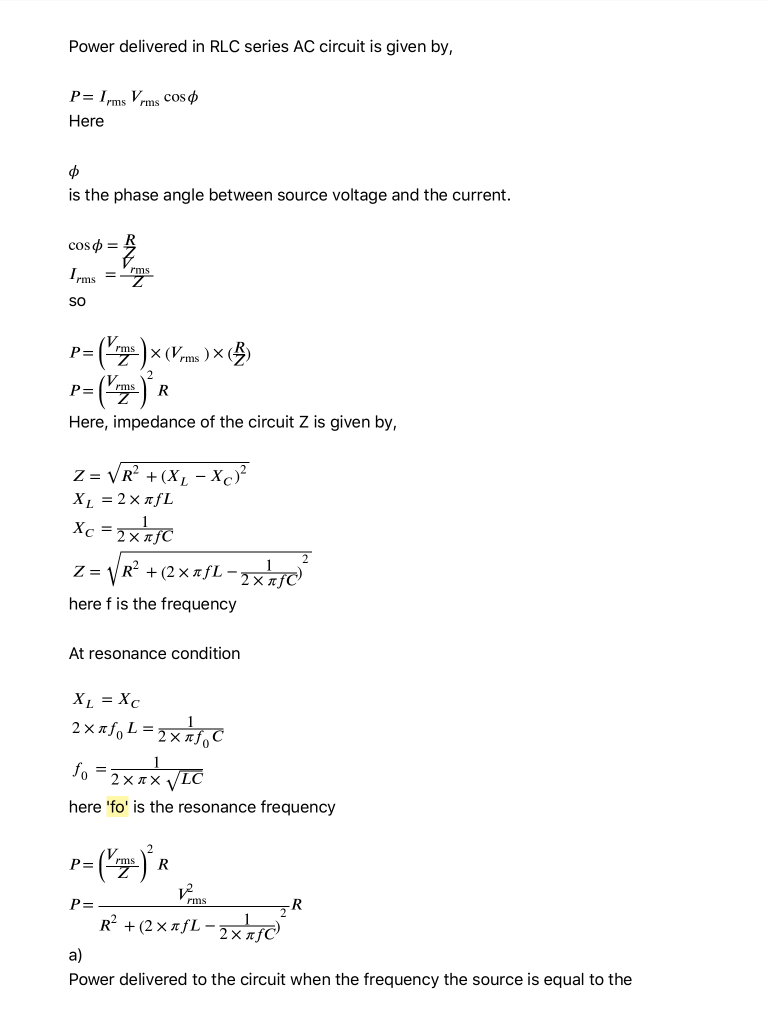

Solutions
genius_generous answered 20 hours agoRelated Solutions
A 215 Ω resistor, a 0.900 H inductor, and a 6.50 μF capacitor are connected in...
A 215 Ω resistor, a 0.900 H inductor, and a 6.50 μF
capacitor are connected in series across a voltage source that has
voltage amplitude 29.5 Vand an angular frequency of 220 rad/s .
a) What is v at t= 18.0 ms ? ANS: -27.7V
b) What is vR at t= 18.0 ms ?
c)What is vL at t= 18.0 ms ?
d)What is vC at t= 18.0 ms
?
e)What is VR?
f)What is VC?
g)What is VL?
A 197 Ω resistor, a 0.925 H inductor, and a 5.75 μF capacitor are connected in...
A 197 Ω resistor, a 0.925 H inductor, and a 5.75 μF capacitor
are connected in series across a voltage source that has voltage
amplitude 31.5 V and an angular frequency of 230 rad/s. What is
v at t= 19.0 ms? What is vR at
t= 19.0 ms? What is vL at t=
19.0 ms? What is vC at t=
19.0 ms? Compare
vC+vL+vR and
v at this instant. What is VR? What is
VC? What is VL? Compare
V and...
A 190 Ω resistor, a 0.875 H inductor, and a 5.75 μF capacitor are connected in...
A 190 Ω resistor, a 0.875 H inductor, and a 5.75 μF capacitor
are connected in series across a voltage source that has voltage
amplitude 32.0 V and an angular frequency of 270 rad/s.
A. What is v at t= 22.0 ms ?
B. What is vR at t= 22.0 ms ?
C. What is vL at t= 22.0 ms ?
D. What is vC at t= 22.0 ms ?
E. Compare vC+vL+vR and v at
this instant:
vC+vL+vR<v
vC+vL+vR>v...
A 193 Ω resistor, a 0.750 H inductor, and a 6.00 μF capacitor are connected in...
A 193 Ω resistor, a 0.750 H inductor, and a 6.00 μF capacitor
are connected in series across a voltage source that has voltage
amplitude 28.5 V and an angular frequency of 245 rad/s . What is vR
at t= 18.0 ms ? What is vL at t= 18.0 ms ? What is vC at t= 18.0 ms
?
An RLC series circuit consists of a 450-Ω resistor, a 3.00-mF capacitor, and a 1.00-H inductor....
An RLC series circuit consists of a 450-Ω resistor, a 3.00-mF
capacitor, and a 1.00-H inductor. The circuit is driven by a power
source that oscillates at 20.0 Hz and has an ε_rms value of 90.0 V
. The power source is switched on at t = 0 and at that instant the
emf is at its maximum value.
A) Calculate the power supplied at t = 0.0200 s.
B) Calculate the power supplied at t = 0.0375 s.
C)...
An RLC series circuit consists of a 450-Ω resistor, a 3.00-mF capacitor, and a 1.00-H inductor....
An RLC series circuit consists of a 450-Ω resistor, a 3.00-mF
capacitor, and a 1.00-H inductor. The circuit is driven by a power
source that oscillates at 20.0 Hz and has an Erms value of 30.0 V .
The power source is switched on at t = 0 and at that instant the
emf is at its maximum value.
Part A Calculate the power supplied at t = 0.0200 s.
Part B Calculate the power supplied at t = 0.0375...
A series ac circuit contains a 210 Ω resistor, a 20.0 mH inductor, a 3.30 μF...
A series ac circuit contains a 210 Ω resistor, a 20.0 mH
inductor, a 3.30 μF capacitor, and an ac power source of voltage
amplitude 45.0 V operating at an angular frequency of 360 rad/s .
1)What is the power factor of this circuit? 2)Find the average
power delivered to the entire circuit. 3)What is the average power
delivered to the resistor, to the capacitor, and to the
inductor?
A series circuit contains a 3.00 H inductor, a 3.00
A series circuit contains a 3.00 H inductor, a 3.00
Suppose an electrical circuit contains a 1 H inductor, a 10 Ω resistor and a capacitor...
Suppose an electrical circuit contains a 1 H inductor, a 10 Ω
resistor and a capacitor rated at 1/7 F. If the circuit is hooked
up to an alternating voltage source described by E(t) = 68 cost V
and initially q(0) = 1 C and i(0) = 0 A, find a function that
describes the charge as a function of time. Lq'' + Rq' +
q/C = E(t).
Please show work using a complementary and particular solution
if possible.
A 200 Ω resistor is in series with a 8.50×10−2 H inductor and a 0.540 μF...
A 200 Ω resistor is in series with a 8.50×10−2 H
inductor and a 0.540 μF capacitor.
part A: Compute the impedance of the circuit at a frequency of
f1 = 500 Hz and at a frequency of f2 = 1000 Hz .
Enter your answer as two numbers separated with a comma.
part b: In each case, compute the phase angle of the source
voltage with respect to the current.
Enter your answer as two numbers separated with a...
