Question

In: Mechanical Engineering

The piston cylinder contains 4 kg of saturated water vapor with 200 kPa. The heat is...

The piston cylinder contains 4 kg of saturated water vapor with 200 kPa. The heat is rejected from the water, and the piston moves from the stops when the pressure reaches 100 kPa. Then the heat is rejected until the total volume decrease to 30% from the initial volume. Determine the work done and heat transfer during this process, show the process on a P-V diagram.

Solutions

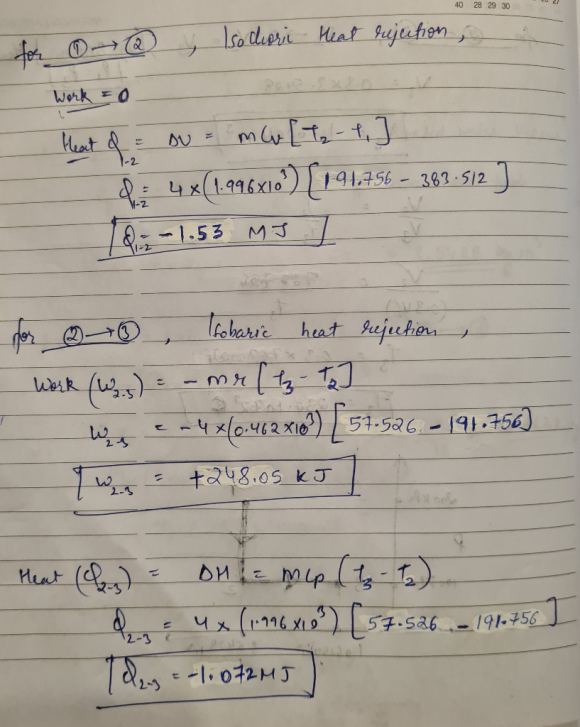

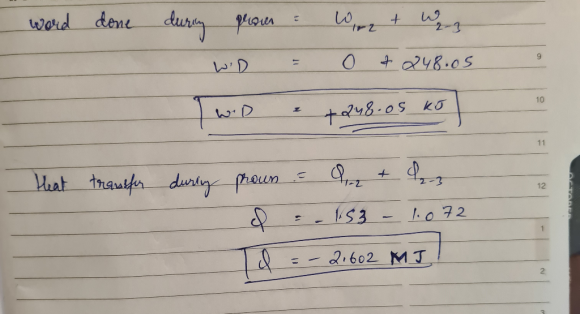

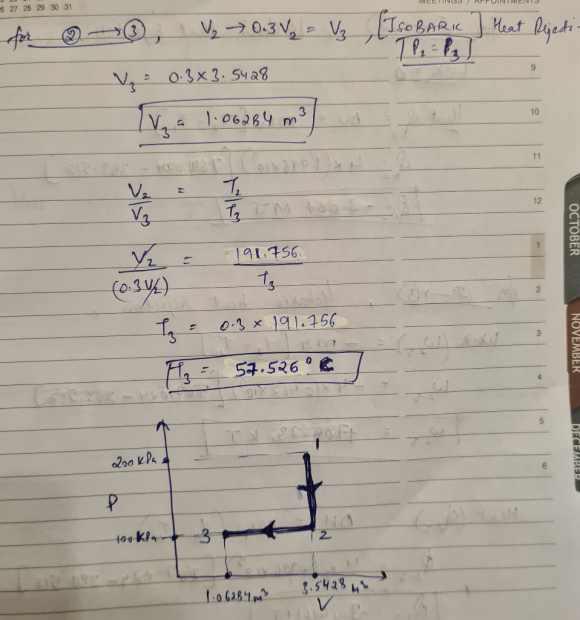

Expert Solution

samet mamat answered 7 months ago
Next > < Previous

Related Solutions

A piston-cylinder device initially contains 75 g of saturated water vapor at 310 kPa . A...
A piston-cylinder device initially contains 75 g of saturated water vapor at 310 kPa . A resistance heater is operated within the cylinder with a current of 0.4 A from a 200 Vsource until the volume doubles. At the same time a heat loss of 2 kJ occurs. a.Determine the final temperature (T2). b. Determine the duration of the process. c. What-if scenario: What is the final temperature if the piston-cylinder device initially contains saturated liquid water?
A mass of 3 kg of saturated liquid-vapor mixture of water is contained in a piston-cylinder...
A mass of 3 kg of saturated liquid-vapor mixture of water is contained in a piston-cylinder device at 175 kPa. Initially, 2 kg of the water is in the liquid phase and the rest is in the vapor phase. An electrical heater is in operation, and the piston rises until it hits a set of stops, which are set at double the initial volume. Electrical heating continues until the pressure reaches 500 kPa. Determine (a) the initial and final temperatures,...
A mass of 3 kg of saturated liquid-vapor mixture of water is contained in a piston-cylinder...
A mass of 3 kg of saturated liquid-vapor mixture of water is contained in a piston-cylinder device at 175 kPa. Initially, 2 kg of the water is in the liquid phase and the rest is in the vapor phase. An electrical heater is in operation, and the piston rises until it hits a set of stops, which are set at double the initial volume. Electrical heating continues until the pressure reaches 500 kPa. Determine (a) the initial and final temperatures,...
1 kg of saturated steam at 1000 kPa is in a piston-cylinder and the massless cylinder...
1 kg of saturated steam at 1000 kPa is in a piston-cylinder and the massless cylinder is held in place by pins. The pins are removed and the system suddenly and adiabatically expands to 5x its original volume before the piston hits a pair of upper pins. The expansion takes place against an atmosphere is 60 kPa. What is the final specific internal energy of the system? The answer will be in kJ/kg.
A piston?cylinder device initially contains 1.5?kg saturated liquid water at 120°C. Now heat is transferred to...
A piston?cylinder device initially contains 1.5?kg saturated liquid water at 120°C. Now heat is transferred to the water until the volume increases 100 times. Determine: a. Initial Volume of the water. b. Final volume of water. c. Final state of water. d. Amount of heat added to the water e. Draw the T?s diagram
A piston–cylinder device initially contains 2 kg water in 1 m3 at 500 kPa. The system...
A piston–cylinder device initially contains 2 kg water in 1 m3 at 500 kPa. The system then cools down and the volume drops to half and pressure of 300 kPa. At this state, the piston is resting on a set of stops, and the mass of the piston is such that a pressure of 500 kPa is required to move it. (a) Show the process on a P-v, T-v and P-T diagrams with respect to saturation lines and determine, (b)...
A weighted piston-cylinder device (pressure is not constant) initially contains 1.2 kg saturated liquid water at...
A weighted piston-cylinder device (pressure is not constant) initially contains 1.2 kg saturated liquid water at 190oC. Now heat is transferred to the water until the volume quadruples (increase four times) and the cylinder contains saturated vapor only. Determine: a) The final volume of the tank. b) The final temperature and pressure. c) The internal energy change of the water.
An Insulated piston cylinder device contains 4 L of saturated liquid water at a constant pressure...
An Insulated piston cylinder device contains 4 L of saturated liquid water at a constant pressure of 150 K PA. water is stirred by a paddle wheel while a current of 9 A flows for one hour through a resistor placed in the water. if 80% of the liquid is vaporized doing this constant pressure process and the paddle does 400 kJ of work during this time. determine the resistance of the resistor?
A mass of 5 kg of saturated water vapor at 150 kPa is heated at constant...
A mass of 5 kg of saturated water vapor at 150 kPa is heated at constant pressure until the temperature reaches 200°C, the the boundary work in KJ is done by the steam during this process is closest to?
A 10 kg steam initially at 2 MPa saturated vapor is inside an insulated piston cylinder....
A 10 kg steam initially at 2 MPa saturated vapor is inside an insulated piston cylinder. The cylinder has a bottom valve. As this valve opens, steam at 800 kPa and 200C exits while the steam inside the tank has 400kPa saturated vapor. Find the exit mass of steam from the cylinder in kg.
