The figure shows the equipotential contours in the plane of two point charges. The labels on...

The figure shows the equipotential contours in the plane of two point charges. The labels on the contours are in V. Determine for each of the following statement whether it is true or false

imgur.com/WLZRngB

The two charges are in the ratio 2:3.

There is a point along the line y=0 and between x= -10 and +10 where the potential is zero.

The electrostatic potential energy of a negative charge increases as it is brought from a to b.

There is a point along the line y=0 and between x =-10 and +10 where the field is zero.

Work is done on the field in moving a charge from c to d.

The above charge configuration can be described as an electric dipole.

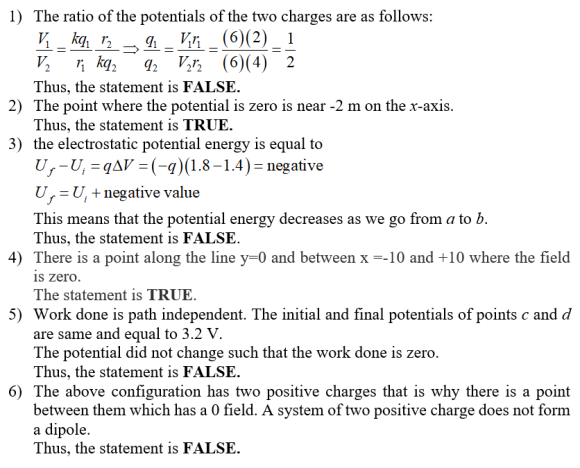

Expert Solution

genius_generous answered 5 months ago
