Design a combination of identical capacitors, each with capacitance C, for which the equivalent capacitance is...

Design a combination of identical capacitors, each with capacitance C, for which the equivalent capacitance is 3C/4. (Select all that apply.) 1.Make 4C capacitors by combining four capacitors in series; then combine three of these in parallel. 2.Connect three capacitors in parallel to obtain an equivalent capacitance of 3C; then connect four of these new capacitors in series. 3. Make C/4 capacitors by combining four capacitors in series; then combine three of these in parallel. 4. Connect four capacitors in parallel to obtain an equivalent capacitance of 4C; then connect four of these new capacitors in series. 5.Connect three capacitors in series to obtain an equivalent capacitance of 3C; then connect four of these new capacitors in parallel. 6. Make C/4 capacitors by combining four capacitors in parallel; then combine three of these in series. Select which numbers of 1-6 would work for an equivalent capacitance of 3C/4

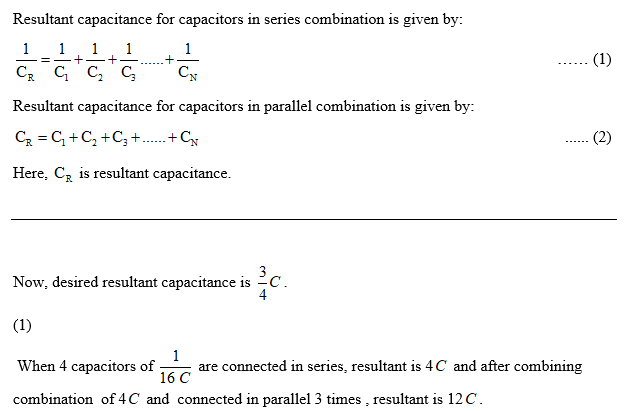

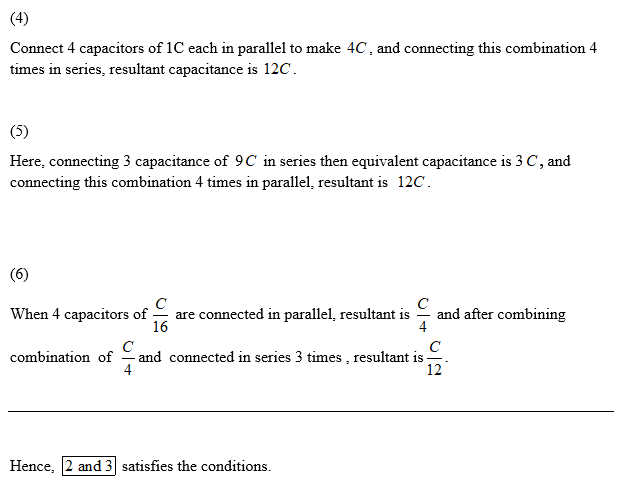

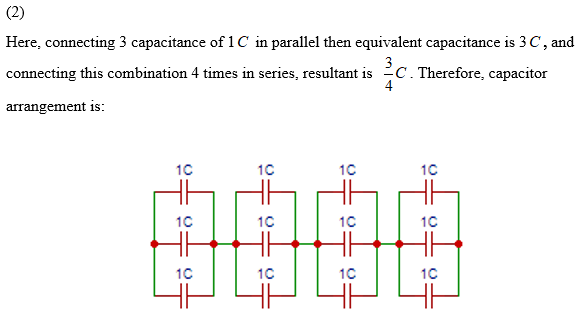

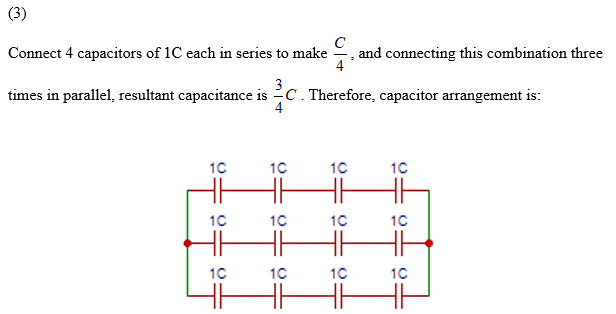

Expert Solution

genius_generous answered 1 hour ago

1. What was the equivalent capacitance for two capacitors in series? What was the equivalent capacitance...

1. What was the equivalent capacitance for two capacitors in series? What was the equivalent capacitance for two capacitors in parallel? 2. How is the charge on a capacitor found? 3. What held more total charge, capacitors in series or in parallel? 4. How does current flow in a circuit with a capacitor if the two plates in a capacitor are not connected by a conductor? 5. What do each of the four lines on a resistor mean? (Give four...

Your electronics company has several identical capacitors with capacitance C1C1 and several others with capacitance C2C2.You...

Your electronics company has several identical capacitors with capacitance C1C1 and several others with capacitance C2C2.You must determine the values of C1C1 and C2C2 but don't have access to C1C1 and C2C2 individually. Instead, you have a network with C1C1 and C2C2 connected in series and a network with C1C1 and C2C2 connected in parallel. You have a 200.0 VV battery and instrumentation that measures the total energy supplied by the battery when it is connected to the network. When...

Two identical parallel-plate capacitors, each with capacitance 20.0 μF, are charged to potential difference 40.0 V...

Two identical parallel-plate capacitors, each with capacitance 20.0 μF, are charged to potential difference 40.0 V and then disconnected from the battery. They are then connected to each other in parallel with plates of like sign connected. Finally, the plate separation in one of the capacitors is doubled. (a) Find the total energy of the system of two capacitors before the plate separation is doubled. (b) Find the potential difference across each capacitor after the plate separation is doubled. (c)...

Two identical plate capacitors each with the capacity C = 0.01μF are connected in parallel. The...

Two identical plate capacitors each with the capacity C = 0.01μF are connected in parallel. The capacitors were charged to a voltage of U = 300 V and disconnected from the voltage source. The plates of one of the two capacitors were then pushed apart to a distance twice the original plate distance. What charge flows through the wires?

Two identical capacitors are connected in parallel, and each acquires a charge Q0 = 1.12E-6 C...

Two identical capacitors are connected in parallel, and each acquires a charge Q0 = 1.12E-6 C when connected to a source of voltage V0 = 2.45 V. The voltage source is disconnected, and a dielectric with constant ? = 2.00 is inserted to fill the space between the plates of one of the capacitors. What is the smaller of the two final capacitor charges? What is the larger of the two final charges? What is the final volatge across the...

Three capacitors, each having a capacitance of 1.0 µF. They can be connected in many ways....

Three capacitors, each having a capacitance of 1.0 µF. They can be connected in many ways. How many possible ways that they can be connected to have different total capacitance? ______ (1 pt) Draw each configuration and calculate the corresponding total capacitance. (4 pts) Consider the configuration with the biggest total capacitance, if there is a potential difference of 100 V across the combination, what is the charge on each of the capacitors? (1 pt)

Two capacitors are connected in series. Let 3.30?F be the capacitance of first capacitor, 5.00?Fthe capacitance...

Two capacitors are connected in series. Let 3.30?F be the capacitance of first capacitor, 5.00?Fthe capacitance of the second capacitor, and Vab = 60.0V the potential difference across the system. A)Calculate the charge on each capacitor (Q1 AND Q2) B)Calculate the potential difference across each capacitor.(Q1 AND Q2)

For a particular DRAM design the cell capacitance is C,=50fF, Vpp=5 V and V=1.4 V. Each...

For a particular DRAM design the cell capacitance is C,=50fF, Vpp=5 V and V=1.4 V. Each cell represents a capacitive load on the bit line of 2fF. The sense amplifier and other circuitry attached to the bit line has a 20fF. What is the maximum number of cells that can be attached to a bit line while ensuring a minimum bit line signal of 0.1 V? How many bits of row addressing can be used? If the sense amplifier gain...

What is the equivalent capacitance for the circuit of the figure? (Figure 1)

Part A What is the equivalent capacitance for the circuit of the figure? (Figure 1)Express your answer to two significant figures and include the appropriate units. Part B How much charge flows through the battery as the capacitors are being charged? Express your answer to two significant figures and include the appropriate units.

Two identical capacitors each consists of two circular parallel plates with a radius of 1.6 cm...

Two identical capacitors each consists of two circular parallel plates with a radius of 1.6 cm and a separation distance of 3.0 mm. They are filled with a dielectric which has a dielectric constant (strength) of LaTeX: \kappaκκ = 32. These two capacitors are connected in parallel, and connected to a 1.5V battery a) what is their total capacitance? b) If the dielectric is removed what is the total capacitance? c) What energy is stored on the capacitors when they...
