Question
In: Physics
Three point charges are located at the corners of an equilateral triangle as in the figure...
Three point charges are located at the corners of an equilateral triangle as in the figure below. Find the magnitude and direction of the net electric force on the 1.10 µC charge. (Let A = 1.10 µC, B = 6.80 µC, and C = −4.16 µC.) Three charged particles lie in the x y-coordinate plane at the vertices of an equilateral triangle with side length 0.500 m. Positive charge A is at the origin. Positive charge B is in the first quadrant, along a line 60.0° counterclockwise from the positive x-axis. Negative charge C is at (0.500, 0). magnitude N direction ° below the +x-axis
Solutions

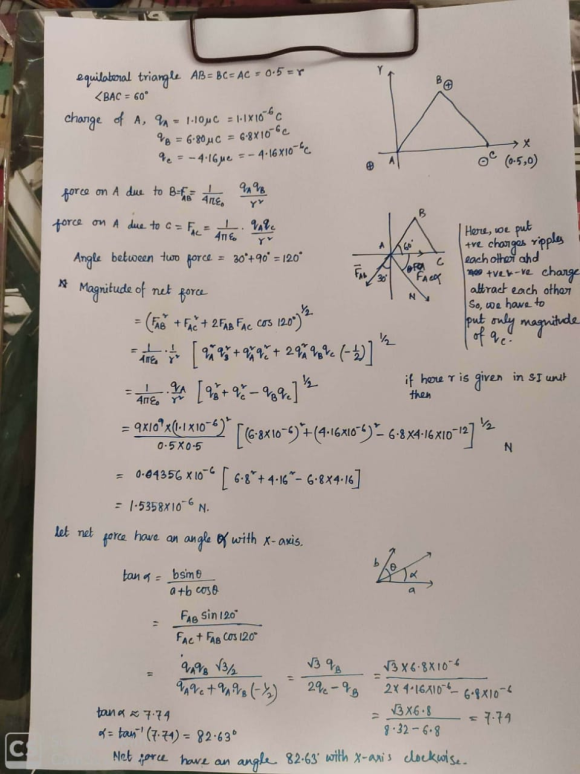

genius_generous answered 2 months agoRelated Solutions
Three point charges are located at the corners of an equilateral triangle as in the figure...
Three point charges are located at the corners of an equilateral
triangle as in the figure below. Find the magnitude and direction
of the net electric force on the 1.70 µC charge. (A = 1.70
µC, B = 7.20 µC, and C = -4.30 µC.)
Magnitude N
Direction degree (Counterclockwise from the + X-axis)
Three point charges are located on the corners of an equilateral triangle 50cm side: The charge...
Three point charges are located on the corners of an equilateral
triangle 50cm side: The charge q_1 = + 10µC is at the origin, The
charge q_2 = + 9µC in the upper corner of the triangle, at charge
q_3 = -6 µC located at the x axis What is the value of the
potential energy of the system of the three charges?
Three point charges are located on the corners of an equilateral triangle 50cm side: The charge...
Three point charges are located on the corners of an equilateral
triangle 50cm side: The charge q_1 = + 10µC is at the origin, The
charge q_2 = + 9µC in the upper corner of the triangle, at charge
q_3 = -6 µC located at the x axis.
What is the total force (magnitude and direction) exerted on
q_1
Consider three point charges at the corners of an equilateral triangle, its base sitting on the...
Consider three point charges at the corners of an equilateral
triangle, its base sitting on the x-axis, with charge qA positioned
at the origin, qB is at x=+3.50 cm, and qC is at the (top) third
corner. qC = +2.60 μC, and the net electric force on qC is 375.0 N
in the negative y direction. a. Explain briefly but clearly how you
know that qA and qB must have the same magnitude charge and what
the sign of that...
1. Consider three point charges at the corners of a triangle as shown in the figure,...
1. Consider three point charges at the corners of a triangle as
shown in the figure, where q1=6.0x10-9 C , q3= 5.0x10-9 C,
q2=-2.0x10-9 C, and the distance of separation are shown in the
figure. Calculate the resultant force acting on q3. (Given:
60degree angle at q1 & q2, radius= 5 meters)
please explain. Thank you :)
three charges are placed on the corners of an equilateral triangle with side lenght L. calculate...
three charges are placed on the corners of an equilateral
triangle with side lenght L. calculate the force on the bootom
right charge. Record your answer as a vector in i,j,k. your answer
should be in term of k,L and Q
Three point charges, q, 2q, and 3q, are at the vertices of an equilateral triangle of...
Three point charges, q, 2q, and 3q, are at the vertices of an
equilateral triangle of sides a. If q= 15.8 nC and a= 11.1 cm, what
is the magnitude of the electric field at the geometric center of
the triangle?
Please explain in details, in particular the trig to set up the
equilateral triangle. I am confused.
Three point charges are placed at the corners of a right-angle triangle, as shown in the...
Three point charges are placed at the corners of a right-angle
triangle, as shown in the figure. The masses, charges and
coordinates of the three objects are given as follows: Mass (g):
Charge (μC): Coordinate (mm): ?1 = 2.30 ?1 = −1.25 ?1 = (0; 6.00)
?2 = 0.15 ?2 = +0.55 ?2 = (0; 0) ?3 = 1.50 ?3 = −2.05 ?3 = (4.00;
0) (a) Determine the coordinate of the centre of mass of the
system. (b) Calculate...
Two charges, + q and - q, occupy two corners of an equilateral triangle, as shown...
Two charges, + q and - q, occupy two corners of an equilateral
triangle, as shown in FIGURE 19-51. (a) If q = 1.8 mC and r = 0.50
m, find the magnitude and direction of the electric field at point
A, the other vertex of the triangle. Let the direction angle be
measured counterclockwise from the positive x axis. (b) What is the
total electric flux through the surface indicated in the figure?
(c) Explain why Gauss’s law cannot...
three charged particles are placed at the corners of an equilateral triangle of side 1.20m. the...
three charged particles are placed at the corners of an equilateral
triangle of side 1.20m. the charges are q1 =3.0 q2=-.85uc and q3=
-6.0uc. Calculate the magnitude and direction of the net force on
each s
ide due to the other two. assume the +x axis points to the right
that is from q2 to q3.
q2 to q3 is along x axis q1 is above it.
please show steps.
