Design a Mealy state diagram for a sequence detector that has a single input and a...

Design a Mealy state diagram for a sequence detector that has a single input and a single output. The output is to be “1” unless the input has been “0” for four consecutive clock pulses or “1” for three consecutive pulses. Implement your design using D flip-flops and any logic gates. Assume non-overlapping input sequences are to be detected.

Solutions

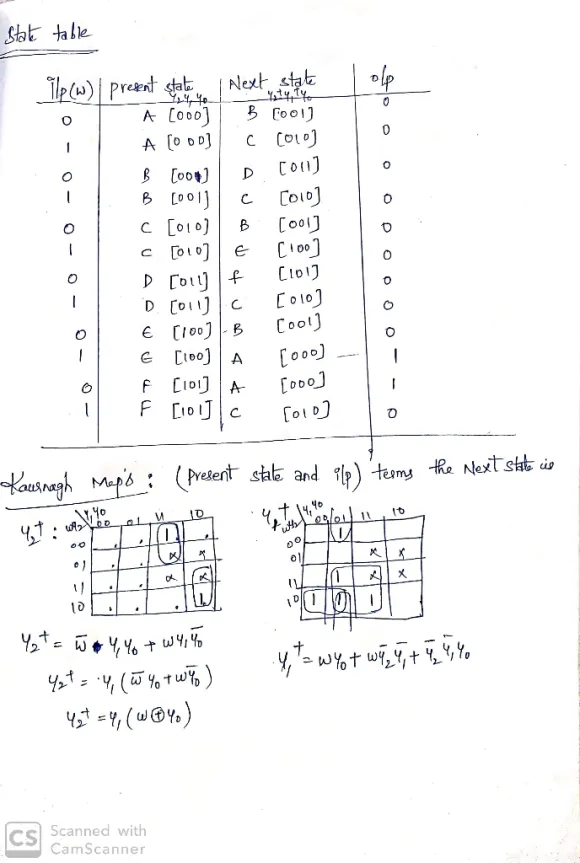

Expert Solution

Manojponduru answered 1 year ago
