A beam of electrons is shot into a uniform downward electric field of magnitude 1.10 103...

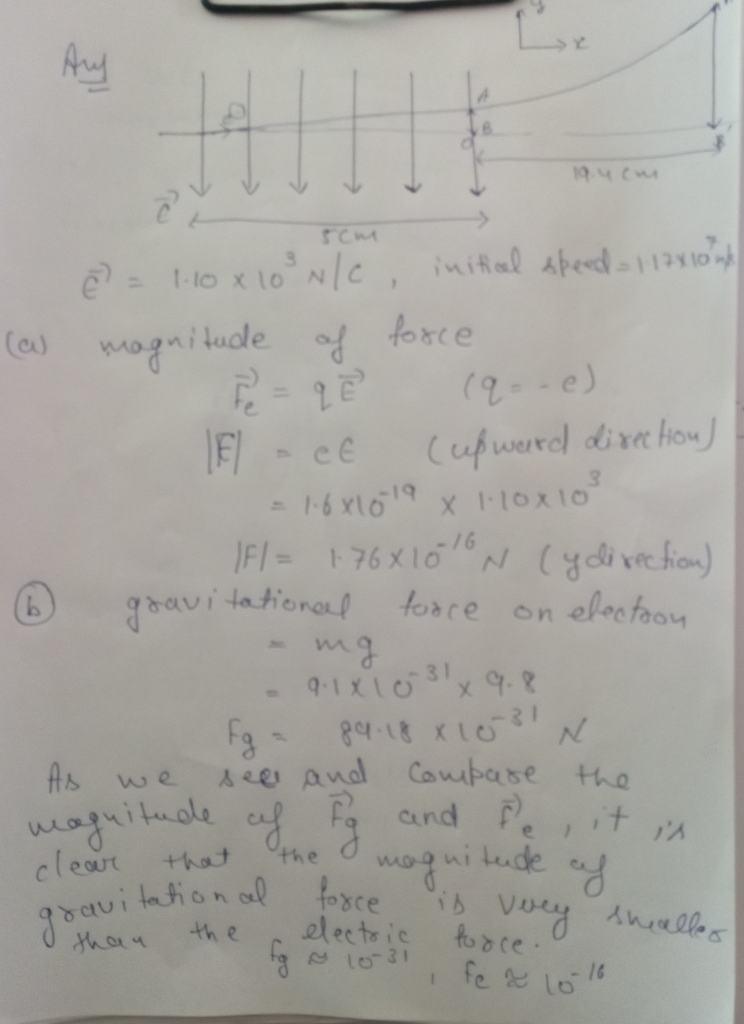

A beam of electrons is shot into a uniform downward electric field of magnitude 1.10 103 N/C. The electrons have an initial velocity of 1.11 107 m/s, directed horizontally. The field acts over a small region, 5.00 cm in the horizontal direction. (a) Find the magnitude and direction of the electric force exerted on each electron. magnitude 1.76e-16 N Correct: Your answer is correct. direction Correct: Your answer is correct. (b) How does the gravitational force on an electron compare with the electric force? The gravitational force is much smaller than the electric force. The gravitational force is much bigger than the electric force. Correct: Your answer is correct. (c) How far has each electron moved in the vertical direction by the time it has emerged from the field? (d) What is the electron's vertical component of velocity as it emerges from the field? (Up is the positive y-direction.) (e) The electrons move an additional 19.4 cm after leaving the field. Find the total vertical distance that they have been deflected by the field.

Expert Solution

genius_generous answered 1 hour ago
