Question

In: Physics

A beam of electrons is shot into a uniform downward electric field of magnitude 1.11x10^3 N/C....

A beam of electrons is shot into a uniform downward electric field of magnitude 1.11x10^3 N/C. The electrons have an initial velocity of 1.02x10^7 m/s, directed horizontally. The field acts over a small region, 5.00 cm in the horizontal direction.

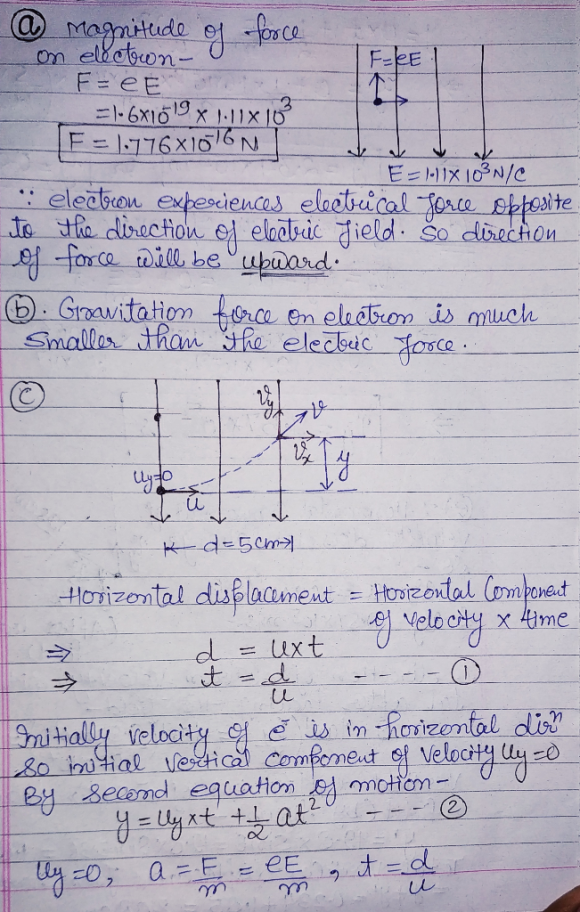

(a)Find the magnitude and direction of the electric force exerted on each electron.
-magnitude:
-direction:

(b) How does the gravitational force on an electron compare with the electric force?

   -The gravitational force is much smaller than the electric force. OR -The gravitational force is much larger than the electric force.

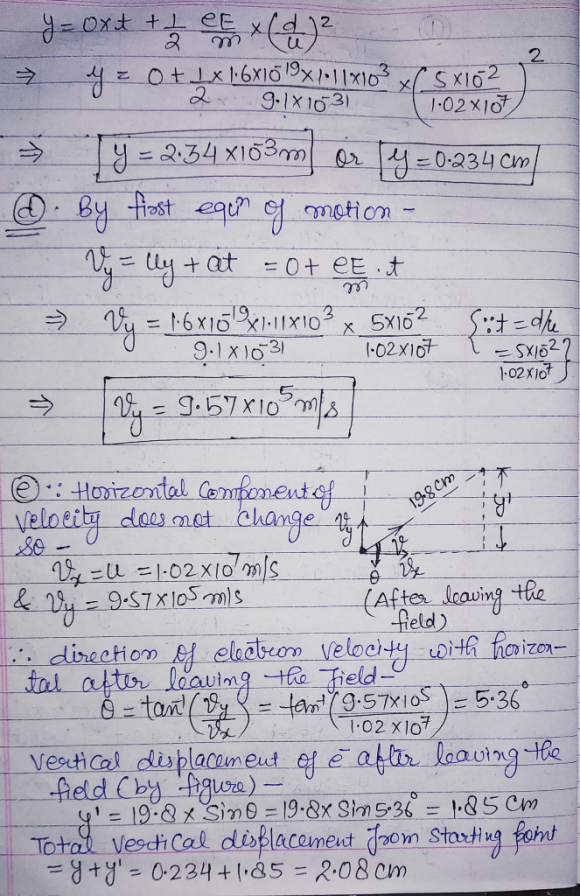

(c) How far has each electron moved in the vertical direction by the time it has emerged from the field?

(d) What is the electron's vertical component of velocity as it emerges from the field? (Up is the positive y-direction.)

(e) The electrons move an additional 19.8 cm after leaving the field. Find the total vertical distance that they have been deflected by the field.

Solutions

Expert Solution


Related Solutions

A uniform electric field of magnitude 40 N/C is directed downward.
A uniform electric field of magnitude 40 N/C is directed downward. What are the magnitude and the direction of the force on a + 4C charge placed in this electric field? 160 N directed upward 160 N directed downward 10 N directed downward 0.1 N directed downward
A proton is acted on by a uniform electric field of magnitude 313 N/C pointing in...
A proton is acted on by a uniform electric field of magnitude 313 N/C pointing in the negative z-direction. The particle is initially at rest. (a) In what direction will the charge move? (b) Determine the work done by the electric field when the particle has moved through a distance of 3.75 cm from its initial position. ____________J (c) Determine the change in electric potential energy of the charged particle. ___________J (d) Determine the speed of the charged particle. _______m/s
A uniform electric field with a magnitude of 6 × 10^6 N/C is applied to a...
A uniform electric field with a magnitude of 6 × 10^6 N/C is applied to a cube of edge length 0.1 m as seen in Fig 22-2 above. If the direction of the E - field is along the +x-axis, what is the electric flux passing through the shaded face of the cube?
The electric field near the surface of Earth points downward and has a magnitude of 130 N/C.
The electric field near the surface of Earth points downward and has a magnitude of 130 N/C. (a) Compare the upward electric force on an electron with the downward gravitational force. (b) What magnitude charge should be placed on a penny of mass 2 g so that the electric force balances the weight of the penny near Earth?s surface? C
The electric field near Earth's surface points downward and has a magnitude of approximately 104 N/C....
The electric field near Earth's surface points downward and has a magnitude of approximately 104 N/C. What is the force (Fe) on an electron due to this electric field? magnitude= ?? Find the ratio of the magnitude of this force to the magnitude of the gravitational force (Fg) on the electron.. Fe/ Fg=?
The electric field between two parallel plates is uniform, with magnitude 576 N/C. A proton is...
The electric field between two parallel plates is uniform, with magnitude 576 N/C. A proton is held stationary at the positive plate, and an electron is held stationary at the negative plate. The plate separation is 4.06 cm. At the same moment, both particles are released. (a) Calculate the distance (in cm) from the positive plate at which the two pass each other. Ignore the electrical attraction between the proton and electron. _______cm (b) Repeat part (a) for a sodium...
A uniform electric field between two parallel plates has a magnitude of 20 N/C and directed...
A uniform electric field between two parallel plates has a magnitude of 20 N/C and directed downward. Draw the E-field indicating +/- signs which plate is positive and which plate is negative?
5. A proton and an electron are in a uniform electric field with magnitude 45 V/C....
5. A proton and an electron are in a uniform electric field with magnitude 45 V/C. Which particle has the larger magnitude acceleration, and what is the magnitude of the acceleration? (e = 1.6×10−19 C, mp = 1.67×10−27 kg, me = 9.11×10−31 kg) A. the electron, 7.9×1012 m/s2 B. the proton, 4.3×1013 m/s2 C. the proton, 4.3×109 m/s2 D. the electron, 7.9×108 m/s2 E. the electron, 7.9×1010 m/s2 6. A +2q point charge is located at the origin (x =...
What is the magnitude and direction of an electric field if it exerts a downward force...
What is the magnitude and direction of an electric field if it exerts a downward force of 10-6N on a charge of -5μC? Could you please explain how to do this question? Thank you
Using the symmetry of the arrangement, calculate the magnitude of the electric field in N/C at...
Using the symmetry of the arrangement, calculate the magnitude of the electric field in N/C at the center of the square given that qa = qb = −1.00 μC and qc = qd = + 4.93 μCq. Assume that the square is 5 m on a side.
