Question

In: Physics

Find the electric field at the location of qa in the figure below, given that qb...

Find the electric field at the location of qa in the figure below, given that qb = qc = qd = +1.85 nC, q = ?1.00 nC, and the square is 11.5 cm on a side. (The +x axis is directed to the right.)

magnitude

N/C

direction

Solutions

Expert Solution

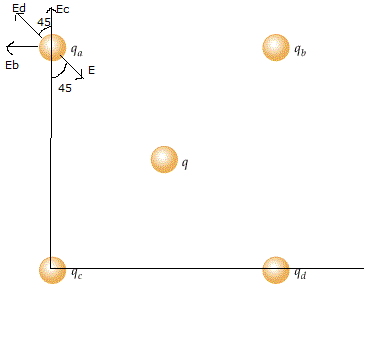

let a be the side of the squre a = 0.115 m

distance of qd from qa = rd = sqrt(a^2+a^2) = sqrt(2)*a m

distance of q from qa = r = rd/2 = a/sqrt(2) m


Ec = Ecy = +k*qc/a^2 = (9*10^9*1.85*10^-9)/(0.115^2) = +1258.97 N/C

Eb = Eax = -k*qb/a^2 = -(9*10^9*1.85*10^-9)/(0.115^2) =

-1258.97 N/C


Edx = -k*qd*cos45/rd^2 = (9*10^9*1.85*10^-9*cos45)/
(2*0.115^2) = -445.12N/C

Edy = +k*qd*sin45/rd^2 = (9*10^9*1.85*10^-9*sin45)/

(2*0.115^2) = -445.12N/C

Eq due to q


Eqx = +k*q*cos45/r^2 = (9*10^9*1*10^-9*cos45*2)/

(0.115^2) = +962.42 N/C

Eqy = -k*q*sin45/r^2 = (9*10^9*1*10^-9*sin45*2)/

(0.115^2) = -962.42 N/C

net x component

Ex = Ebx + Ecx + Edx + Eqx


Ex = -1258.97 + 0 - 445.12 + 962.42


Ex = -741.67 N/C

net y component


Ey = Eby + Ecy + Edy + Eqy


Ey = 0 + 1258.97 + 445.12 - 962.42


Ey = 741.67 N/C


magnitude E = sqrt(Ex^2+Ey^2) = 1048.88 N/C <-------answer

direction = tan^-1(Ey/Ex) = tan^-1(1) = 45
