Sweetland Sugar &Co. produces cane sugar in its three plants in Tampa, Mobile, and Houston It has four distribution centers in Charlotte, Kansas City, Indianapolis, and Flagstaff. These distribution centers serve five major markets, New York, Chicago, St. Louis, Las Vegas, and Seattle. The capacities of each plant, demands of each market and the transportation costs of sending a ton sugar from a plant to distribution center and from a distribution center to a market are given in the tables below. The company seeks to develop a plan to minimize transportation costs.
a) Determine the objective function and constraints.
b) Find the minimum cost and the amounts of sugar sent from each plant to distribution centers and from each distribution center to markets using Excel Solver.
From Plants |
To Distribution Center |
Supply (Tons) |
|||
Charlotte |
Kansas City |
Indianapolis |
Flagstaff |
||
Tampa |
$13 |
$17 |
$18 |
$25 |
20,000 |
Mobile |
$16 |
$15 |
$15 |
$22 |
18,000 |
Houston |
$18 |
$13 |
$17 |
$18 |
25,000 |
From Distribution Centers |
To Markets |
||||
New York |
Chicago |
St. Louis |
Las Vegas |
Seattle |
|
Charlotte |
$16 |
$13 |
$12 |
$22 |
$25 |
Kansas City |
$20 |
$11 |
$6 |
$15 |
$18 |
Indianapolis |
$10 |
$8 |
$8 |
$17 |
$19 |
Flagstaff |
$25 |
$18 |
$15 |
$8 |
$15 |
Demand (tons) |
15,000 |
12,000 |
9,000 |
14,000 |
13,000 |
(a): Let the decision variables be as follows:
From/To | Charlotte | Kansas City | Indianapolis | Flagstaff |
Tampa | t1 | t2 | t3 | t4 |
Mobile | m1 | m2 | m3 | m4 |
Houston | h1 | h2 | h3 | h4 |
From/To | New York | Chicago | St. Louis | Las Vegas | Seattle |
Charlotte | c1 | c2 | c3 | c4 | c5 |
Kansas City | k1 | k2 | k3 | k4 | k5 |
Indianapolis | i1 | i2 | i3 | i4 | i5 |
Flagstaff | f1 | f2 | f3 | f4 | f5 |
Objective function = 13t1+17t2+18t3+25t4+16m1+15m2+15m3+22m4+18h1+13h2+17h3+18h4+16c1+13c2+12c3+22c4+25c5+20k1+11k2+6k3+15k4+18k5+10i1+8i2+8i3+17i4+19i5+25f1+18f2+15f3+8f4+15f5. This is the totall cost and has to be minimized:
Constraints: The 1st 3 constraints are with regards to the supply capacity of each plant:
(1): t1+t2+t3+t4<=20,000
(2): m1+m2+m3+m4<=18,000
(3): h1+h2+h3+h4<=25,000
The next 5 constraints are with regards to demand at each market:
(4): c1+k1+i1+f1 = 15,000
(5): c2+k2+i2+f2 = 12,000
(6): c3+k3+i3+f3 = 9,000
(7): c4+k4+i4+f4 = 14,000
(8): c5+k5+i5+f5 = 13,000
The next set of constraints shows that amount received by distribution center from all plants should be the same as amount distributed by it to all markets.
(9): t1+m1+h1 = c1+c2+c3+c4+c5
(10): t2+m2+h2 = k1+k2+k3+k4+k5
(11): t3+m3+h3 = i1+i2+i3+i4+i5
(12): t4+m4+h4 = f1+f2+f3+f4+f5
Lastly all variables >=0 (i.e. non-negativity) and should be integers.
(b): Using excel solver the following solution is obtained:
Minimized cost = $1,660,000
Quantity from plants to distribution centres:
From/To | Charlotte | Kansas City | Indianapolis | Flagstaff | Total |
Tampa | - | 11,000 | 9,000 | - | 20,000 |
Mobile | - | - | 18,000 | - | 18,000 |
Houston | - | 11,000 | - | 14,000 | 25,000 |
Total | - | 22,000 | 27,000 | 14,000 |
Quantity from distribution centres to markets:
From/To | New York | Chicago | St. Louis | Las Vegas | Seattle | Total |
Charlotte | - | - | - | - | - | - |
Kansas City | - | - | 9,000 | - | 13,000 | 22,000 |
Indianapolis | 15,000 | 12,000 | - | - | - | 27,000 |
Flagstaff | - | - | - | 14,000 | - | 14,000 |
Total | 15,000 | 12,000 | 9,000 | 14,000 | 13,000 |

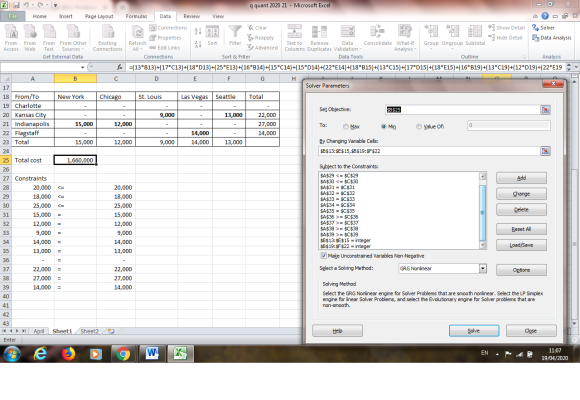

Screenshots (two) of excel solver are given below:
