Question

In: Electrical Engineering

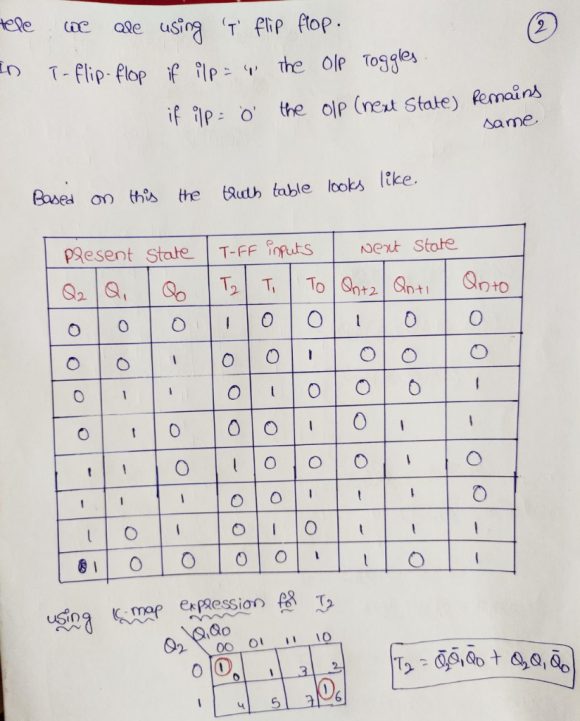

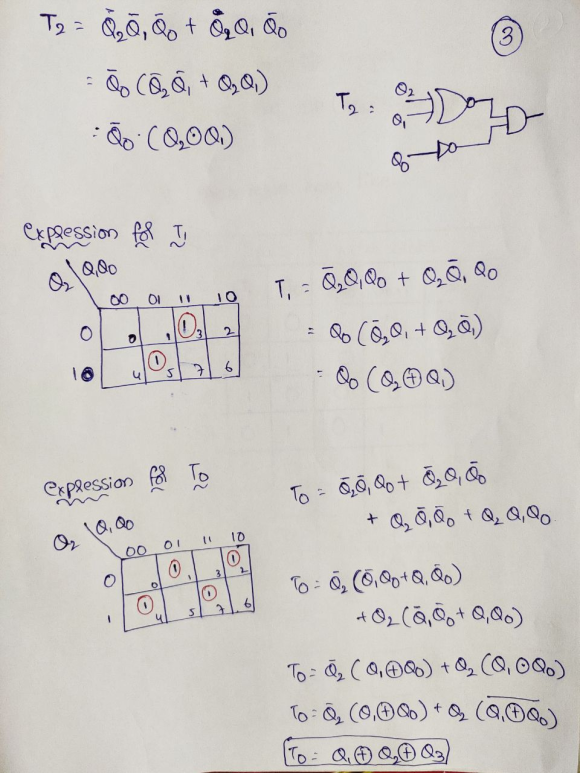

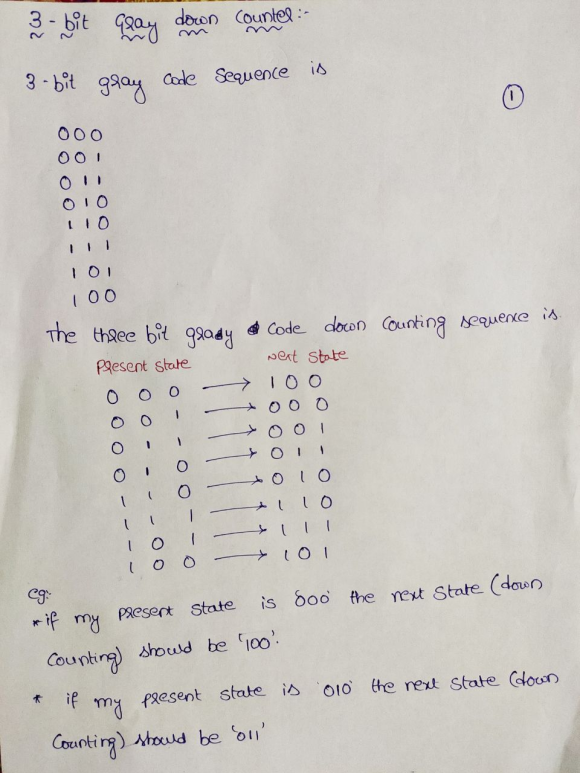

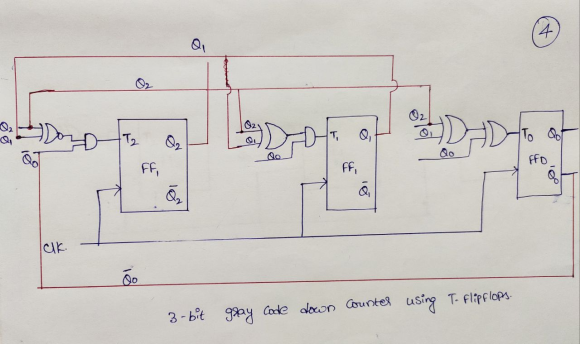

Design a 3 bit binary GRAY DOWN counter using T-FF

Design a 3 bit binary GRAY DOWN counter using T-FF

Solutions

Expert Solution
