Question

In: Physics

3.   Resistors and capacitors are not marked with their exact values, but only approximate values with...

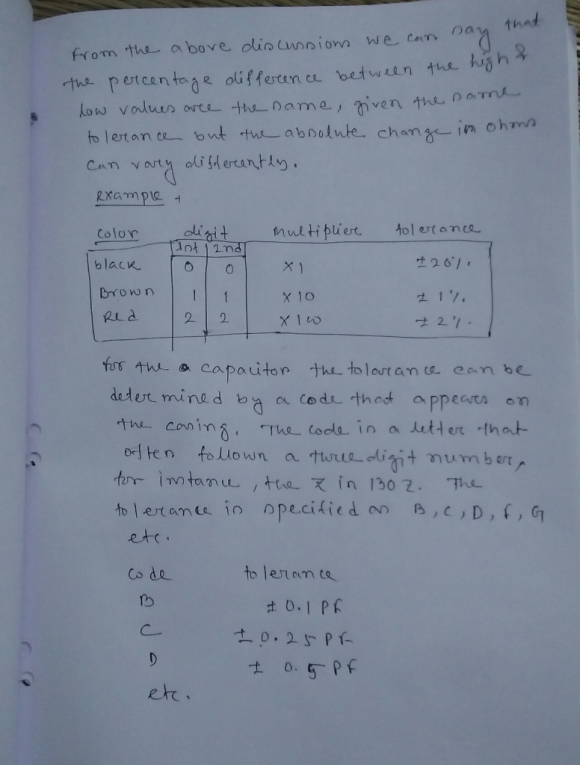

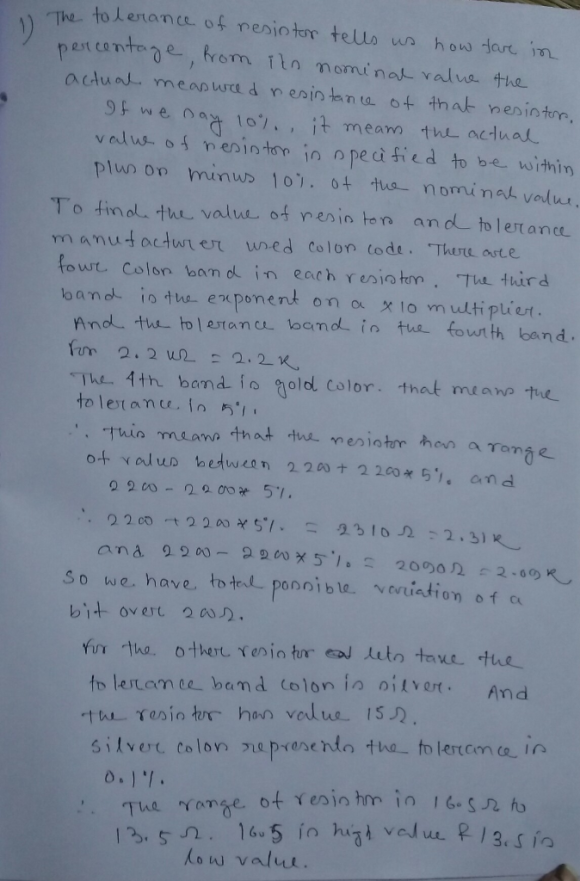

3.   Resistors and capacitors are not marked with their exact values, but only approximate values with a tolerance. Determine the tolerance marked on the resistors and capacitors you are using. If there is a discrepancy between the two quantities compared in Question 2, can the tolerance values explain the difference?

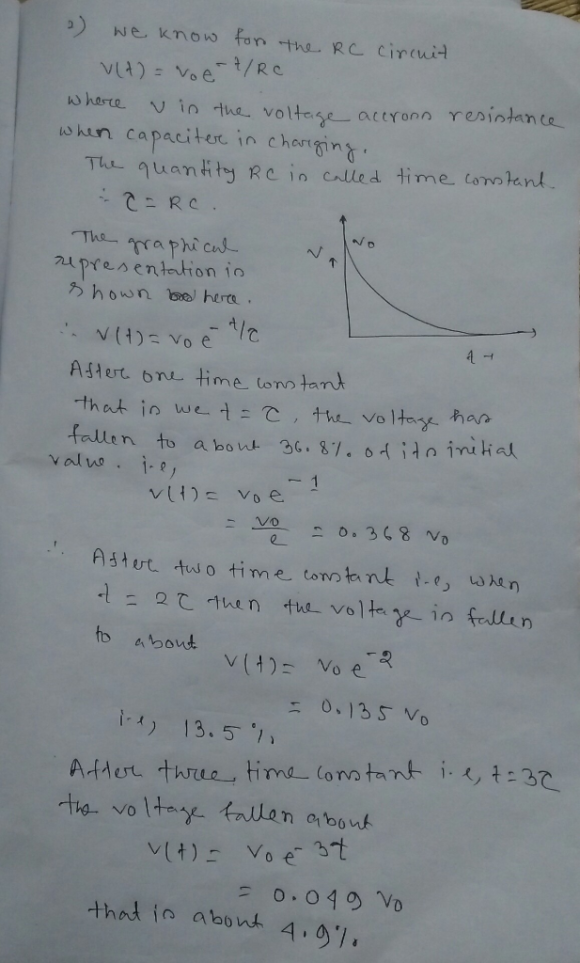

7.What fraction of the initial potential remains after one time constant has passed? After two time constants? Three?

Solutions

Expert Solution

you do not upload the question 2 which is mentioned in your question

genius_generous answered 7 months ago
