A long solenoid with 1.35 x 103 turns per meter and radius 2.00 cm carries an oscillating current I = 3.00 sin 80πt
A long solenoid with 1.35 x 103 turns per meter and radius 2.00 cm carries an oscillating current I = 3.00 sin 80πt, where I is in amperes and t is in seconds.
(a) What is the electric field induced at a radius r = 1.00 cm from the axis of the solenoid? (Use the following as necessary: t. Let E be measured in millivolts/meter and t be measured in seconds.)
(b) What is the direction of this electric field when the current is increasing counterclockwise in the solenoid?

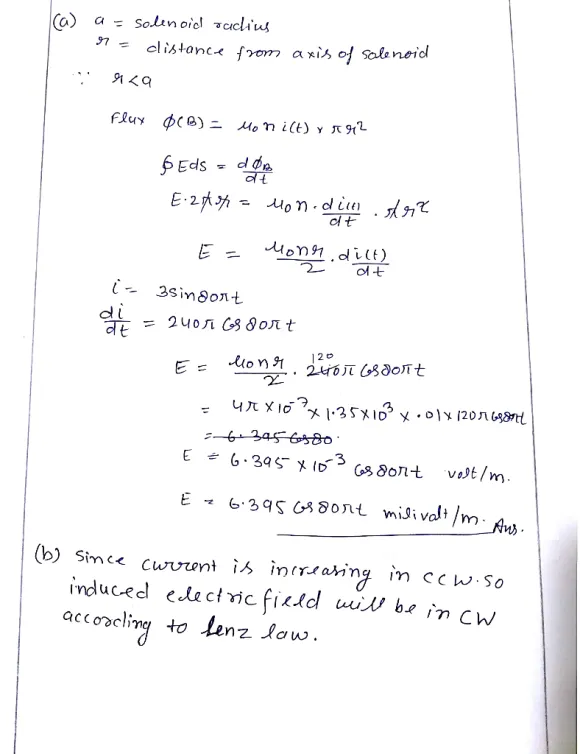

Solutions
genius_generous answered 2 years agoRelated Solutions
A long solenoid with 1.65 103 turns per meter and radius 2.00 cm carries an oscillating...
A long solenoid with 1.65 103 turns per meter and radius 2.00 cm carries an oscillating current I = 7.00 sin 120?t, where I is in amperes and t is in seconds.
(a) What is the electric field induced at a radius r = 1.00 cm from the axis of the solenoid? (Use the following as necessary: t. Let E be measured in millivolts/meter and t be measured in seconds.)
A long solenoid with 1.65 103 turns per meter and radius 2.00 cm carries an oscillating...
A long solenoid with 1.65 103 turns per meter and radius 2.00 cm
carries an oscillating current I = 6.00 sin 120πt, where I is in
amperes and t is in seconds. (a) What is the electric field induced
at a radius r = 1.00 cm from the axis of the solenoid? (Use the
following as necessary: t. Let E be measured in millivolts/meter
and t be measured in seconds.) E =
(b) What is the direction of this electric...
A long, thin solenoid has 600 turns per meter and radius 2.6 cm. The current in...
A long, thin solenoid has 600 turns per meter and radius 2.6 cm.
The
current in the solenoid is increasing at a uniform rate
dI/dt. The induced
electric eld at a point near the center of the solenoid and 3.80 cm
from
its axis is 8.00 10 -5 V/m. Calculate
dI/dt
A long, thin solenoid has 870 turns per meter and radius 2.70 cm . The current...
A long, thin solenoid has 870 turns per meter and radius 2.70 cm
. The current in the solenoid is increasing at a uniform rate of
64.0 A/s
What is the magnitude of the induced electric field at a point
0.520 cm
from the axis of the solenoid? (in V/m)
What is the magnitude of the induced electric field at a point
1.30 cm
from the axis of the solenoid? (in V/m)
A long, thin solenoid has 870 turns per meter and radius 3.00cm . The current in...
A long, thin solenoid has 870 turns per meter and radius 3.00cm
. The current in the solenoid is increasing at a uniform rate of
65.0A/s .
A)What is the magnitude of the induced electric field at a point
0.550cm from the axis of the solenoid?
B)What is the magnitude of the
induced electric field at a point 1.00cm from the axis of the
solenoid?
A long solenoid has 110 turns/cm and carries current i. An electron moves within the solenoid...
A long solenoid has 110 turns/cm and carries current i. An
electron moves within the solenoid in a circle of radius 2.54 cm
perpendicular to the solenoid axis. The speed of the electron is
0.0635c (c = speed of light, equal to 2.998 × 108 m/s). Find the
current i in the solenoid.
a) Assume that there is a long ideal solenoid with 120 turns/cm. It carries a current...
a) Assume that there is a long ideal solenoid with 120 turns/cm.
It carries a current i= 2 A and it has a diameter 2 cm and a length
5 m. Find the uniform magnetic field inside the solenoid.
c) Now, construct an RL circuit using an ideal battery
that has potential difference 5 V, one resistor with R = 2 Ω and
the solenoid that has same shape with one mentioned at part (a).
Wait very long time and...
1. An infinitely long solenoid of radius R carries n turns per unit length and current...
1. An infinitely long solenoid of radius R carries n turns per
unit length and current I and is oriented such that its axis is
along the z direction. What direction must a particle of charge q
be moving such that it feels zero force (a) inside the solenoid (b)
outside the solenoid
2. Find the maximum magnetic flux through a circular coil of
radius L such that L < R placed inside the solenoid of the
previous problem.
A coil of 15 turns and radius 10.0 cm surrounds a long solenoid of radius 2.10...
A coil of 15 turns and radius 10.0 cm surrounds a long solenoid
of radius 2.10 cm and 1.00 103 turns/meter
(see figure below). The current in the solenoid changes as
I = 4.00 sin 120 t, where I is in
amperes and t is in seconds. Find the induced emf (in
volts) in the 15-turn coil as a function of time.
= ?
2. A solenoid that is 95 cm long and radius of 2 em and winding of 1200 turns
2. A solenoid that is 95 cm long and radius of 2 em and winding of 1200 turns; it carries a current of 3.6 A. Calculate the magnitude of the magnetic field inside the solenoid.3. A solenoid 1.3 m long and 2.6 cm in diameter carries a current of 18 A. The magnetic field inside the solenoid is 23mT. Find the length of the solenoid.
