(1 point) An 4-kg mass is attached to a spring hanging from the ceiling and allowed...

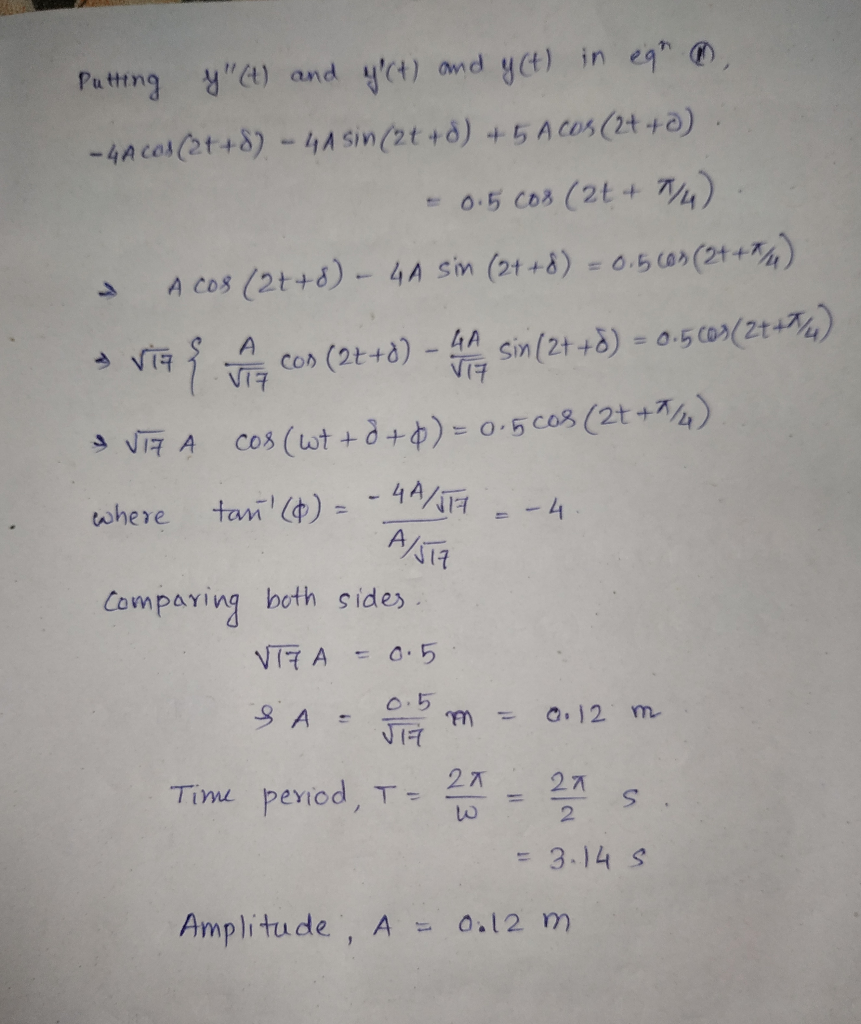

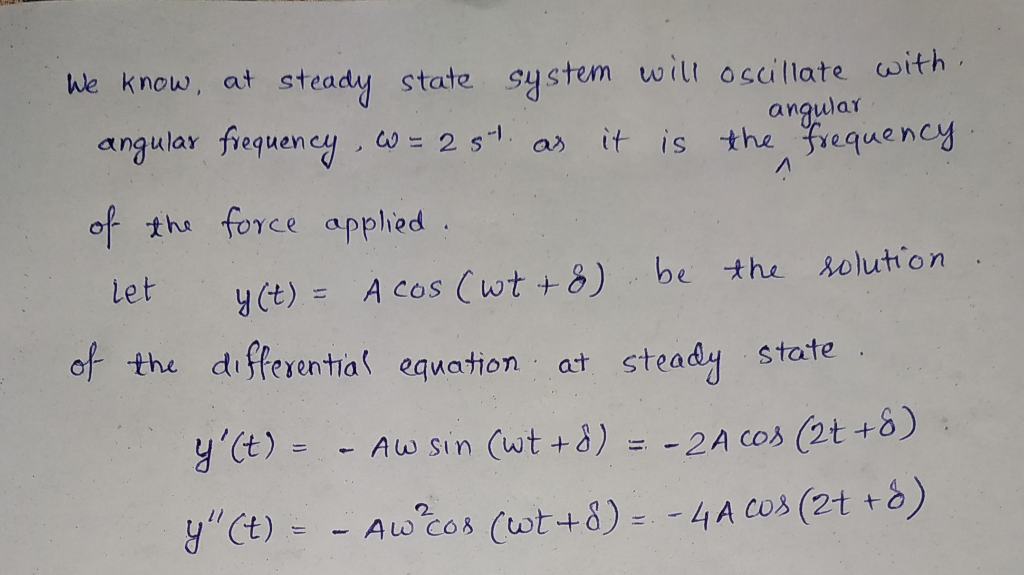

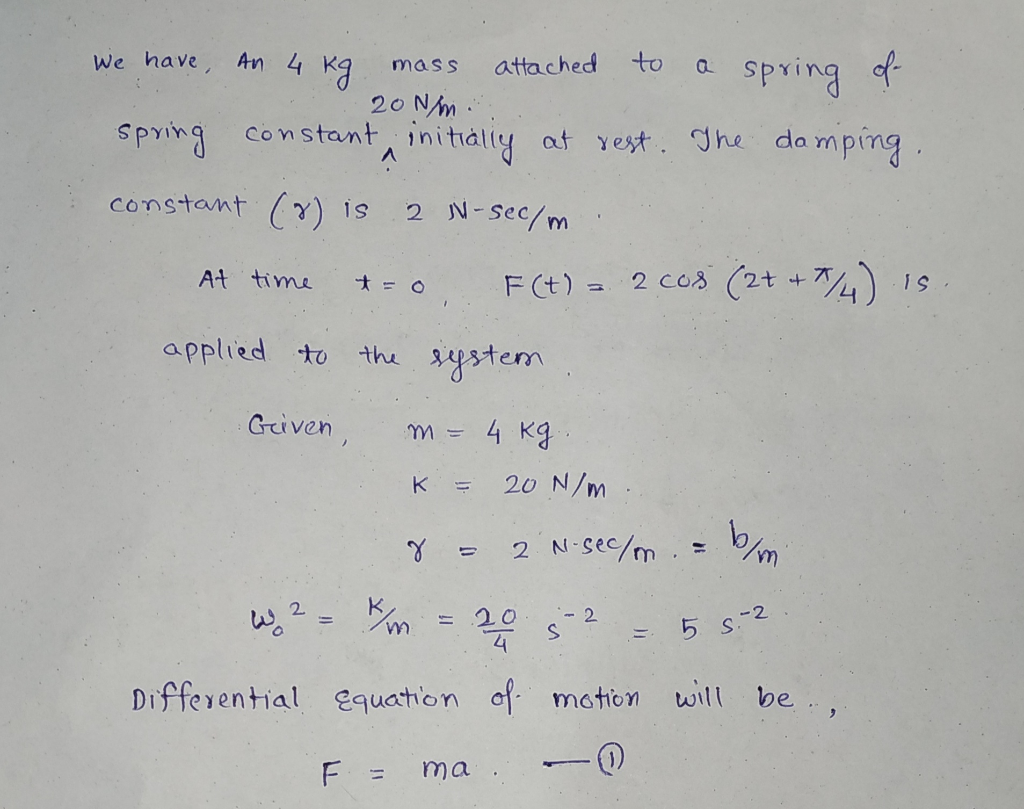

(1 point) An 4-kg mass is attached to a spring hanging from the ceiling and allowed to come to rest. Assume that the spring constant is 20 N/m and the damping constant is 2 N-sec/m. At time t=0t=0, an external force of F(t)=2cos(2t+π4)F(t)=2cos⁡(2t+π4) is applied to the system. Formulate the initial value problem describing the motion of the mass and determine the amplitude and period of the steady-state solution.

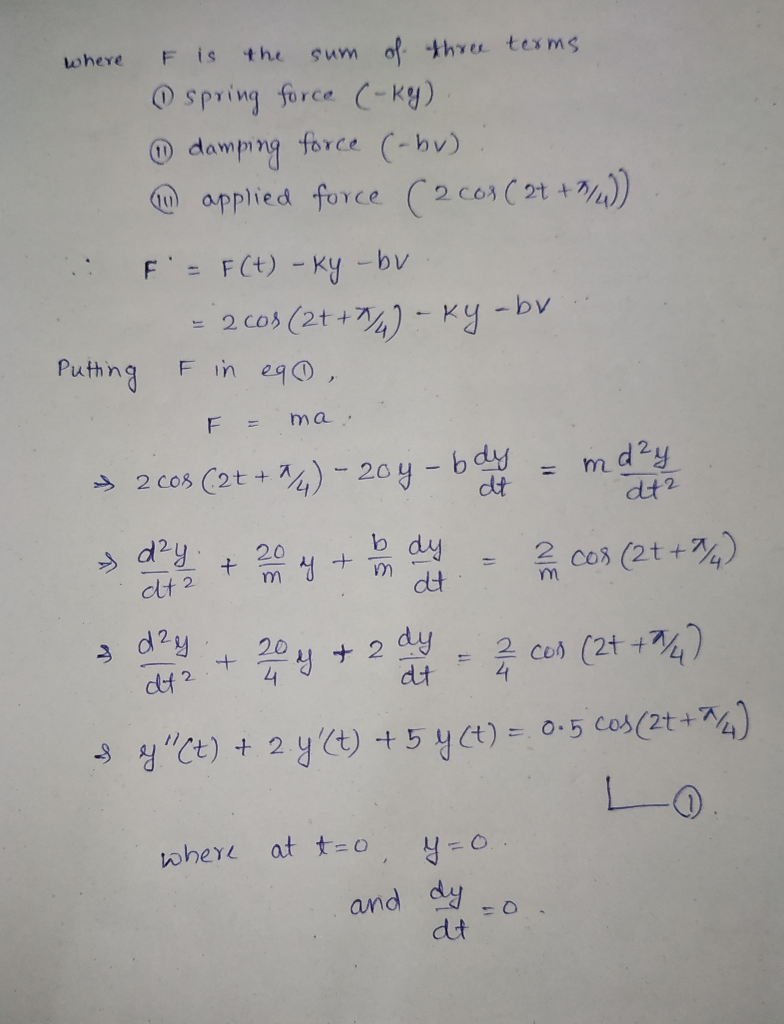

Let y(t)y(t) to denote the displacement, in meters, of the mass from its equilibrium position. Set up a differential equation that describes this system. (give your answer in terms of y,y′,y′′y,y′,y″).

Expert Solution

genius_generous answered 12 hours ago

An 7-kg mass is attached to a spring hanging from the ceiling and allowed to come...

An 7-kg mass is attached to a spring hanging from the ceiling and allowed to come to rest. Assume that the spring constant is 50 N/m and the damping constant is 4 N-sec/m At time t=0, an external force of 8sin(3t)cos(3t) is applied to the system. Determine the amplitude and frequency of the steady-state solution.

An ideal spring is in equilibrium, hanging from a ceiling with a 1 kg mass at...

An ideal spring is in equilibrium, hanging from a ceiling with a 1 kg mass at the end. At rest, the length of the hanging spring is 10 cm. Then, an additional 5 kg block is added to the spring, causing its length at rest to increase to 13 cm. The 5 kg block is then removed. Starting from rest, when the 5 kg block is removed, the spring begins to oscillate. What will the spring’s velocity be, the third...

A mass weighing 8 lb is attached to a spring hanging from the ceiling, and comes...

A mass weighing 8 lb is attached to a spring hanging from the ceiling, and comes to rest at its equilibrium position. The spring constant is 4 lb/ft and there is no damping. A. How far (in feet) does the mass stretch the spring from its natural length? L= B. What is the resonance frequency for the system? ω0= C. At time t=0 seconds, an external force F(t)=3cos(ω0t) is applied to the system (where ω0 is the resonance frequency from...

A 8.50 kg mass is attached to the end of a hanging spring and stretches it...

A 8.50 kg mass is attached to the end of a hanging spring and stretches it 28.0 cm. It is then pulled down an additional 12.0 cm and then let go. What is the maximum acceleration of the mass? At what position does this occur? What is the position and velocity of the mass 0.63 s after release?

An 8-pound weight is attached to a spring hanging from a ceiling. The weight stretches the...

An 8-pound weight is attached to a spring hanging from a ceiling. The weight stretches the spring 9.6 inches, coming to rest at its stretched equilibrium position. The weight is displaced 8 inches below this stretched equilibrium position, and at time t = 0 the mass is released. At the same instant, an external force of F(t)= 2cos(2t) pounds is applied to the system. The damping constant is 1 lb/(ft/sec). Find the function that gives the displacement of the mass...

1. A mass weighing 10 lbs. is attached to a spring suspended from the ceiling. The...

1. A mass weighing 10 lbs. is attached to a spring suspended from the ceiling. The mass will stretch the spring 6 inches. If the mass is pulled 5 inches below its equilibrium point and given an initial upward velocity of 0.3 ft./sec. and if damping forces are neglected, then what is the equation of motion of the mass? What is the amplitude of the motion? 2. A 980-newton force stretches a spring 0.4 meters. If a 200 kg mass...

A mass m = 1 kg is attached to a spring with constant k = 4...

A mass m = 1 kg is attached to a spring with constant k = 4 N/m and a dashpot with variable damping coefficient c. If the mass is to be pulled 5 m beyond its equilibrium (stretching the spring) and released with zero velocity, what value of c ensures that the mass will pass through the equilibrium position and compress the spring exactly 1 m before reversing direction? c =

A 2.7-kg block is hanging stationary from the end of a vertical spring that is attached...

A 2.7-kg block is hanging stationary from the end of a vertical spring that is attached to the ceiling. The elastic potential energy of the spring/mass system is 2.6 J. What is the elastic potential energy of the system when the 2.7-kg block is replaced by a 5.5-kg block?

A 1 3 -kg mass is attached to a spring with stiffness 4 N/m. The damping...

A 1 3 -kg mass is attached to a spring with stiffness 4 N/m. The damping constant for the system is 2 N-sec/m. The mass is displaced 1 2m to the left and given an initial velocity of 2 m/s to the right. (a) Determine the equation of the motion of mass and express it in the form A e αt sin(βt + φ) by finding the constants A, α, β and φ in radians. (b) Find the time t...

A string is tied to the ceiling and is attached to a 50 kg mass that...

A string is tied to the ceiling and is attached to a 50 kg mass that hangs down freely. The 1.5-m-long string has a mass of 3.7 grams. a. What is the speed of waves that exist on the string? b. What is the frequency of the fundamental (m=1) harmonic of standing waves on the string? c. What is the frequency of the 3rd (m=3) harmonic of standing waves on the string? d. How much mass would have to be...
