Question

In: Computer Science

Do the type-D and JK flip flops respond to the same clock edge? Explain how toggle...

Do the type-D and JK flip flops respond to the same clock edge?

Explain how toggle mode is the same as division by two.

What is the difference between a synchronous input (D, J, or K) and an asynchronous input (PR or CLR)?

*please no handwritten answers

Solutions

Expert Solution

1) Yes,D-type flip-flop can just like the JK flip-flop be converted to perform as a toggle flip-flop by connecting the Q output directly to the D-input with the toggling signal T being the clock input . Connecting the Q to the input creates negative feedback.

2) A Toggle flip-flop got its name from the fact that it has ability to toggle between two different states:

  • The toggle state
  • The memory state.
  • Since there are only two states, a T-type flip-flop is ideal for use in frequency division and binary counter design.
  • Each time we add another T-type flip-flop to the chain, the output clock frequency is halved or divided-by-2 again and so on, giving an output frequency of 2n where “n” is the number of flip-flops used in the sequence.
  • Hence toggle mode freq is same as divide by 2.

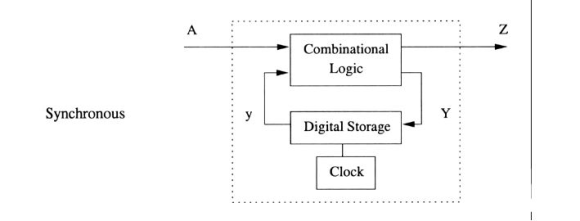

3) synchronous input

  • memory elements are clocked flip-flops, for instance D-type flip-flops, which change state when a transition of the clock signal occurs.
  • Due to the techniques used to design the flip-flops, the sensitivity of these elements to their inputs exists only in a short time interval.

asynchronous input

  • There is no "explicit" memory element to store the current state.
  • the state is stored in feedback loops that exist in the circuit, which is made exclusively with basic combinational gates.

Related Solutions

Describe the differences between SR latches, D latches, D flip flops, JK flip flops, and T...
Describe the differences between SR latches, D latches, D flip flops, JK flip flops, and T flip flops.
Attach a screenshot of Multisim circuit. flip flops: D, T and JK, connect the circuit and...
Attach a screenshot of Multisim circuit. flip flops: D, T and JK, connect the circuit and verify the characteristic tables.
Deserializer Explain how this circuit works. Note that these flip-flops are positive edge-triggered. What requirements of...
Deserializer Explain how this circuit works. Note that these flip-flops are positive edge-triggered. What requirements of setup time, hold time, and propagation delay must be met for this circuit to work? Imagine that clock had a slow rising edge (for example, it could be coming through a long path from a separate circuit board, or the clock driver might be undersized). Considering that, due to random mismatch, each flip-flop will trigger at a slightly different threshold, what behavior could result...
Design a Count-up Counter in Aiken code with following flip flops: a) D-FF (Active edge is...
Design a Count-up Counter in Aiken code with following flip flops: a) D-FF (Active edge is high to low) b) SR-FF (Active edge is high to low) c) Use of output of circuit in part (b) and minimum number of logic gates for getting the Countdown counter in Aiken code
I want to make 5 sec counter from 1000Hz input frequency using D or JK flip-flops....
I want to make 5 sec counter from 1000Hz input frequency using D or JK flip-flops. Anyone can help me with logic circuits and excitation table. Also, 5-bit parallel load register with flipflop.
What is a ripple counter? How is it constructed using D flip-flops?
What is a ripple counter? How is it constructed using D flip-flops?
Design a sequential circuit with 2 JK flip-flops A and B, and 2 inputs, E...
Design a sequential circuit with 2 JK flip-flops A and B, and 2 inputs, E and x. the design must adhere to the following requirements: If E = 0, the circuit remains in the same state regardless of the value of x.  When E = 1 and x = 1, the circuit goes through the state transitions from 00 to 01 to 10 to 11 back to 00 and repeats. When E = 1 and x = 0, the circuit goes through the...
Design a 5-bit binary counter using JK flip flops. Draw the flip-flop circuit diagram, the state...
Design a 5-bit binary counter using JK flip flops. Draw the flip-flop circuit diagram, the state graph, the timing diagram, the truth table (with clk pulse) and the state table (with present and next states).
1. (20pts) Design a 3-bit counter that counts from 0000 to 1111 using JK flip/flops. Do...
1. (20pts) Design a 3-bit counter that counts from 0000 to 1111 using JK flip/flops. Do not forget to include the carry to detect overflow.
A sequential circuit has two JK flip-flops A and B, two inputs r and y,...
A sequential circuit has two JK flip-flops A and B, two inputs r and y, and one output z. The flip-flop input equations and circuit output equation are \(\begin{aligned} J_{A} &=A^{\prime} x+B^{\prime} y & K_{A}=B x^{\prime} y^{\prime} \\ J_{B} &=A^{\prime} x y & K_{B}=A^{\prime}+B^{\prime} x \\ z &=A^{\prime} x^{\prime}+B^{\prime} y^{\prime} & \end{aligned}\)(a) Derive the simplified state equations for A and B. (b) Tabulate the state table. (c) Draw the state diagram of the çircuit.
