You have a 200 Ω resistor, a 0.400-H inductor. Suppose you take the resistor and inductor...

You have a 200 Ω resistor, a 0.400-H inductor. Suppose you take the resistor and inductor and make a series circuit with a voltage source that has voltage amplitude 30.0V and an angular frequency of 250 rad/s.

Parts A, B, C

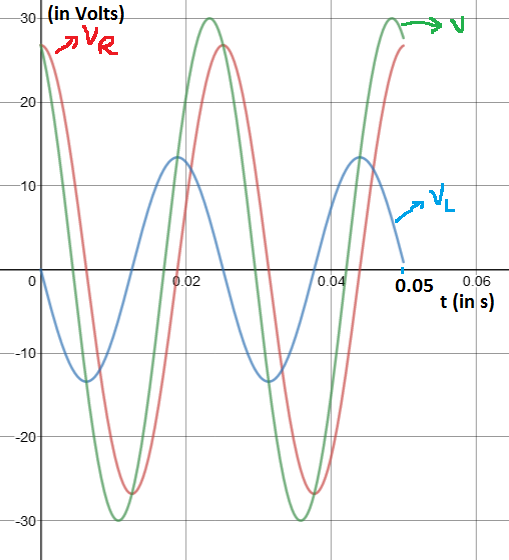

For this R-L circuit graph v, vR, and vL versus t for t = 0 to t = 50.0 ms. The current is given by i=Icosωt, so v=Vcos(ωt+ϕ).

Part D
What are v, vR, and vL at t = 20.0ms?
Enter your answers numerically separated by commas.

v,vR,vL v , v R , v L = ?, ?, ? V

Part F
What are v, vR, and vL at t = 40.0ms?
Enter your answers numerically separated by commas.

v,vR,vL v , v R , v L = ?, ?, ? V

Solutions

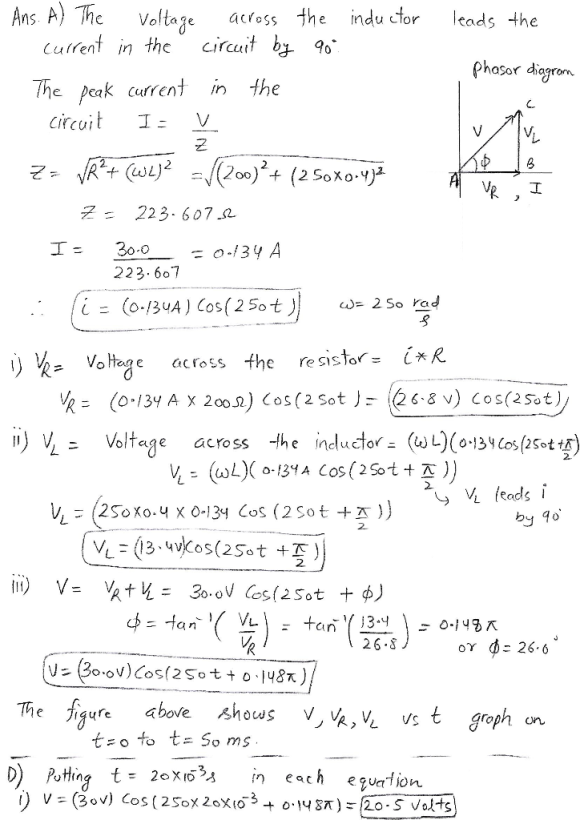

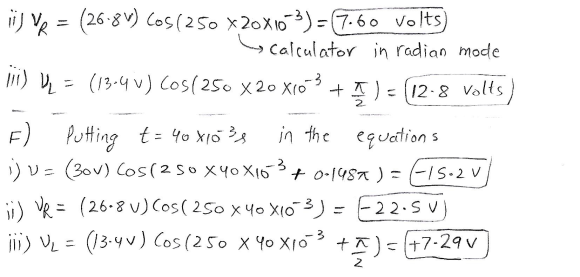

Expert Solution
