Question

In: Math

2. A pharmacy is using X bar and R charts to record the time it takes...

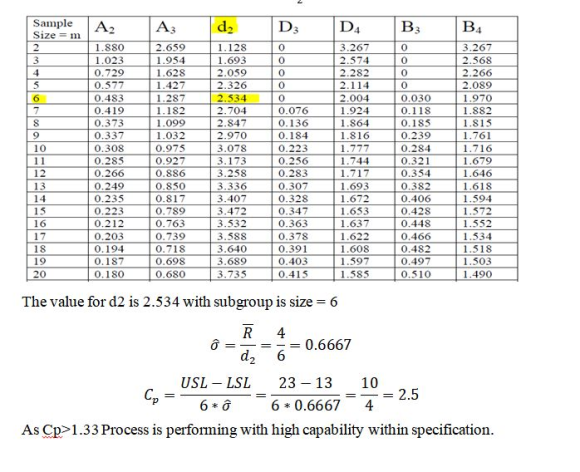

2. A pharmacy is using X bar and R charts to record the time it takes to fill a prescription after the customer has turned in or called in the prescription. Each day, the pharmacy records the times it takes to fill six prescriptions. During a 30-day period, the hospital obtained the following values: X double bar = 20 minutes; R bar = 4 minutes. The upper and lower specifications are 23 minutes and 13 minutes respectively. What is the value of Cp, to two decimal places?

Solutions

Expert Solution
