Question

In: Computer Science

IP adress is 195.20.1.0/24 Design the network as per the requirements below: - The company is composed...

IP adress is 195.20.1.0/24

Design the network as per the requirements below:

- The company is composed of 3 Branches, namely: Head Office (HO), Northern Governorate Branch (NGB) and Southern Governorate Branch (SGB).

- Each branch is represented by a router. Utilize 1841 routers.

- These branches are separated by WAN links where the HO is connected to both branches.

- HO has 2 LANs and NGB and SGB have 1 LAN each. Use 2960 switches.

- Utilize any Class C address and assign the appropriate IP addresses for the interfaces and end devices.

- Place 5 hosts in each LAN.

- Label your network.

Rubrics:

3 points – correct LAN design

4 points – correct LAN addresses

3 points – correct serial link addresses

TOTAL= 10 points

Configure the network by Static Routing.

3 points – correct Router LAN port configuration

2 points- correct Router WAN port configuration

3 points – correct end devices addresses

2 points – complete network convergence

TOTAL= 10 points

Expert Solution

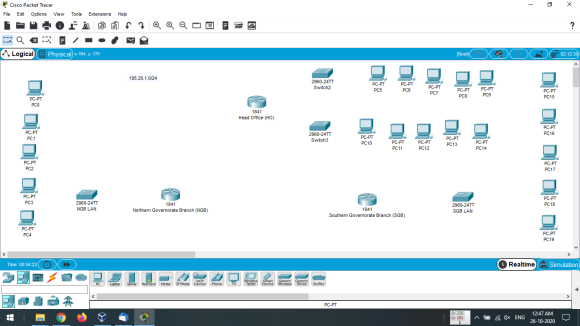

Initial design

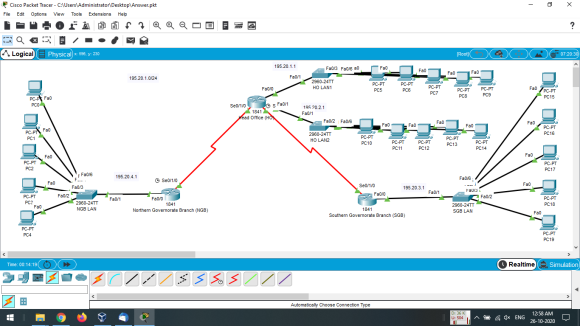

Final design

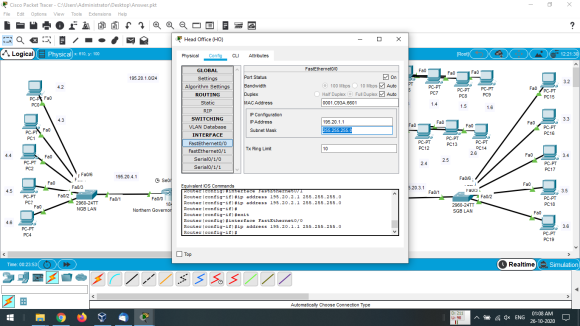

HO LAN 1 IP Configuration

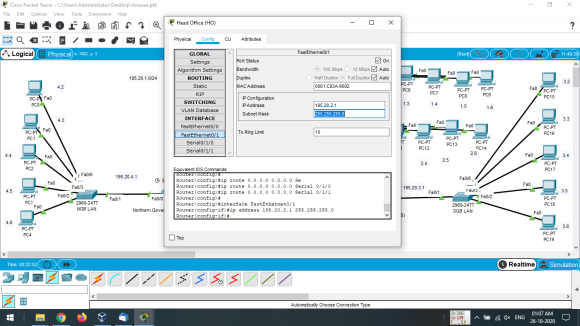

LAN 2

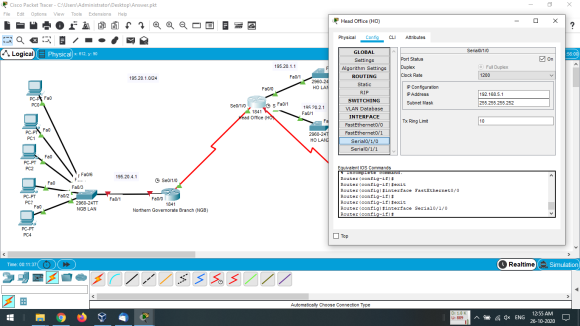

HO to NGB WAN IP connection

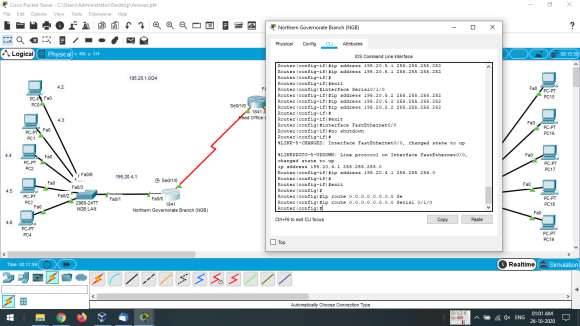

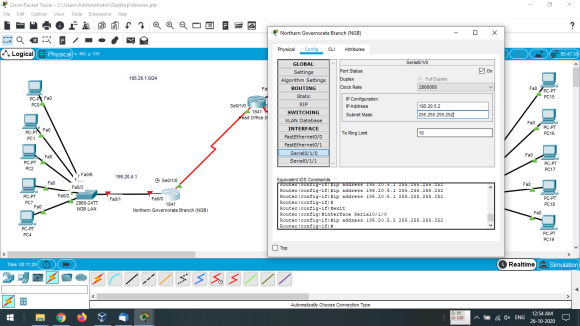

NGB Opposite site IP configuration

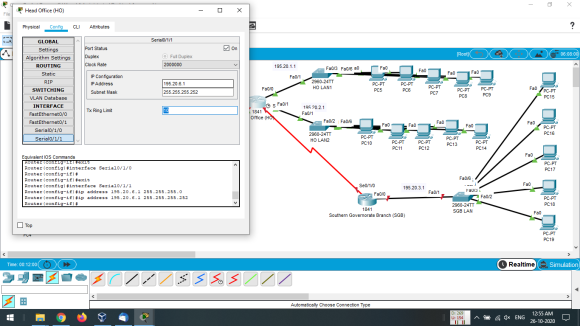

HO to SGB IP WAN

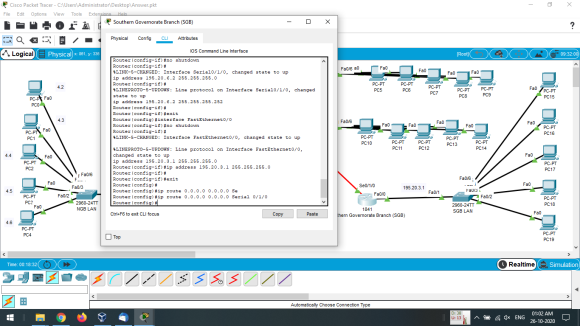

SGB to HO WAN

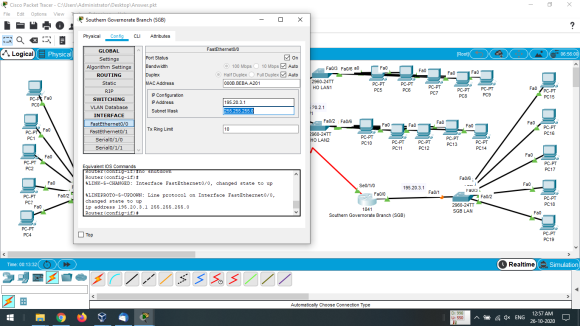

SGB LAN IP

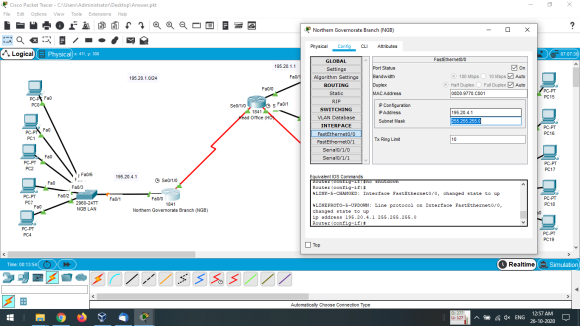

NGB LAN IP Configuration

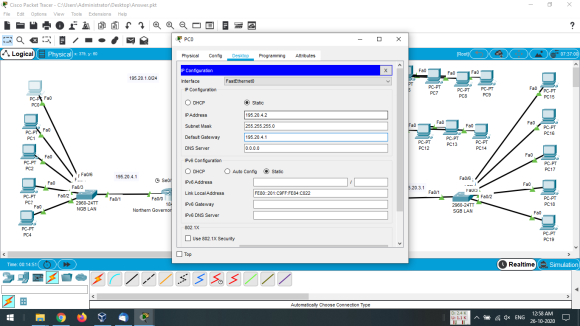

NGB LAN PC IP CONFIGURATION

configure in each pc as shown label beside PC IPs

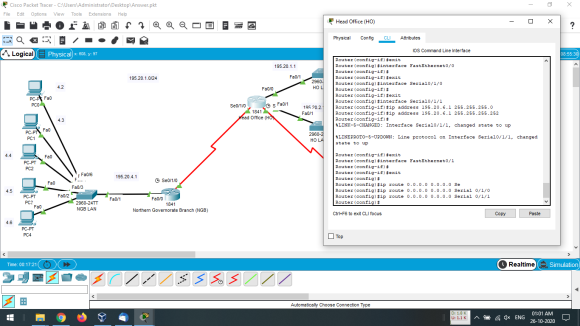

HO Router add a static route to communicate each pc

Add NGB route

Add SGB route

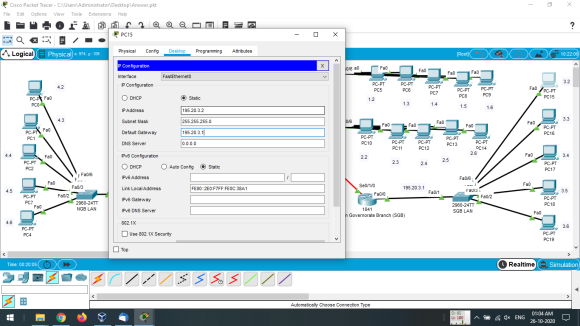

SGB PC IP configuration do all other PCs from your side, this I am setting for 1 for testing

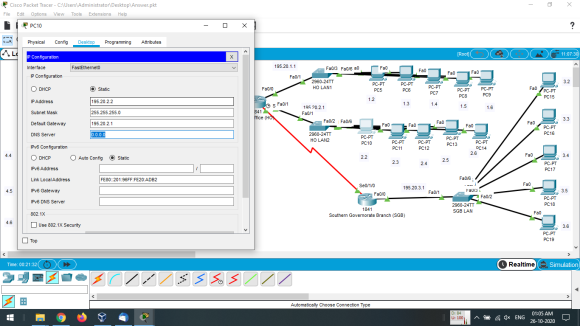

HO LAN 1 PC

HO LAN2 PC IP configuraiton

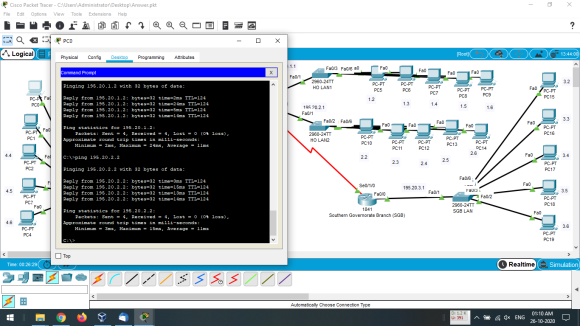

Ping from all networks

Thanks

venereology answered 4 months ago
