In Verilog Design a state machine, using the D flip-flop, that implements a 00 and 11...

In Verilog

Design a state machine, using the D flip-flop, that implements a 00 and 11 sequence detector. Your machine should output a 1 as soon as it detects two 0s or two 1s on its input, otherwise it outputs 0s.
Write a module that implements the machine and a test bench to test it.

Solutions

Expert Solution

Answer 1)

Verilog code in behavioral style is mentioned below. the code is written with the help of the state diagram.

module moore_00_11 (clk, rst, x, z);
input clk;
input rst;
input x;
output reg z;

parameter S0 = 2'b00,
S1 = 2'b01,
S2 = 2'b10,
S3 = 2'b11;

//Internal reg and wires decalarations
reg [2:0] cur_state, next_state;

// current state logic
always @(posedge clk)
begin
if(rst)
cur_state <= S0;
else
cur_state <= next_state;
end

// Logic for next state and output
always @(*)
begin
case(cur_state)
S0 : begin
z = 1'b0;
next_state = x ? S1 : S2;
end

S1 : begin
z = 1'b0;
next_state = x ? S3 : S0;
end

S2 : begin
z = 1'b1;
next_state = x ? S1 : S2;
end

S3 : begin
z = 1'b1;
next_state = x ? S3 : S0;
end
default : begin
z = 1'b0;
next_state = S0;
end
endcase
end

endmodule

Testbench for the verilog code

module testbench;
reg clk;
reg rst;
reg x;
wire z;

moore_00_11 u_fsm_moore (.clk(clk), .rst(rst), .x(x), .z(z));

always
#5 clk = !clk;

initial
begin
   clk = 1'b0;
   rst = 1'b1;
x = 1'b0;
repeat(2)
   @(negedge clk);
   rst = 1'b0;
x = 1'b1;
   @(negedge clk);
   x = 1'b0;
   @(negedge clk);
   x = 1'b1;
   @(negedge clk);
x = 1'b0;
repeat(3)
   @(negedge clk);
x = 1'b1;
   @(negedge clk);
x = 1'b0;
   @(negedge clk);
x = 1'b1;
   @(negedge clk);
x = 1'b0;
   @(negedge clk);
x = 1'b1;
repeat(5)
   @(negedge clk);

   $finish;
end

initial
begin
$recordfile("file1.trn");
$recordvars();
end

endmodule

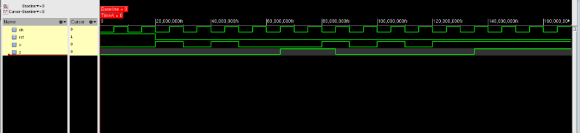

Waveform:-
