Question

In: Civil Engineering

A 455-mm diameter concrete pipe changes slope from 0.4% to 0.1% at a manhole. The roughness...

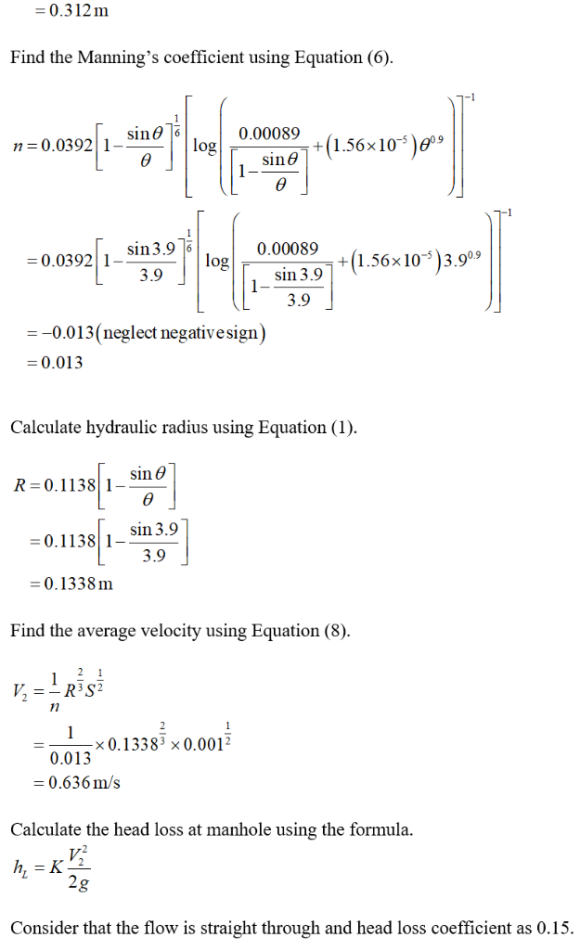

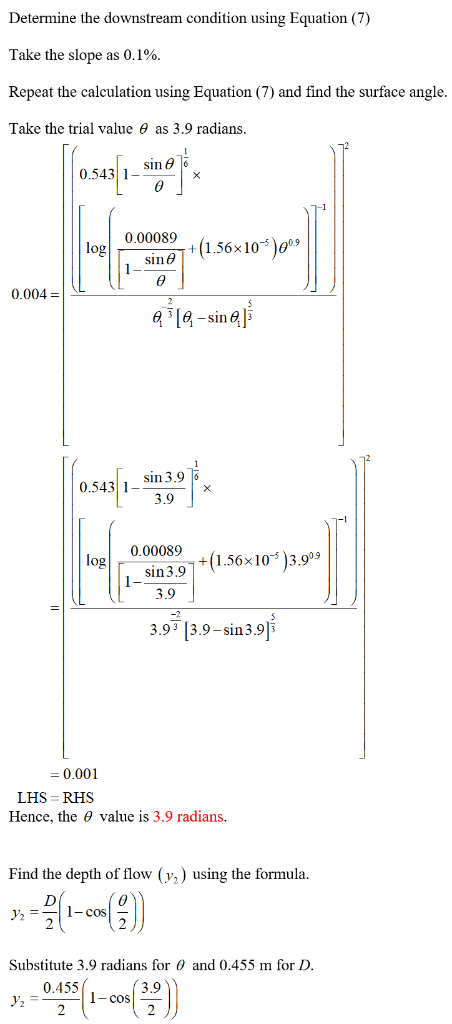

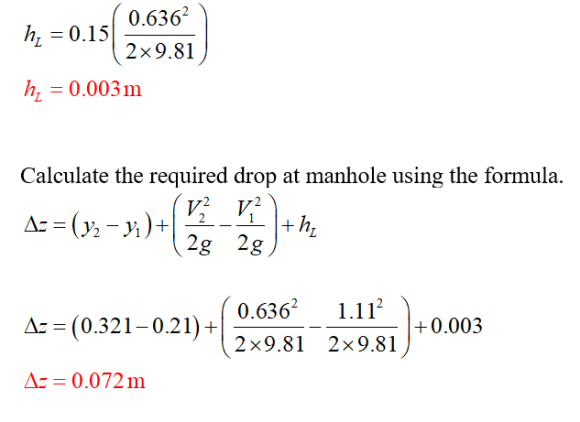

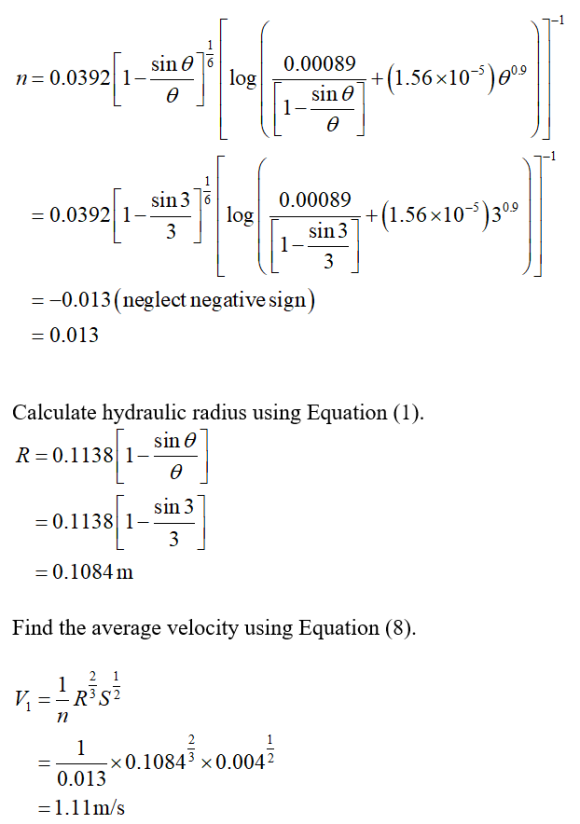

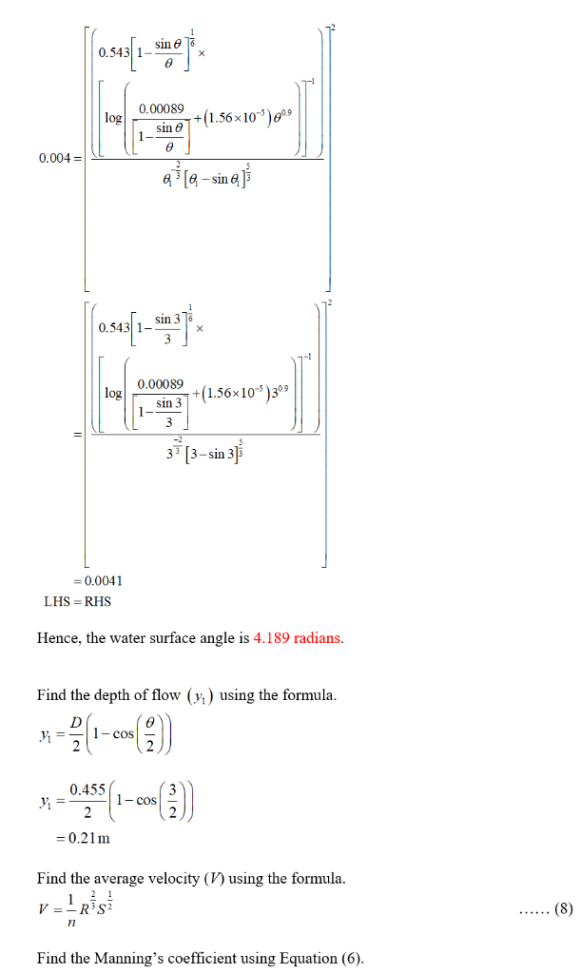

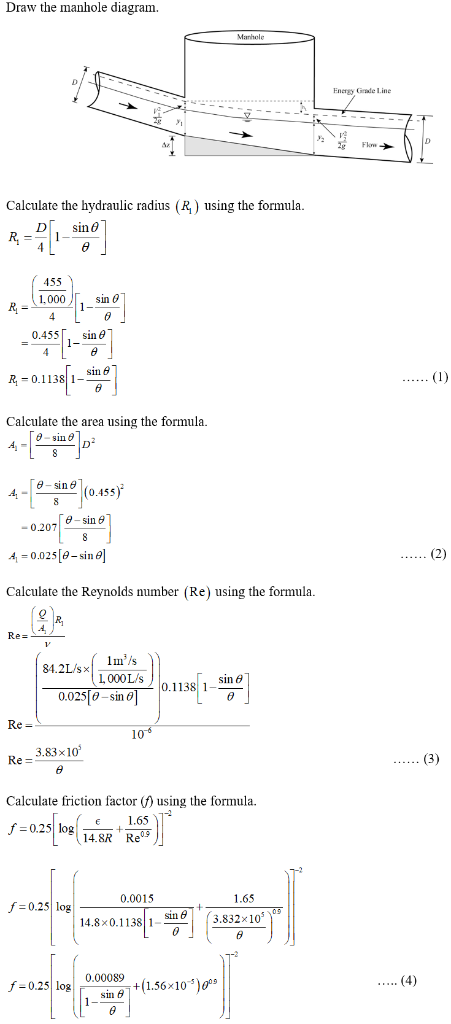

A 455-mm diameter concrete pipe changes slope from 0.4% to 0.1% at a manhole. The roughness height of the pipe is 1.5 mm and the design maximum flow rate is 84.2L/s. The inflow and outflow pipes are located directly opposite each other. Determine the required drop at the manhole.

Please shows steps for atleast one iteration.

Solutions

Expert Solution
