Question

In: Computer Science

Write the equations for carry-out bits for a 4-bit carry lookahead adder. Draw its diagram and...

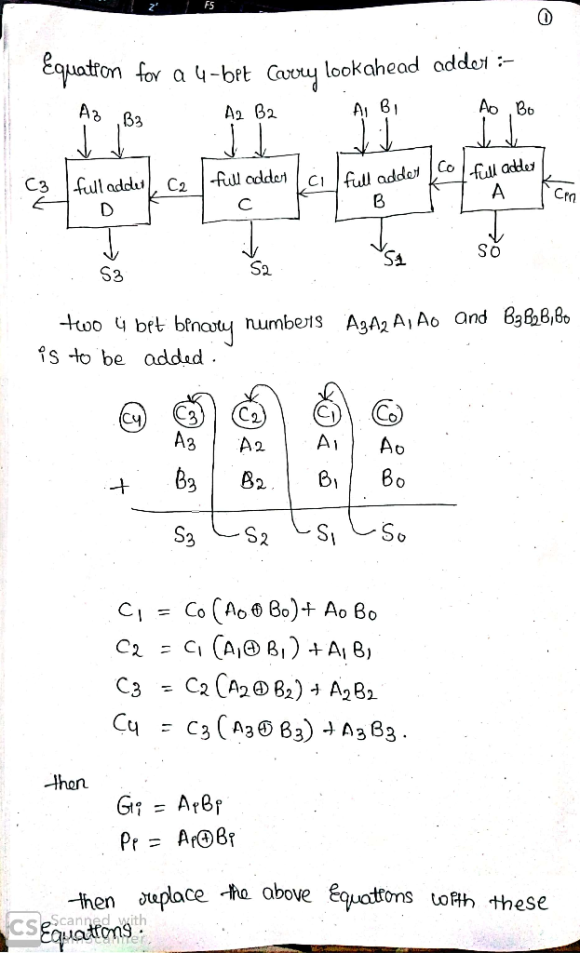

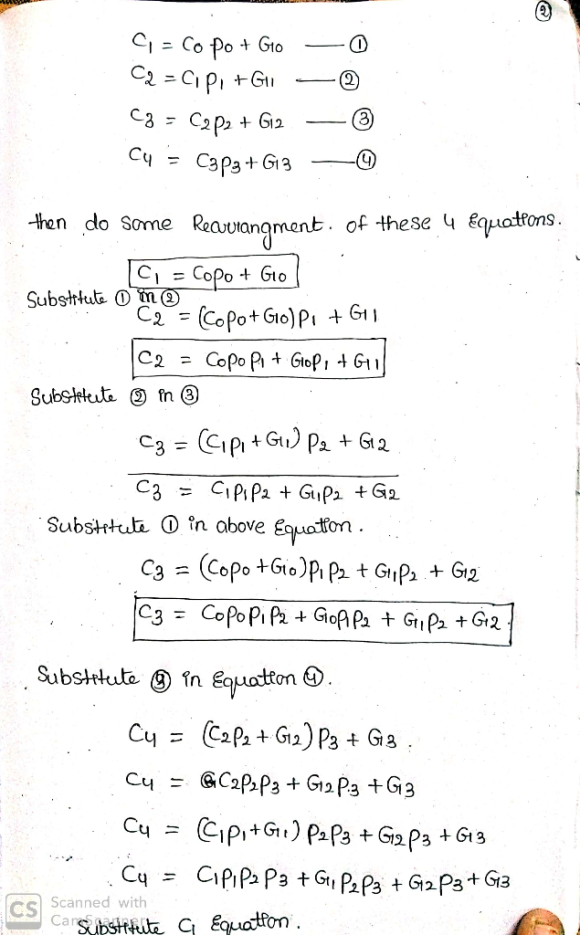

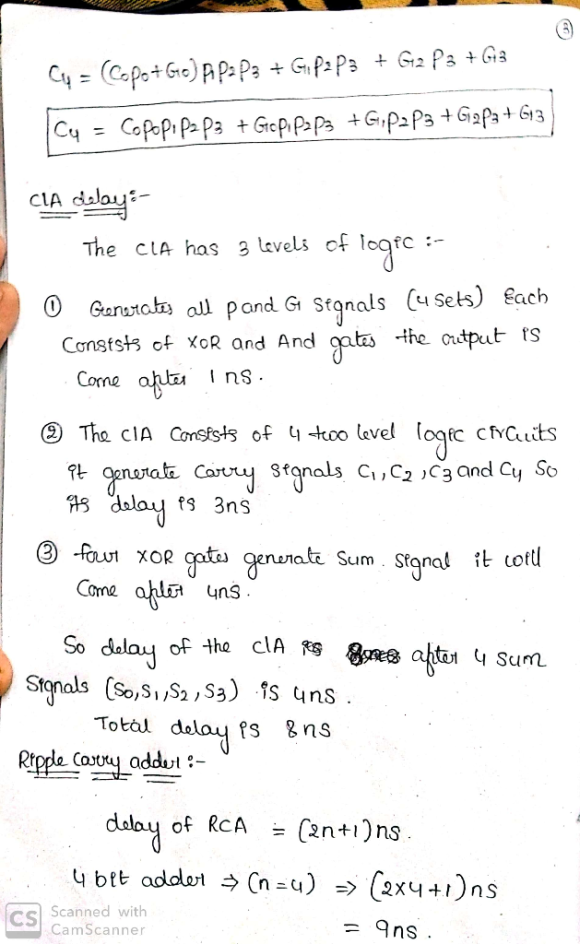

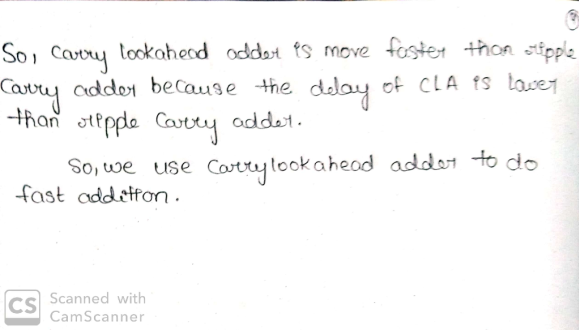

Write the equations for carry-out bits for a 4-bit carry lookahead adder. Draw its diagram and label all the inputs and the outputs. Compare the delays of the 4-bit ripple-carry and 4-bit carry lookahead adders.

Solutions

Expert Solution

venereology answered 8 months ago
