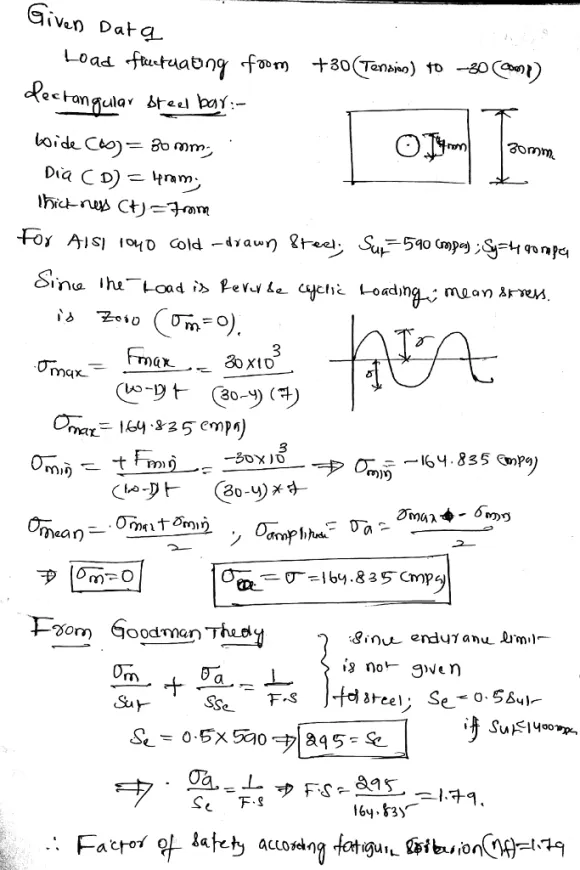

. A rectangular steel bar is subjected to a fluctuating load from 30 kN tension to...

. A rectangular steel bar is subjected to a fluctuating load from 30 kN tension to 30 kN compression. The bar is 30 mm wide and 7 mm thick with a hole in the middle that is 4 mm in diameter. Find the fatigue and yield factor of safety if the steel is cold-drawn AISI 1040. If the fatigue factor nf<1 and ny>1 then that means that the system will fail at a finite number of cycles. If that is the case, estimate the number of cycles to failure.
