The magnetic field has been measured to be horizontal everywhere along a rectangular path x= 22...

The magnetic field has been measured to be horizontal everywhere along a rectangular path x= 22 cm long and y= 4 cm high, shown in the figure. Along the bottom the average magnetic field B1= 1.3 × 10^-4 tesla, along the sides the average magnetic field B2= 1 × 10^-4 tesla, and along the top the average magnetic field B3= 0.4 ×10^-4 tesla. What can you conclude about the electric currents in the area that is surrounded by the rectangular path?

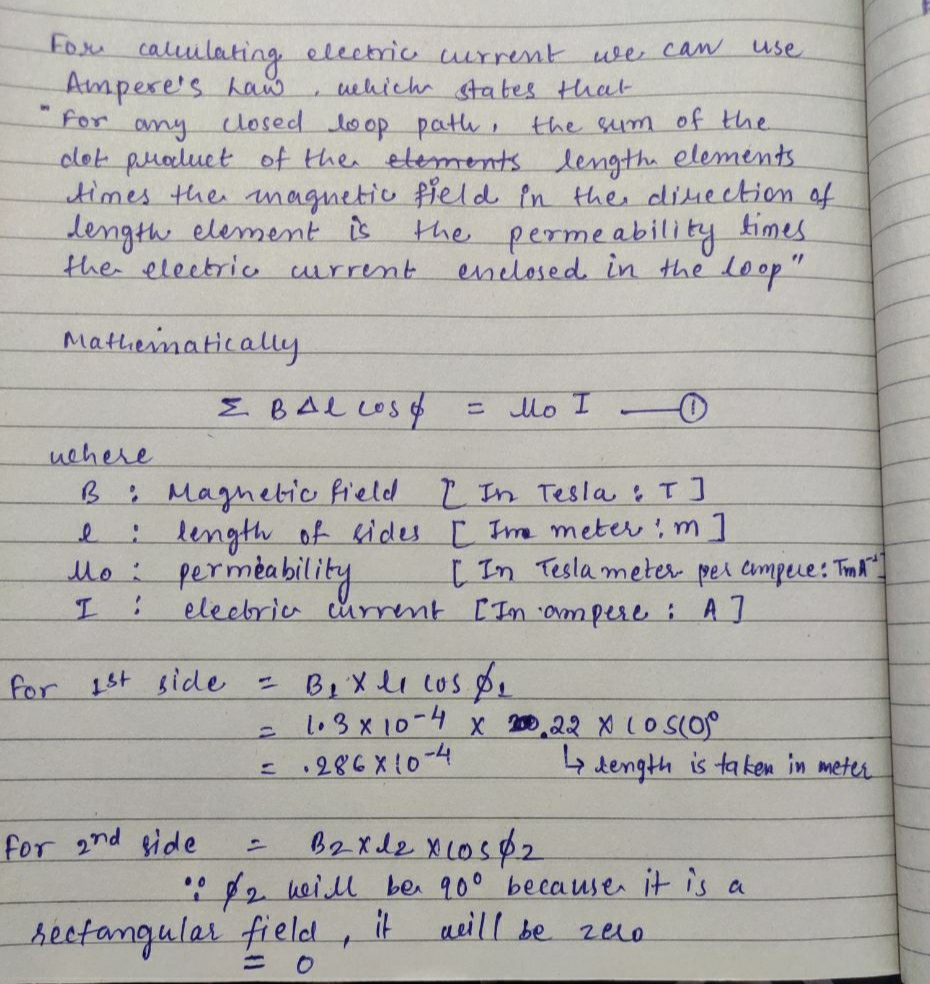

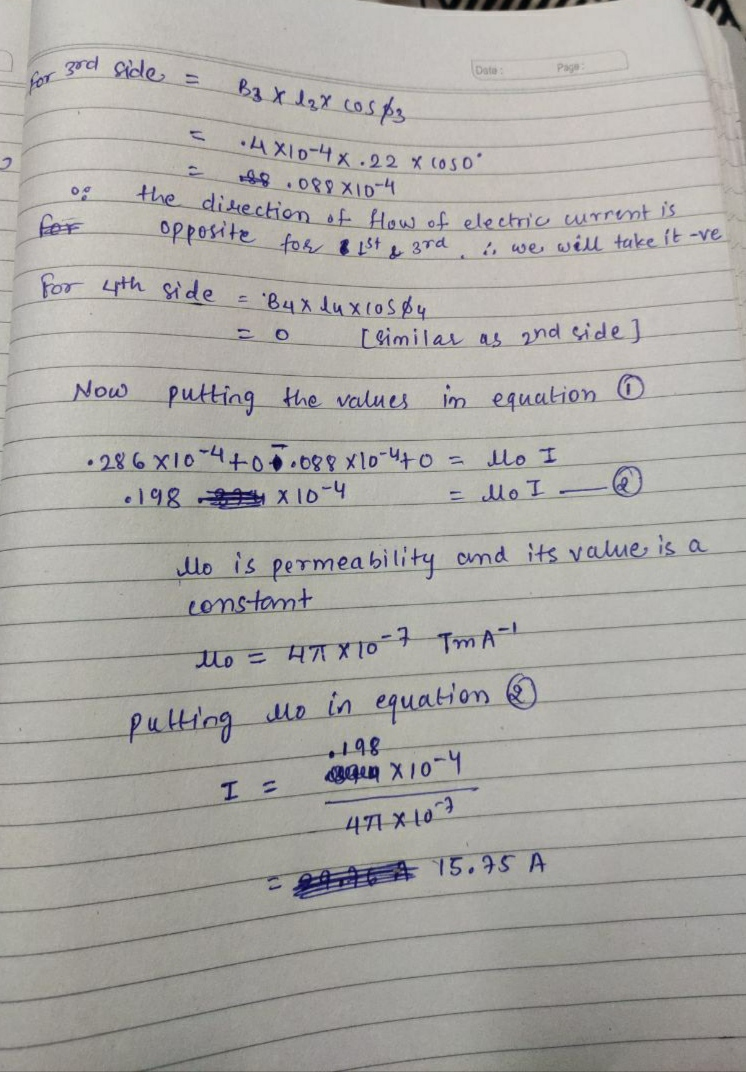

Expert Solution

genius_generous answered 7 hours ago

The magnetic field around the head has been measured to be approximately 2.0×10−8 gauss . Although...

The magnetic field around the head has been measured to be approximately 2.0×10−8 gauss . Although the currents that cause this field are quite complicated, we can get a rough estimate of their size by modeling them as a single circular current loop 14 cm (the width of a typical head) in diameter. What is the current needed to produce such a field at the center of the loop?

A rectangular coil with N turns and area A is place in a uniform magnetic field...

A rectangular coil with N turns and area A is place in a uniform magnetic field directed into y-direction. (a) What amount of emf is induced in the coil if the coil doesn’t move or rotate? . Let’s say the coil rotates about the z-axis through its center at a constant angular velocity LaTeX: \omegaω. (b) What would be total magnetic flux through the coil as a function of LaTeX: \thetaθ ? (LaTeX: \thetaθ is the angle between the directions...

An electron moves in a circular path perpendicular to a uniform magnetic field with a magnitude...

An electron moves in a circular path perpendicular to a uniform magnetic field with a magnitude of 2.14 mT. If the speed of the electron is 1.48 107 m/s, determine the following. (a) the radius of the circular path ............ cm (b) the time interval required to complete one revolution ............ s

A magnetic field is along the xy plane and the z plane is perpendicular to the...

A magnetic field is along the xy plane and the z plane is perpendicular to the magnetic field. In which plane(s) is the magnetic flux the greatest? Please explain.

A magnetic field of 37.2 T has been achieved at the MIT Francis Bitter National Magnetic...

A magnetic field of 37.2 T has been achieved at the MIT Francis Bitter National Magnetic Laboratory. Find the current needed to achieve such a field a) 2.00 cm from a long straight wire b) At the centre of a circular coil of radius 42.0 cm that has 100 turns c) Near the center of a solenoid with radius 2.40 cm, length 32.0 cm and 40000 turns

A horizontal rod .20m long is mounted on a balance and carries a current. At the location of the rod a uniform horizontal magnetic field has magnitude .067 T and direction perpendicular to the rod. That magnetic field has magnitude by the balance and is f

A horizontal rod .20m long is mounted on a balance and carries a current. At the location of the rod a uniform horizontal magnetic field has magnitude .067 T and direction perpendicular to the rod. That magnetic field has magnitude by the balance and is found to be .13 N. What is the current?

1. find (a)electric field and (b)magnetic field of TE waves in a rectangular waveguide. 2. find...

1. find (a)electric field and (b)magnetic field of TE waves in a rectangular waveguide. 2. find (a)electric field and (b)magnetic field of coaxial transmission line.

3.12. A rectangular coil of wire is suspended in a uniform radial magnetic field of induction...

3.12. A rectangular coil of wire is suspended in a uniform radial magnetic field of induction 0.05 T, the field lines being horizontal. The coil consists of 400 turns of wire each of height 2 cm and width 1 cm. If a current of 1 mA is passed through the coil, calculate:- (a) the force acting on unit length of the wire in one of the vertical sides of the coil; (b) the total force on one vertical side of...

An electron follows a helical path in a uniform magnetic field of magnitude 0.447 T. The...

An electron follows a helical path in a uniform magnetic field of magnitude 0.447 T. The pitch of the path is 4.88 μm, and the magnitude of the magnetic force on the electron is 1.64 × 10-15N. What is the electron's speed? ASAP

1. a) You have a maximum magnetic field of 1.45 x 10^(-5) Tesla when measured 3.0...

1. a) You have a maximum magnetic field of 1.45 x 10^(-5) Tesla when measured 3.0 cm away from the long section of wire. What is the maximum current that must flow through the wire to create this B-field? b) You want to make sure you clearly see the time dependence on your phone’s app, decide to design the RC portion of your circuit so that it takes 1.0 seconds for the current to decrease to 10.% of its maximum...
