1. FM radio stations use radio waves with frequencies from 88.0 to 108 MHz to broadcast...

1. FM radio stations use radio waves with frequencies from 88.0 to 108 MHz to broadcast their signals. Assuming that the inductance in Figure 24.4 has a value of 7.00 × 10^-7 H, determine the range of capacitance values that are needed so the antenna can pick up all the radio waves broadcasted by FM stations.

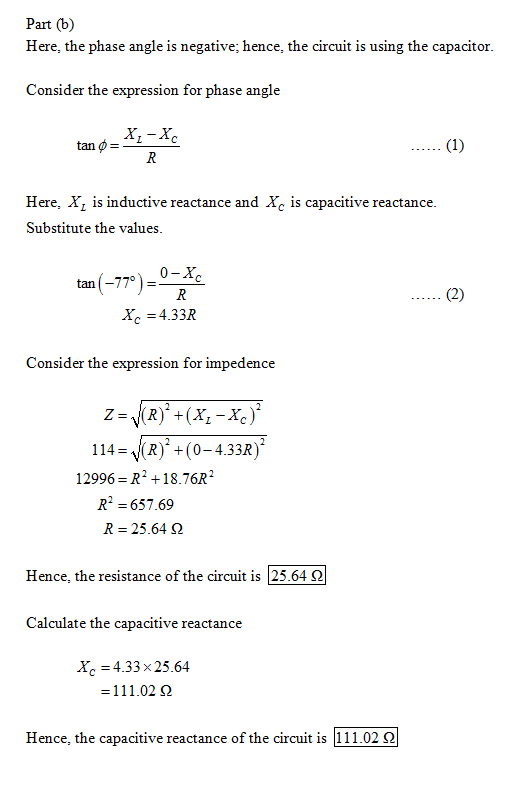

2. An ac series circuit has an impedance of 114 Ω , and the phase angle between the current and the voltage of the generator is φ = -77 ˚. The circuit contains a resistor and either a capacitor or an inductor. Find (a) the resistance R and (b) the capacitive reactance X_C or the inductive reactance X_L, whichever is appropriate.

Expert Solution

genius_generous answered 1 hour ago

Public Radio station KXPR-FM in Sacramento broadcasts at 88.9 MHz. The radio waves pass between two...

Public Radio station KXPR-FM in Sacramento broadcasts at 88.9 MHz. The radio waves pass between two tall skyscrapers that are 15.0 m apart along their closest walls. 1) At what horizontal angles, relative to the original direction of the waves, will a distant antenna not receive any signal from this station? 2) If the maximum intensity is 4.00 W/m2 at the antenna, what is the intensity at ±4.00∘ from the center of the central maximum at the distant antenna? I=...

1. WBIM-FM is the Bridgewater college radio station. It broadcasts at a frequency of 91.5 MHz...

1. WBIM-FM is the Bridgewater college radio station. It broadcasts at a frequency of 91.5 MHz (MHz = megahertz = one million Hertz = 1,000,000 cycles per second = 106 Hz). What is the wavelength of this radio wave? Compare its size to something you are familiar with (object you own, yourself, your car, a city block, etc. be original) 2. During what season will more insolation be delivered to a vertical south-facing window on a clear day? During what...

An FM radio station broadcasts at a frequency of 101.3 MHz. What is the wavelength?

a. An FM radio station broadcasts at a frequency of 101.3 MHz. What is the wavelength? b. What is the frequency of a sound source that produces the same wavelength in 20°C air?

Q3. Commercial radio stations are private firms that produce and broadcast programs without assistance from the...

Q3. Commercial radio stations are private firms that produce and broadcast programs without assistance from the government. a) What type of good is a radio program? Explain your answers with reference to the categories: public good, private good, club good and common resources. b) Explain why commercial radio stations may not produce programs that maximise welfare. c) Explain how adding a government-funded radio station to the market can increase welfare. d) Suppose that the government requires the government-funded radio station...

Almost all FM radio stations transmit digital FM signal. Explain how the fully analog FM has...

Almost all FM radio stations transmit digital FM signal. Explain how the fully analog FM has been converted to fully digital FM.

Today, AM/FM stations are competing with thousands of internet radio stations, music streaming, and downloading forecast...

Today, AM/FM stations are competing with thousands of internet radio stations, music streaming, and downloading forecast their future and provide a strategy for retaining and gaining market share.

An FM radio station broadcasts electromagnetic radiation at a frequency of 104.6 MHz. Calculate the wavelength...

An FM radio station broadcasts electromagnetic radiation at a frequency of 104.6 MHz. Calculate the wavelength (in m) of this radiation. Report the answer with the correct number of significant figures

___________________ waves have frequencies lower than visible light. Radio Ultraviolet Gamma X-ray

(1) Radio waves and light are electromagnetic waves and transverse waves that can operate in a...

(1) Radio waves and light are electromagnetic waves and transverse waves that can operate in a medium or in space. What is an Aether or ether? Upon which medium does sound travel the fastest? (2) Some scientists think that ether does exist but does exist in another dimension that we cannot see. Can you elaborate on this?

Due to the Doppler effect, a moving aircraft sees the broadcast signals at 377 MHz from...

Due to the Doppler effect, a moving aircraft sees the broadcast signals at 377 MHz from a stationary communications antenna that broadcasts signals at 356 MHz. Find the relative velocity between the aircraft and the broadcast station. Determine the direction of the moving aircraft.
