Question

In: Physics

1. When an inductor is connected to a 60.0 Hz source it has an inductive reactance...

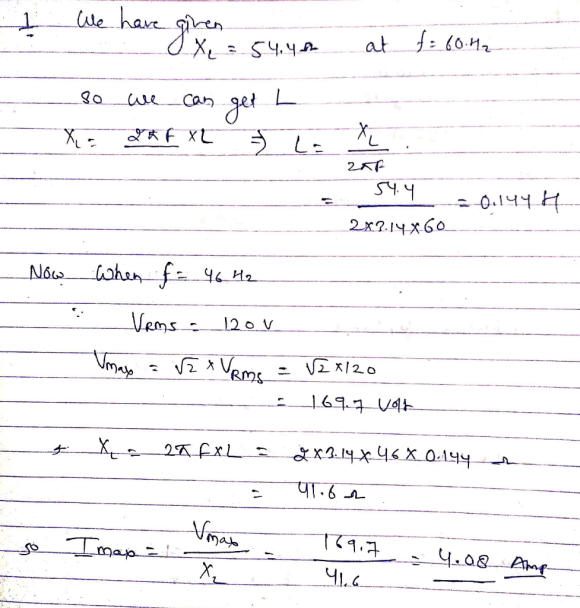

1. When an inductor is connected to a 60.0 Hz source it has an inductive reactance of 54.4 Ω. Determine the maximum current in the inductor (in A) if it is connected to a 46.0 Hz source that produces a 120 V rms voltage.

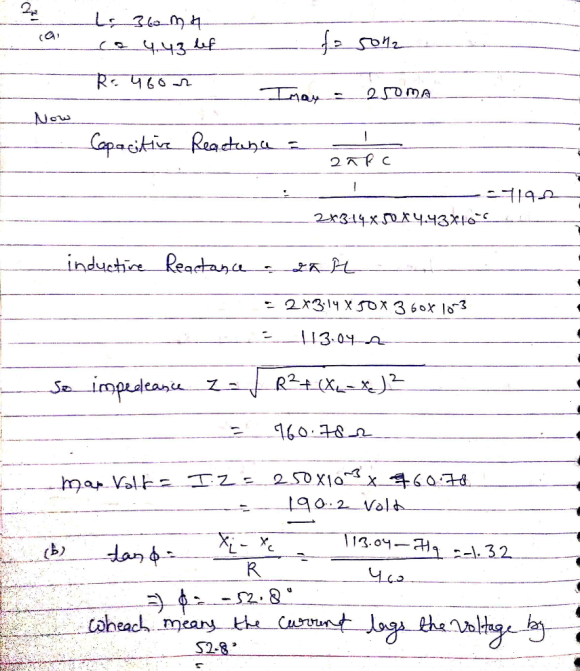

An inductor (L = 360 mH), a capacitor (C = 4.43 µF), and a resistor (R = 460 Ω) are connected in series. A 50.0-Hz AC source produces a peak current of 250 mA in the circuit.

(a) Calculate the required peak voltage ΔVmax.

(b) Determine the phase angle by which the current leads or lags the applied voltage.

magnitude °
direction

---Select--- leads lags

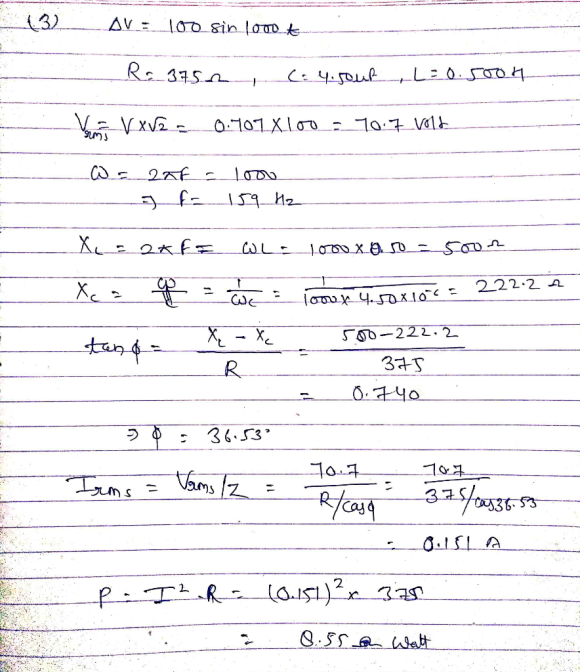

3. An AC voltage of the form Δv = 100 sin 1 000t, where Δv is in volts and t is in seconds, is applied to a series RLC circuit. Assume the resistance is 375 Ω, the capacitance is 4.50 µF, and the inductance is 0.500 H. Find the average power delivered to the circuit.

Solutions

Expert Solution

here i am giving full solution

genius_generous answered 3 months ago
Next > < Previous

Related Solutions

An inductor has a 43.6 Ω inductive reactance when connected across a 60.0 Hz power source....
An inductor has a 43.6 Ω inductive reactance when connected across a 60.0 Hz power source. The inductor is removed from this first power source and then connected to a 52.0 Hz power source that produces a 80.0 Vrms voltage. a. (5 points) Draw a clear physics diagram of the problem. b. (4 points) What is the inductance for this inductor? c. (6 points) What is the maximum current in the inductor when connected to the 52.0 Hz source? d....
To understand the concept of reactance (of an inductor) and its frequency dependence. When an inductor...
To understand the concept of reactance (of an inductor) and its frequency dependence. When an inductor is connected to a voltage source that varies sinusoidally, a sinusoidal current will flow through the inductor, its magnitude depending on the frequency. This is the essence of AC (alternating current) circuits used in radio, TV, and stereos. Circuit elements like inductors, capacitors, and resistors are linear devices, so the amplitude I0 of the current will be proportional to the amplitude V0 of the...
1- A 480-V, 60-Hz, delta connected, synchronous generator has a synchronous reactance of 0.5 ohm and...
1- A 480-V, 60-Hz, delta connected, synchronous generator has a synchronous reactance of 0.5 ohm and Its rated Line current is 100 A. if the generator is connected to a 480V grid Draw the phasor diagram and find EA, delta angle and output power under the following conditions a- The generator supply the rated current at 0.8 PF lagging. b-The generator supply the rated current at 1.0 PF. c- The generator supply the rated current at 0.8 PF leading.
A 120 V rms voltage at 60.0 Hz is applied across an inductor, a capacitor, and...
A 120 V rms voltage at 60.0 Hz is applied across an inductor, a capacitor, and a resistor in series. If the peak current in this circuit is 0.84840 A, what is the impedance of this circuit?
660 mH inductor has a reactance of 490 Ω and a frequency of 120 Hz. At what frequency would a 0.49 μF capacitor have the same reactance?
660 mH inductor has a reactance of 490 Ω and a frequency of 120 Hz. At what frequency would a 0.49 μF capacitor have the same reactance?
Capacitive Reactance,Xc = 1/2πfc Inductive Reactance,XL = 2πfL Why there is no reactance in DC? Give...
Capacitive Reactance,Xc = 1/2πfc Inductive Reactance,XL = 2πfL Why there is no reactance in DC? Give answer in sentences.
A 400V, 50 Hz , 80 hp eight pole Δ connected synchronous motor has a reactance...
A 400V, 50 Hz , 80 hp eight pole Δ connected synchronous motor has a reactance of 0.6 and negligible armature resistance. Its friction, windage and core losses are 1.2KW, 0.5KW and 1KW respectively . What is the speed of this motor? If this motor is initially supplying rated hp at 0.82 PF lagging . What are the magnitudes and angles of ? What is the power factor of the motor? How much induced torque and load torque is produced...
An AC generator supplies an rms voltage of 230 V at 60.0 Hz. It is connected...
An AC generator supplies an rms voltage of 230 V at 60.0 Hz. It is connected in series with a 0.300 H inductor, a 4.30 μF capacitor and a 256 Ω resistor. What is the impedance of the circuit? What is the rms current through the resistor? What is the average power dissipated in the circuit? What is the peak current through the resistor? What is the peak voltage across the inductor? What is the peak voltage across the capacitor?...
An AC generator supplies an rms voltage of 230 V at 60.0 Hz. It is connected...
An AC generator supplies an rms voltage of 230 V at 60.0 Hz. It is connected in series with a 0.400 H inductor, a 3.40 μF capacitor and a 206 Ω resistor. What is the impedance of the circuit? Tries 0/20 What is the rms current through the resistor? Tries 0/20 What is the average power dissipated in the circuit? Tries 0/20 What is the peak current through the resistor? Tries 0/20 What is the peak voltage across the inductor?...
An AC generator supplies an rms voltage of 115 V at 60.0 Hz. It is connected...
An AC generator supplies an rms voltage of 115 V at 60.0 Hz. It is connected in series with a 0.550 H inductor, a 3.90 μF capacitor and a 311 Ω resistor. What is the impedance of the circuit? What is the rms current through the resistor? What is the average power dissipated in the circuit? What is the peak current through the resistor? What is the peak voltage across the inductor? What is the peak voltage across the capacitor?...
