A small object is placed to the left of a convex lens and on its optical...

A small object is placed to the left of a convex lens and on its optical axis. The object is 50 cm from the lens, which has a focal length of 15 cm. Determine the location of the image formed by the lens. (Enter your answer in cm from the lens.)

_____ cm from the lens

Describe the image. (Select all that apply.)

real ____

Virtual ___

upright ____

Inverted ___

enlarged ___

Reduced ___

on the left side of the lens ___

on the right side of the lens __

Solutions

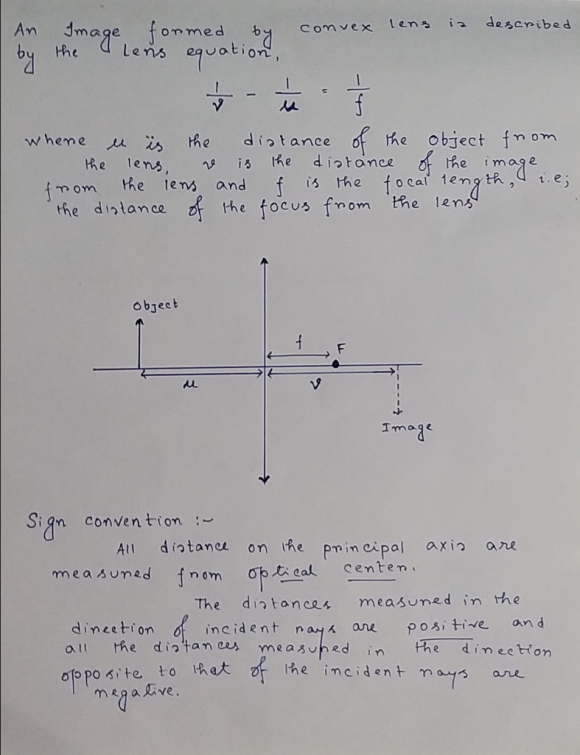

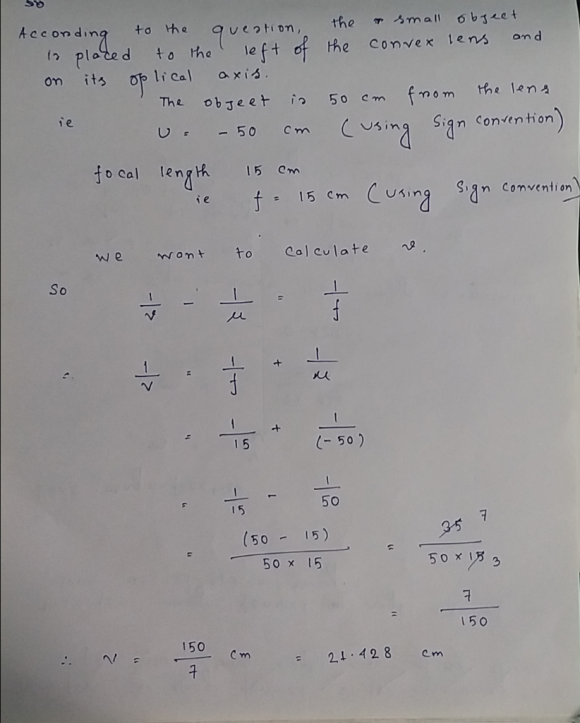

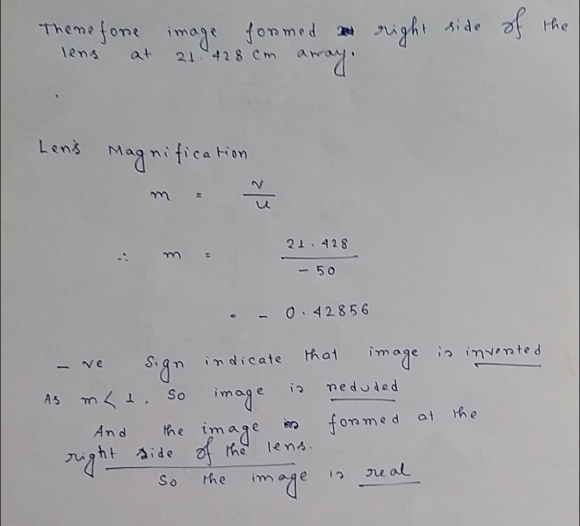

Expert Solution
