An object is placed 35.5 cm to the left of a converging lens of focal length...

An object is placed 35.5 cm to the left of a converging lens of focal length 18.8 cm. A second lens, which is diverging and has a focal length of -88.8 cm is placed at a certain distance d to the right of the first lens.

A) where is the image of the object formed by the first lens and what is its magnification?

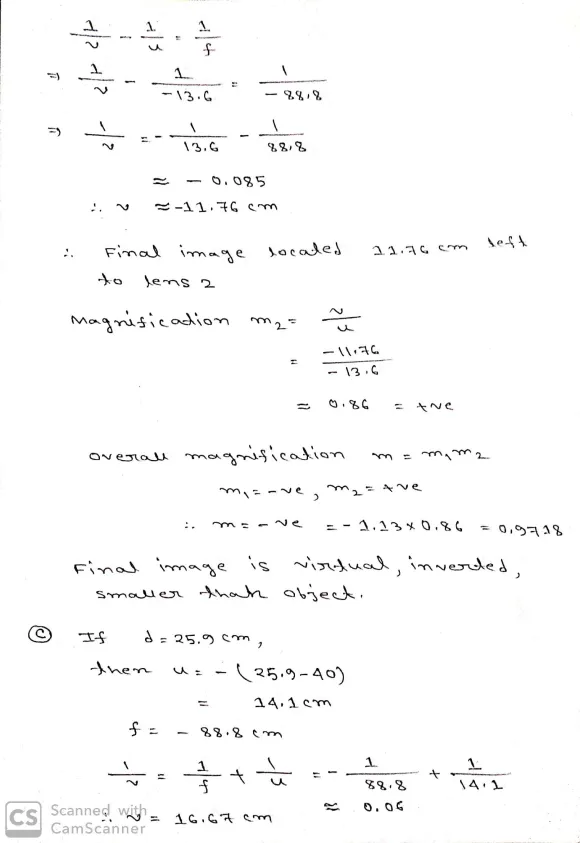

B) If the distance d=53.6 cm, where is the final image of the object? What are the properties of the image?

C) If the distance d=25.9 cm, where is the final image of the object? What are the properties of the image?

D) If in part B the lenses are reversed, where is the final image of the object and what are the properties of the image?

Solutions

Expert Solution

genius_generous answered 2 weeks ago
