1. Create a network diagram and project schedule (illustrated in a Gantt chart) from the following...

1. Create a network diagram and project schedule (illustrated in a Gantt chart) from the following set of tasks. Use the task number, duration, and dependencies of each task given and construct a schedule so that the project is completed in the least number of days possible. Include a management reserve of approximately 10%.

Task

Subject

Duration

Dependencies

Slack (3 pts)

1.0

Project Kickoff

2

none

2.1

Install & Test Database Software

2

1.0

2.2

Configure & Test Database Web API

2

2.1

2.3

Develop & Test Modeling Software

8

1.0

2.4

Develop Reporting Software

5

1.0

3.1

Integration Test: DB API & Model

2

2.2 and 2.3

3.2

Test Reporting Software

2

2.2 and 2.4

4.0

Final Integration/Acceptance Testing

5

3.1 and 3.2

5.0

Closeout

2

4.0

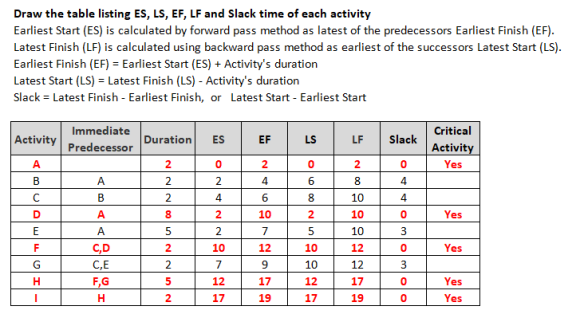

2. Draw the Network Diagram and calculate the early and late schedules

3. What tasks, in order, are on the critical path?

4. Draw the Schedule as a Gantt Chart?

5. What does the graphical representation of the WBS look like for the project?

Note: only the terminal graph nodes are shown in the tasks above; construct logical section titles where needed!

Solutions

Expert Solution

1)

For sake of simplicity, let us assign alphabetical ID to each task

ID Task Subject Duration Dependencies Dependent task ID
A 1.0 Project Kickoff 2 none
B 2.1 Install & Test Database Software 2 1.0 A
C 2.2 Configure & Test Database Web API 2 2.1 B
D 2.3 Develop & Test Modeling Software 8 1.0 A
E 2.4 Develop Reporting Software 5 1.0 A
F 3.1 Integration Test: DB API & Model 2 2.2 and 2.3 C,D
G 3.2 Test Reporting Software 2 2.2 and 2.4 C,E
H 4.0 Final Integration/Acceptance Testing 5 3.1 and 3.2 F,G
I 5.0 Closeout 2 4.0 H

Project completion time = 19 days

Considering 10% management reserve, project completion time = 19*1.1

= 21 days

------------------------------------------------------------------------------------

2)

Network diagram is as follows:

------------------------------------------------------------------------------------

3)

List all the paths in the network and their respective length

Length of each path is equal to the sum of activity times on that path

Path Length
A-D-F-H-I 19
A-B-C-F-H-I 15
A-B-C-G-H-I 15
A-E-G-H-I 16

Critical path is the longest path, which is A-D-F-H-I

Project completion time = 19 days

------------------------------------------------------------------------------------

4)

Gantt chart is following:
