Question

In: Electrical Engineering

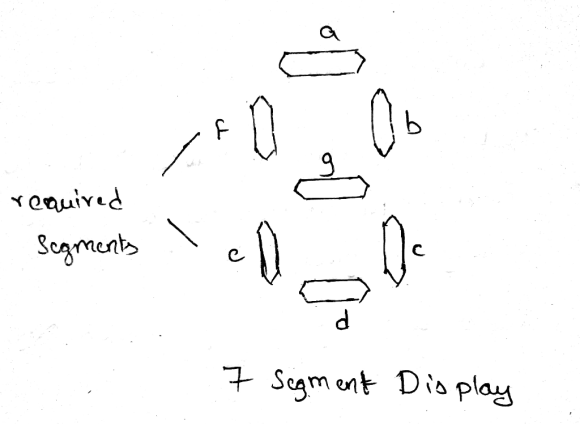

Design the digital logic for segments e,f of the seven segment display driver

Design the digital logic for segments e,f of the seven segment display driver

Solutions

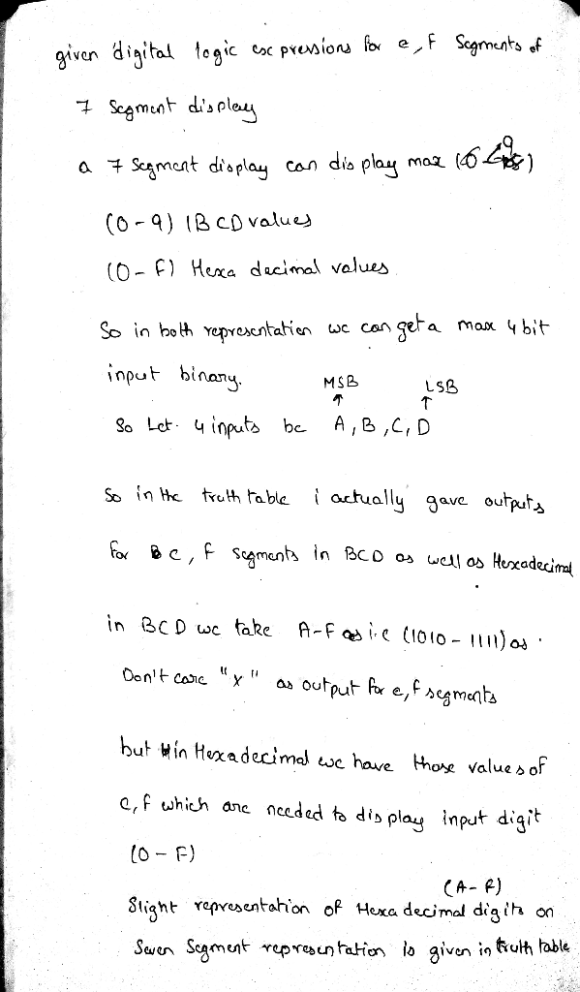

Expert Solution

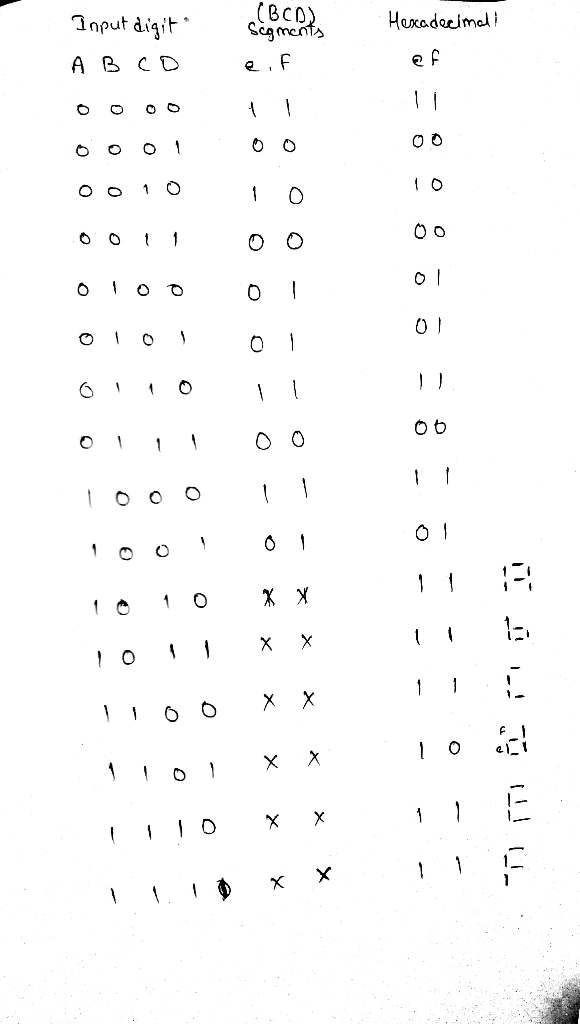

Truth table

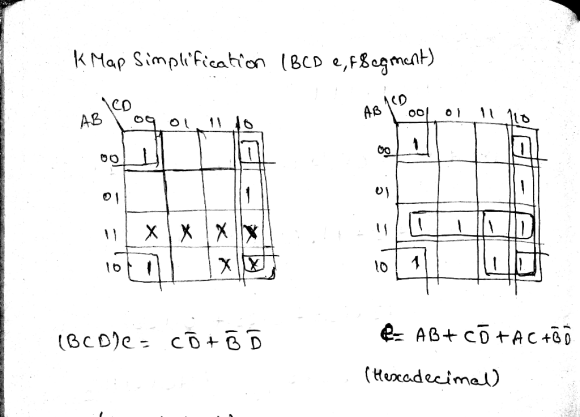

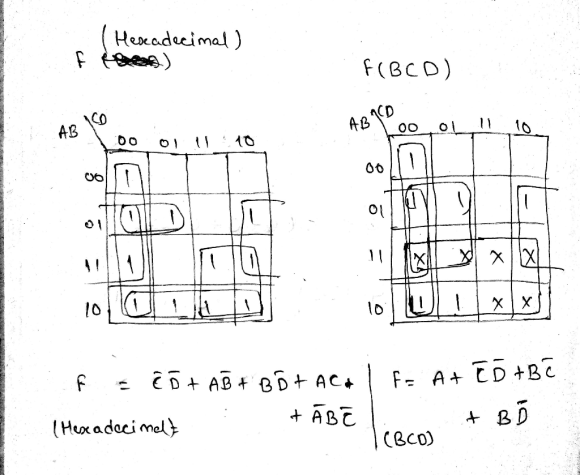

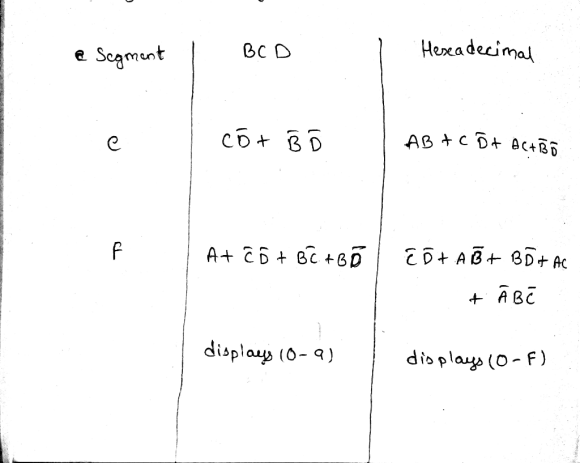

Logic circuit
