Question
In: Physics
In the figure, three connected blocks are pulled to the right on a horizontal frictionless table...

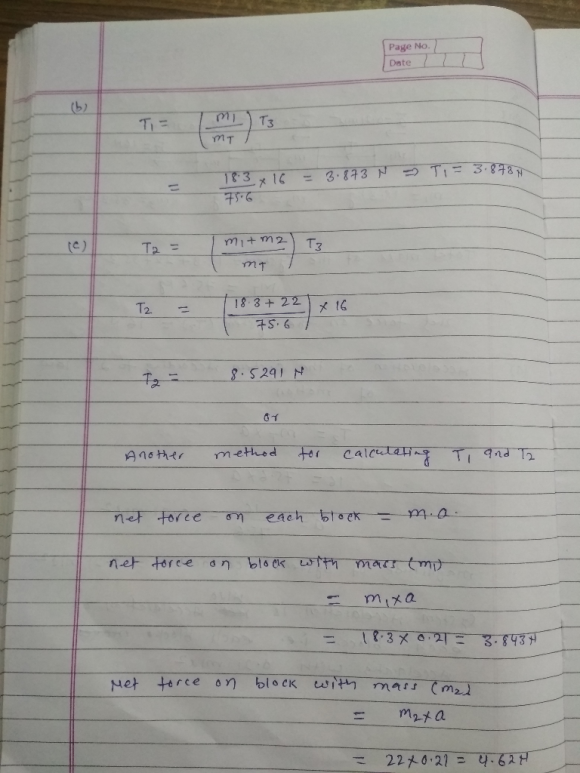

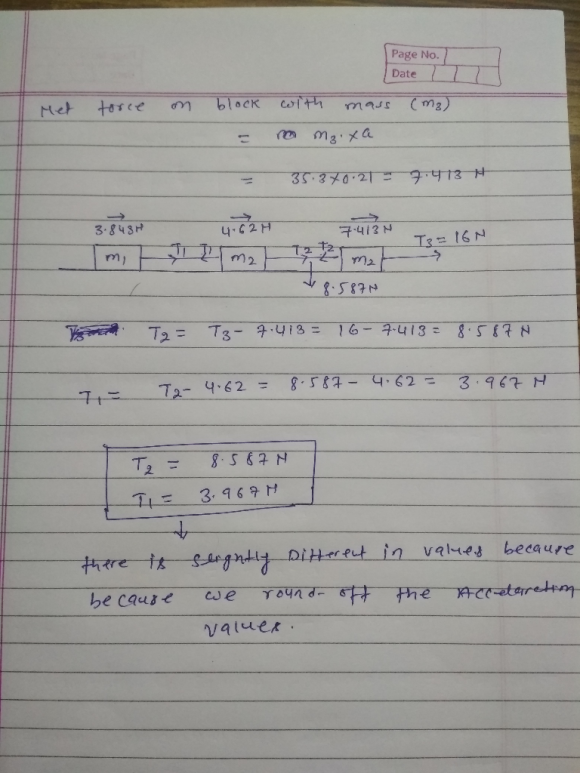

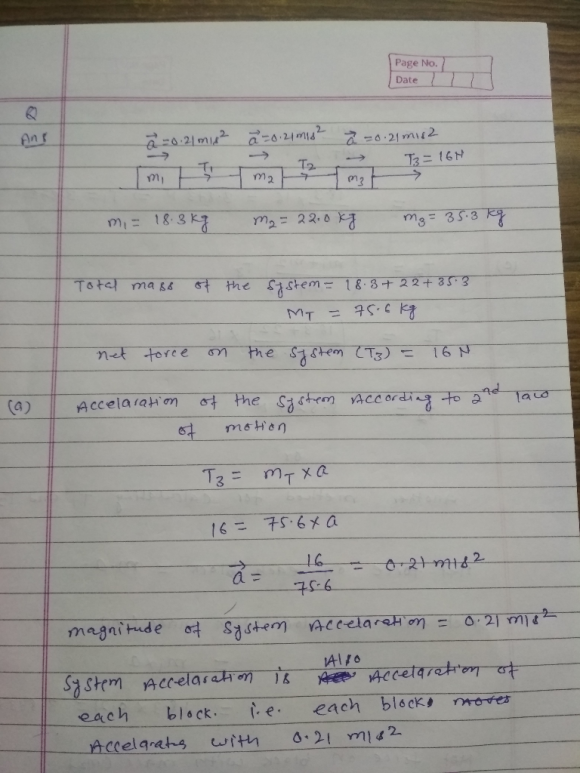

In the figure, three connected blocks are pulled to the right on a horizontal frictionless table by a force of magnitude T3 = 16.0 N. If m1 = 18.3 kg, m2 = 22.0 kg, and m3 = 35.3 kg, calculate (a) the magnitude of the system's acceleration, (b) the tension T1, and (c) the tension T2.
Solutions
genius_generous answered 4 months agoRelated Solutions
Three identical blocks connected by ideal strings are being pulled along a horizontal frictionless surface by...
Three identical blocks connected by ideal strings are being
pulled along a horizontal frictionless surface by a horizontal
force F⃗ . (Figure 1) The magnitude of the tension in the string
between blocks B and C is T = 3.00 N . Assume that each block has
mass m = 0.400 kg . What is the magnitude F of the force? What is
the tension TAB in the string between block A and block B? Express
your answers numerically in...
Three identical blocks connected by ideal strings are being pulled along a horizontal frictionless surface by...
Three identical blocks connected by ideal strings are being
pulled along a horizontal frictionless surface by a horizontal
force F⃗ . (Figure 1) The magnitude of the tension in the
string between blocks B and C is T = 3.00 N . Assume that
each block has mass m = 0.400 kg .
a) What is the magnitude F of the force?
b)What is the tension TAB in the string between block A
and block B?
three identical blocks connected by ideal strings are being pulled along a horizontal frictionless surface by...
three identical blocks connected by ideal strings are being pulled
along a horizontal frictionless surface by a hrizontal force F. the
magnitude of the tension in the string between blocks B and C is
T=3.00 N. assume that each block had mass m=0.400kg
Two blocks connected by a light string are being pulled across a frictionless horizontal tabletop by...
Two blocks connected by a light string are being pulled across a
frictionless horizontal tabletop by a hanging 15.0-N weight (block
C). Block A has a mass of 4.00 kg. The mass of block B is only 1.00
kg. The blocks gain speed as they move toward the right, and the
strings remain taut at all times. ? 1) Assuming the
pulley is massless and frictionless, what is the value of the
tension T1? (Express your answer to three significant...
Three identical blocks, A, B, and C, are on a horizontal frictionless table. The blocks are...
Three identical blocks, A, B, and C, are on a horizontal
frictionless table. The blocks are connected by strings of
negligible mass, with block B between the other two blocks. If
block C is pulled horizontally by a force of magnitude F =
49 N, find the tension in the string between blocks B and
C.
Three blocks of unknown mass m1, m2=2.0 kg, and m3 = 3.0 kg are on a frictionless horizontal surface as shown on the figure below.
Three blocks of unknown mass m1, m2=2.0 kg, and m3 = 3.0 kg
are on a frictionless horizontal surface as shown on the figure
below. The blocks are connected by ideal, massless strings. A force
FL=11 N is applied to the left block and is directed to the left. A
force FR=33 N is applied to the right block, and is directed to the
right. The tension T12 in the string between m1 and m2 is 13 N and
the...
You are pushing a set of blocks along a frictionless horizontal surface. The blocks are arranged...
You are pushing a set of blocks along a frictionless horizontal
surface. The blocks are arranged in order by the 1kg block, then
the 2kg block, and then the 3kg block; you push the 1kg block.
a. Calculate the force exerted by the 3kg block on the 2kg
block.
b. Calculate the force exerted by the 2kg block on the 1kg
block.
For both parts show if you are using Newton's 2nd or 3rd Law and
where.
Two blocks are connected by a light string that passes over a frictionless pulley as in...
Two blocks are connected by a light string that passes over a
frictionless pulley as in the figure below. The system is released
from rest while m2 is on the floor and m1 is a distance h above the
floor.
(a) Assuming m1 > m2, find an expression for the speed of m1
just as it reaches the floor. (Use any variable or symbol stated
above along with the following as necessary: g.) vf = Incorrect:
Your answer is incorrect....
Two blocks are connected by a light string that passes over a frictionless pulley having a...
Two blocks are connected by a light string that passes over a
frictionless pulley having a moment of inertia of 0.0040 kg*m2 and
a radius of 5.0 cm. The coefficient of kinetic friction between the
table top and the upper block is 0.300. The blocks are released
from rest. Using energy methods, find the speed of the upper block
just as it has moved 0.600 m.
Two blocks of masses m and 3m are placed on a frictionless, horizontal surface. A light...
Two blocks of masses m and 3m are placed on a frictionless,
horizontal surface. A light spring is attached to the more massive
block, and the blocks are pushed together with the spring between
them as shown in the figure below. A cord initially holding the
blocks together is burned; after that happens, the block of mass 3m
moves to the right with a speed of v with arrow3m = 1.70 m/s.
(a) What is the velocity of the block...
