In: Electrical Engineering

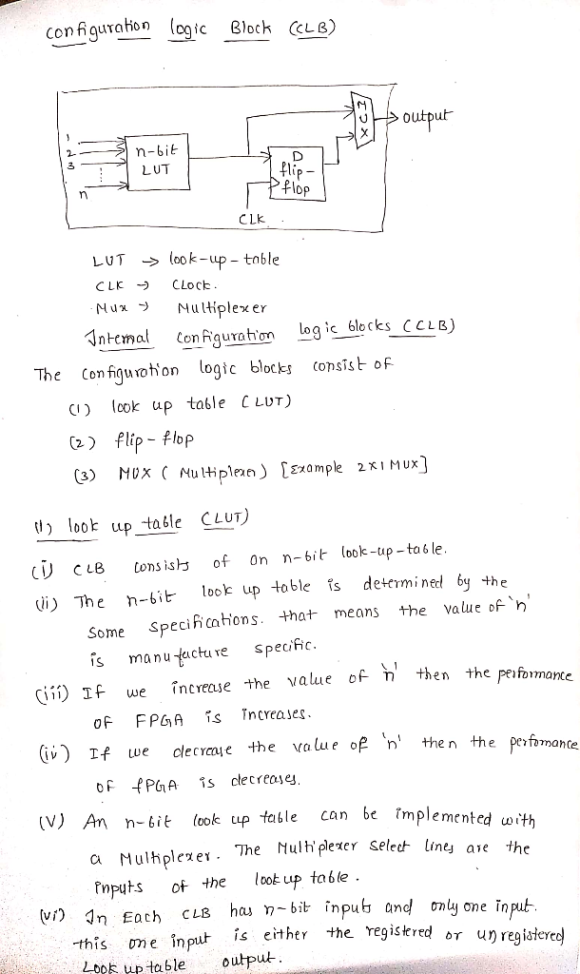

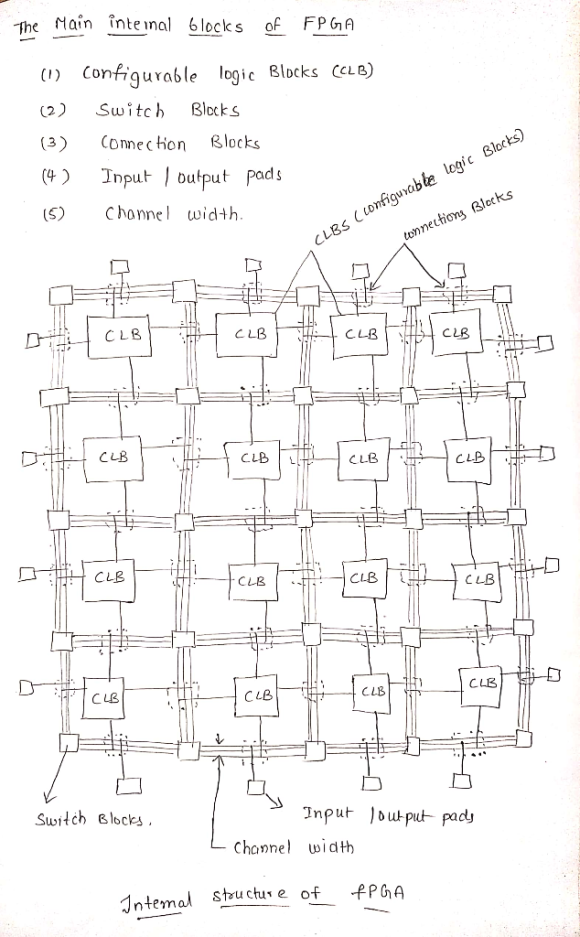

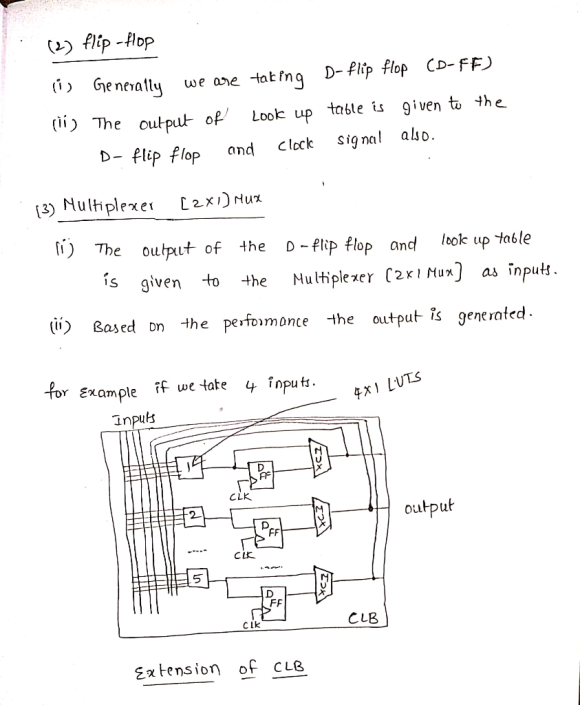

What are the main internal blocks that a typical FPGA (Field Programmable Gate Arrays) device consists of? Sketch what a Configuration Logic Block (CLB) internal design looks like and explain each key part of this CLB block? Label the input/output signals and logic blocks appropriately.
