Question

Tic-Tac-Toe, also called X's and O's, Noughts and Crosses, and X and 0 is a simple game played on a 3x3 grid, referred to as the board. Lines may be horizontal, vertical, or diagonal.

You will implement a Board class to represent the 3x3 grid. This class will have functions to determine which symbol, if any, is in a cell, to place a symbol in a cell, to determine the winner, if any so far, and to print the board to standard output. The board should appear as below:

Implement a Board class with the following functionality:

 Default constructor, copy constructor, destructor, assignment operator.

 Determine the symbol at the specified grid position.

 Change the symbol at the specified grid position.

 Determine the winner of the game, if any. You must distinguish between the case where there is no winner because the game is not over yet, and the case where there is no winner because the game ended in a tie.

Create four constants for the four game states and return one of them.

Find a way to pass the position in the grid as a single value. This can be done by creating a record (struct) to store the row and column, or by representing both values using a single integer.

 Print the board to standard output.

Answer 1

TicTacToe.java

import javax.swing.JOptionPane;

public class TicTacToe {

   public static void main(String[] args)
   {
       try
       {
           int choice = JOptionPane.showOptionDialog(null, "Would you like to play Tic-Tac-Toe?", "Tic-Tac-Toe",
                                           JOptionPane.YES_NO_OPTION, JOptionPane.QUESTION_MESSAGE, null, null, null);
           if (choice == 0)
           {
               TTTGame game = new TTTGame();
               game.play();
           }
       }
       catch (NullPointerException exception)
       {

       }
   }
}

TTTGame.java

import java.util.Scanner;
import javax.swing.JOptionPane;

public class TTTGame
{
   //constants
   private static final String PLAYER_1 = "X";
   private static final String PLAYER_2 = "0";

   //instance variables
   private String lastPiece;
   private String currentPiece;
   private String nextPiece;
   private boolean keepPlaying;
   private TTTBoard board;

   //constructor
   public TTTGame()
   {
       lastPiece = PLAYER_2;
       currentPiece = PLAYER_1;
       nextPiece = PLAYER_2;
       board = new TTTBoard();
       keepPlaying = true;
   }

   // takes a piece type (char) and gets a tic-tac-toe board location from the player
   // returns the chosen location as an array of ints of length 2
   public int[] chooseSquare(String piece)
   {
       int[] location = new int[2];
       boolean validInput = false;
       while (!validInput)
       {

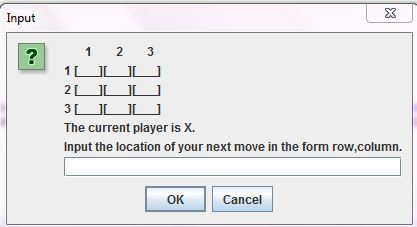

           String input = JOptionPane.showInputDialog(null, board.toString() + "\nThe current player is " + piece + ". "
                                           + "\nInput the location of your next move in the form row,column.");
           Scanner inputScanner = new Scanner(input);
           inputScanner.useDelimiter(",");
           if(inputScanner.hasNextInt())
           {
               if (inputScanner.hasNextInt())
               {
                   for (int i = 0; i < location.length; i++)
                   {
                       location[i] = inputScanner.nextInt();
                   }
                   validInput = true;
               }
           }
           else
           {
               JOptionPane.showMessageDialog(null, "Invalid input. Please enter two numbers separated by a comma.");
           }
           inputScanner.close();
       }
       return location;
   }

   // allows two players to play the game
   public void play()
   {
       while (keepPlaying)
       {
           int[] location = chooseSquare(currentPiece);
           if (board.move(currentPiece, location[0], location[1]))
           {
               if (board.winner())
               {
                   JOptionPane.showMessageDialog(null, board.toString() + "\nThe winner is " + currentPiece + ". \nCongratulations!");
                   keepPlaying = false;
               }

               else if (board.isBoardFull() && !board.winner())
               {
                   JOptionPane.showMessageDialog(null, board.toString() + "\nGame over! \nThe board is full with no winner.");
                   keepPlaying = false;
               }
               lastPiece = currentPiece;
               currentPiece = nextPiece;
               nextPiece = lastPiece;
           }
           else
           {
               JOptionPane.showMessageDialog(null, "Invalid move! The square is full!");
           }
       }
   }

}

TTTBoard.java

public class TTTBoard
{
   //instance variables
   private final int ROWS = 3;
   private final int COLUMNS = 3;
   private String[][] board = new String[ROWS][COLUMNS];

   //constructor which creates a blank tic-tac-toe game board
   //2d array of pieces (char) and board layout
   public TTTBoard()
   {
       for (int i = 0; i < ROWS; i++)
       {
           for (int j = 0; j < COLUMNS; j++)
           {
               board[i][j] = "";
           }
       }
   }

   // takes a board location (row and column numbers) and determines if that location is currently occupied
   public boolean isSquareFull(int xpos, int ypos)
   {
       if (board[xpos][ypos] == "")
       {
           return false;
       }
       else
           return true;
   }

   // takes a piece type (char) and a board location and places the piece in that location, updating the board
   // returns true if this was successful
   // does nothing if there is already a piece there or if that player made the last move
   public boolean move(String piece, int xpos, int ypos)
   {
       int tempX = xpos - 1;
       int tempY = ypos - 1;
       // check if that player made the last move too
       if (!isSquareFull(tempX, tempY))
       {
           board[tempX][tempY] = piece;
           return true;
       }
       else
       {
           return false;
       }
   }

   // determines if the board is full
   public boolean isBoardFull()
   {
       for (int i = 0; i < ROWS; i++)
       {
           for (int j = 0; j < COLUMNS; j++)
           {
               if (!isSquareFull(i, j))
               {
                   return false;
               }
           }
       }
       return true;
   }

   // determines if a player has won
   // a player wins if they have a straight line vertically, horizontally, or diagonally
   public boolean winner()
   {
       // vertical winner
       for (int i = 0; i < ROWS; i++)
       {
           int j = 0;
           if ((board[i][j].equals(board[i][j+1])) && (board[i][j].equals(board[i][j+2])) && (!board[i][j].equals("")))
               return true;
       }

       // horizontal winner
       for (int j = 0; j < COLUMNS; j++)
       {
           int i = 0;
           if ((board[i][j].equals(board[i+1][j])) && (board[i][j].equals(board[i+2][j])) && (!board[i][j].equals("")))
               return true;
       }

       // diagonal winner
       if (board[0][0].equals(board[1][1]) && board[0][0].equals(board[2][2]) && (!board[0][0].equals("")))
           return true;
       else if (board[2][0].equals(board[1][1]) && board[2][0].equals(board[0][2]) && (!board[2][0].equals("")))
           return true;
       else
           return false;
   }

   // returns the board as a string
   public String toString()
   {
       String boardString = new String("       1        2        3 ");
       for (int i = 0; i < this.board.length; i++)
       {
           boardString += "\n" + (i+1) + " ";
           for (int j = 0; j < this.board[0].length; j++)
           {
               if (this.board[i][j] != "")
               {
                   boardString += "[_" + board[i][j] + "_]";
               }
               else
               {
                   boardString += "[___]";
               }
           }
       }
       return boardString;
   }

   // main method for testing data type
   public static void main(String[] args)
   {
       TTTBoard currentBoard = new TTTBoard();
       System.out.println(currentBoard.toString() + "\n");
       String playerChar = "X";
       String computerChar = "O";
       currentBoard.move(playerChar, 1, 1);
       System.out.println(currentBoard.toString());
       System.out.println(currentBoard.winner());
       currentBoard.move(computerChar, 3, 3);
       System.out.println(currentBoard.toString());
       System.out.println(currentBoard.winner());
       currentBoard.move(playerChar, 1, 2);
       System.out.println(currentBoard.toString());
       System.out.println(currentBoard.winner());
       currentBoard.move(computerChar, 2, 3);
       System.out.println(currentBoard.toString());
       System.out.println(currentBoard.winner());
       currentBoard.move(playerChar, 1, 3);
       System.out.println(currentBoard.toString());
       System.out.println(currentBoard.winner());
       currentBoard.move(computerChar, 2, 2);
       System.out.println(currentBoard.toString());
       System.out.println(currentBoard.winner());
   }
}
