Question

In: Civil Engineering

A 3% uphill grade is immediately followed by a 2% downhill grade along a proposed highway...

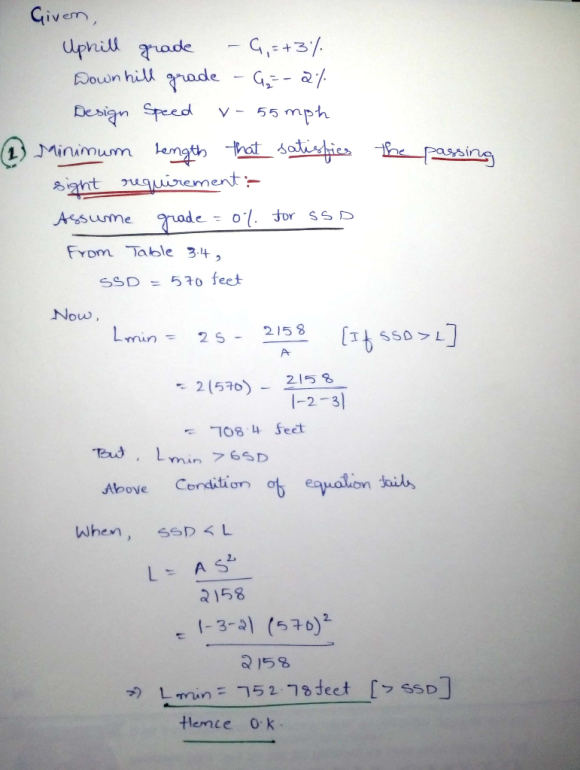

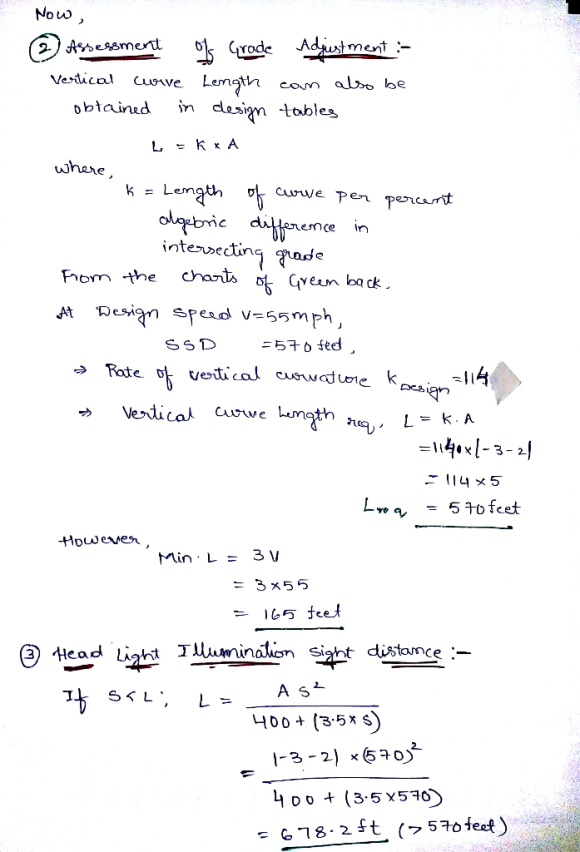

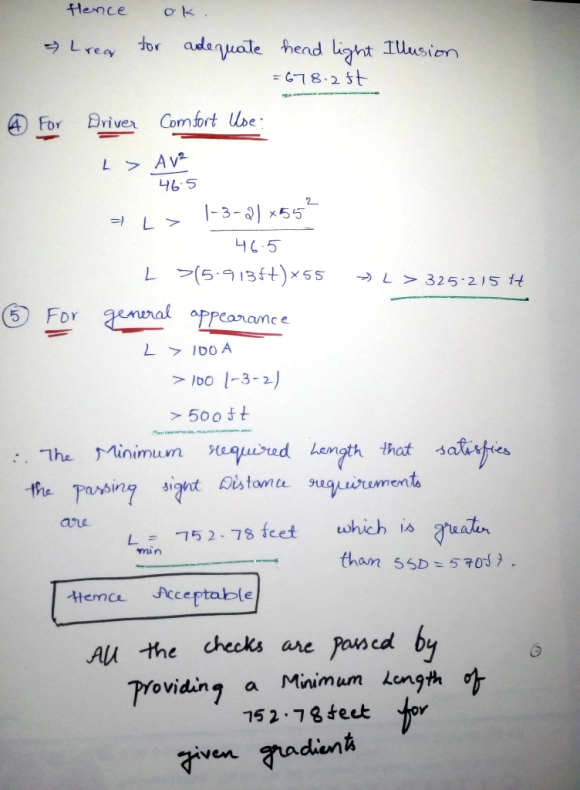

A 3% uphill grade is immediately followed by a 2% downhill grade along a proposed highway alignment.For a design speed of 55mph, find the minimum length of a vertical curve that satisfies the passing sight distance requirement. Use equation and show all calculations. Based on the result, would you restrict the passing maneuver and redesign the curve appropriately?

Solutions

Expert Solution
