Question

In: Computer Science

Implement the following in Classless IP Addressing in C programming using decimal number system (a) Compute...

Implement the following in Classless IP Addressing in C programming using decimal number system (a) Compute First Address, Last address and Number of address from given IP address and mask. Input is given by the user

Solutions

Expert Solution

code:

#include<stdio.h>
#include<math.h>
int main()
{
int f[4],l[4],m,g[4];
int t,z,n[4];
printf("enter the mask:");
scanf("%d",&m);
printf(" enter the ip address:");
scanf("%d",&g[0]);
scanf("%d",&g[1]);
scanf("%d",&g[2]);
scanf("%d",&g[3]);

t=32-m;
z=pow(2,t);//this is for calculating number of ips
if(t<=8)//this is for calculating subnet ip
{
n[0]=g[0];
n[1]=g[1];
n[2]=g[2];
n[3]=g[3]&255<<t;

}
if(t>8&&t<=16)//this is for calculating subnet ip
{
n[0]=g[0];
n[1]=g[1];
n[2]=g[2]&255<<t-8;
n[3]=0;

}
if(t>16&&t<=24)//this is for calculating subnet ip
{
n[0]=g[0];
n[1]=g[1]&255<<t-16;
n[2]=0;
n[3]=0;

}
if(t>24&&t<=32)//this is for calculating subnet ip
{
n[0]=g[0]&255<<t-24;
n[1]=0;
n[2]=0;
n[3]=0;

}
//this is for first ip address
f[3]=g[3]&n[3];
f[2]=g[2]&n[2];
f[1]=g[1]&n[1];
f[0]=g[0]&n[0];
//this is for last ip address
l[0]=(g[0])|!(n[0]);
l[1]=(g[1])|!(n[1]);
l[2]=(g[2])|!(n[2]);
l[3]=(g[3])|!(n[3]);
printf("Number of addresses:%d ",z);
printf("first address:%d . %d . %d . %d ",f[0],f[1],f[2],f[3]);
printf("last address:%d . %d . %d . %d",l[0],l[1],l[2],l[3]);
}

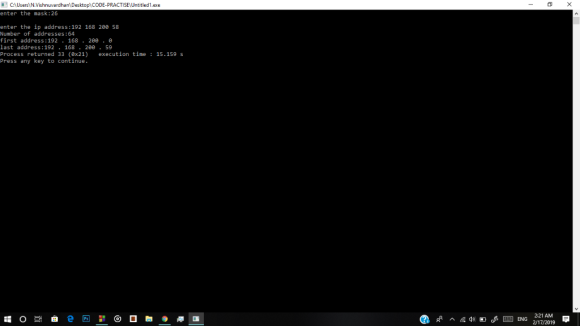

output:
