Question

In: Physics

A diverging lens with a focal length of -13 cm is placed 12 cm to the...

A diverging lens with a focal length of -13 cm is placed 12 cm to the right of a converging lens with a focal length of 21 cm . An object is placed 40 cm to the left of the converging lens. Where will the final image be located?Where will the image be if the diverging lens is 41 cm from the converging lens?

Solutions

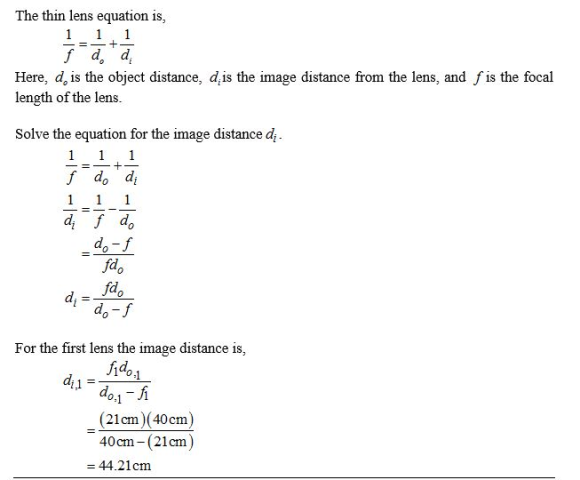

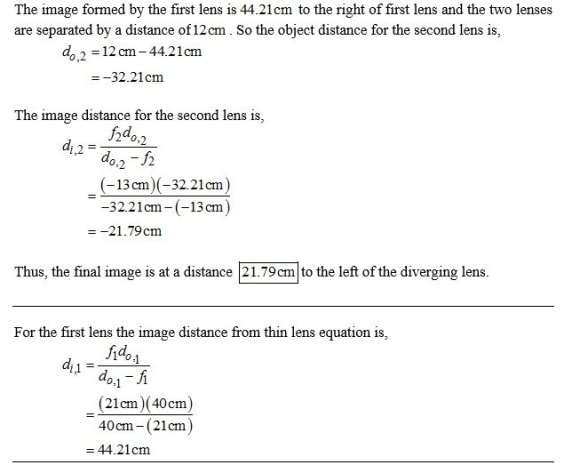

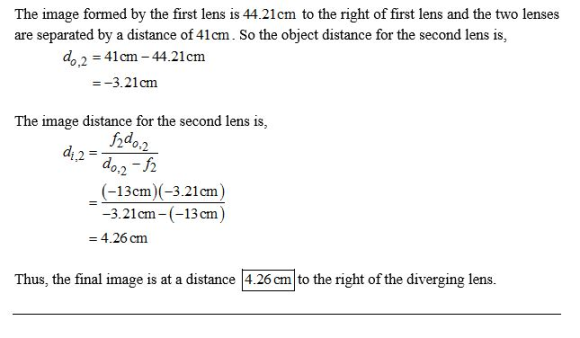

Expert Solution
