Question

In: Civil Engineering

The surface tension of a fluid depends upon the viscosity μ, bulk modulus EV, gravity g,...

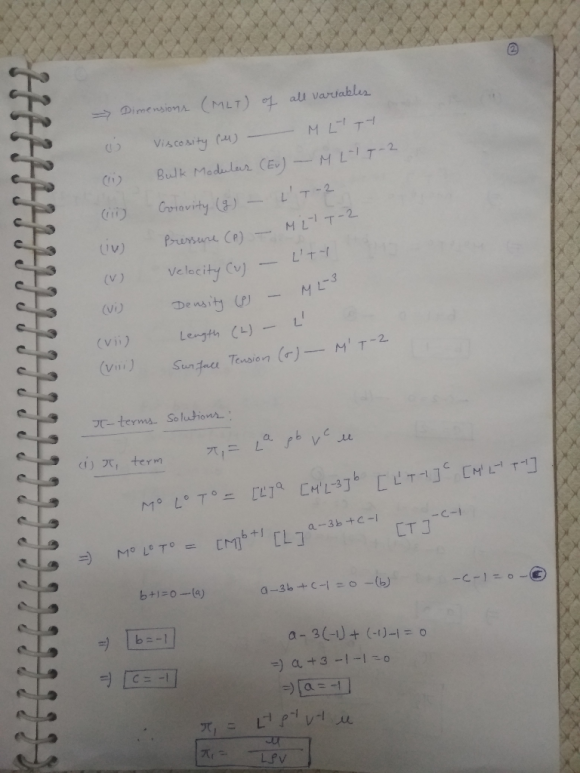

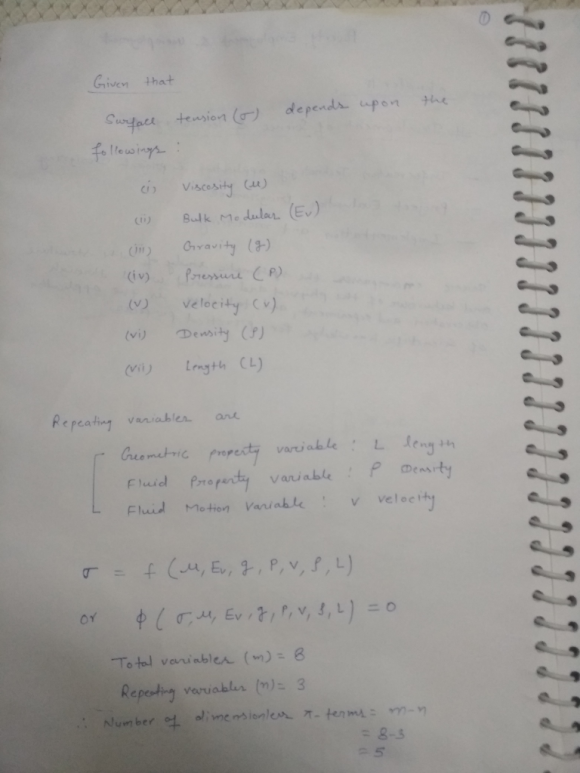

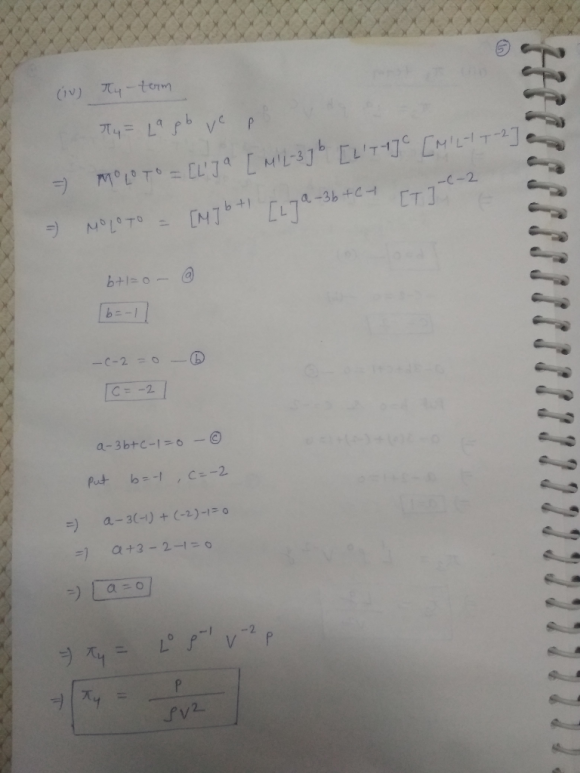

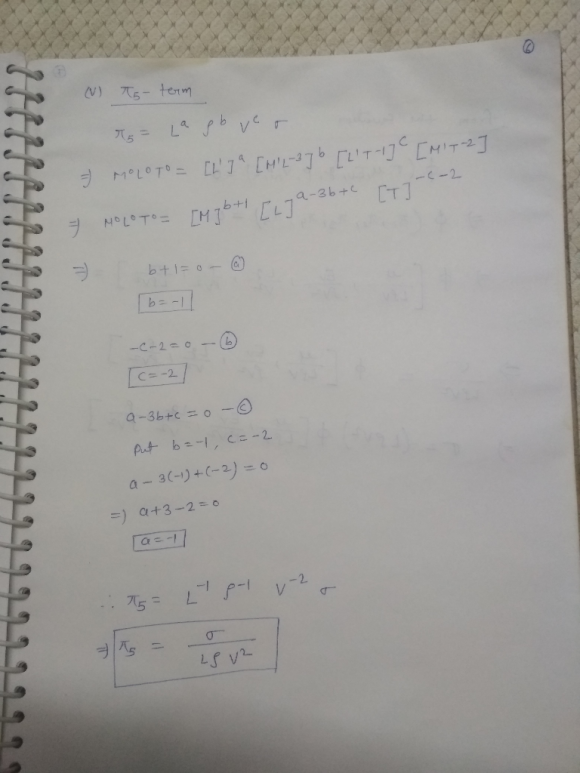

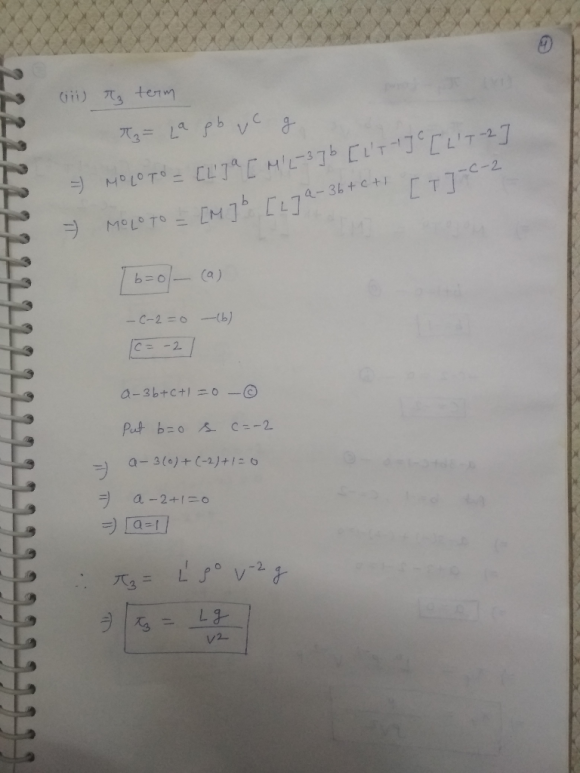

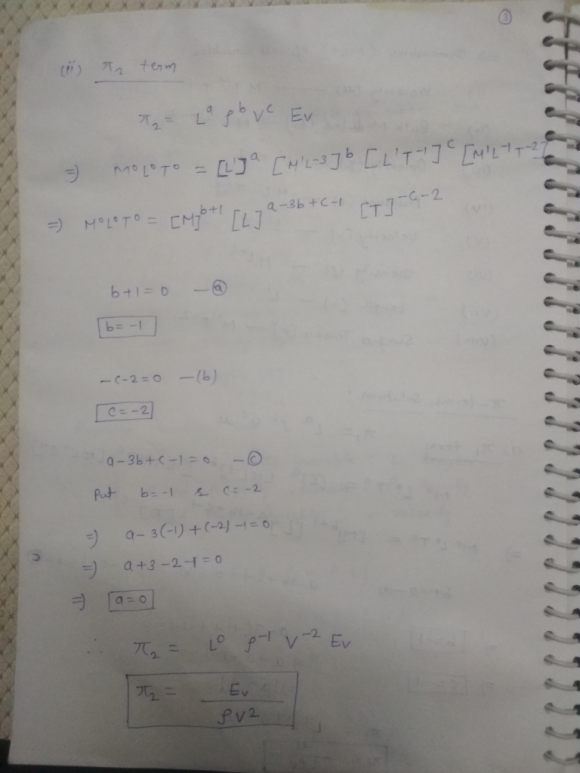

The surface tension of a fluid depends upon the viscosity μ, bulk modulus EV, gravity g, pressure p, velocity v, density Ƿ, and a characteristic length L. determine the dimensionless groupings. USE MLT and V, L, Ƿ as repeating variables. A your Pi terms among the common dimensionless groups in Fluid Mechanics?

Solutions

Expert Solution
