In: Computer Science
Complete the following: (With Details and example if needed)
Given set S = {-3, -2, 0, 1, 2, 4}
Relation R is a relation on S such that R = { (?, ?) | ? ∈ ?, ? ∈ ? ??? ?? ≥ 1}
1. Using roster method, what is R?
2. Show the digraph representation of R
3. Show the matrix representation of R
4. if the relation does not have the property, give an example of why:
- Is R reflexive?
- Is R symmetric?
-Is R antisymmetric?
- Is R transitive?
1). Relation R in roster method:-
R = { (-3,-3),(-2,-2),(1,1),(2,2),(4,4),(-3,-2),(-2,-3),(1,2),(2,1),(1,4),(4,1),(2,4),(4,2) }

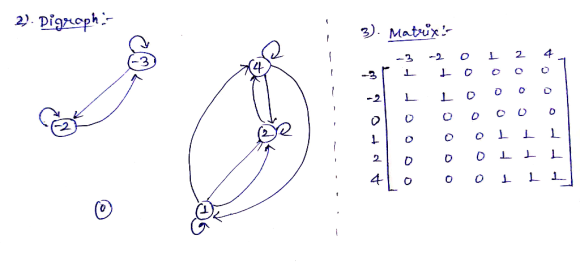

2). Diagraph:-
4). Is R reflexive?
Any relation is reflexive if for every element in set S is related to each other.
Relation R is non-Reflexive relation because 0 which is element of S is not related to 0 .
that is 0 * 0 is not greater or equal to 1.so , (0,0) doesn't belong to R.
Is R symmetric?
If for every (x,y) R, (y,x) must
also belongs to R then the relation R is symmetric relation.
Relation R is clearly symmetric relation.
proof :-
(x,y) R means that
xy>=1
xy >=1 can be written as yx>=1
yx>=1 means (y,x)R
therefore every (x,y)R , (y,x) also
belongs to R.
Hence, relation R is symmetric.
Is R antisymmetric?
Any relation R is antisymmetric if for every (x,y)R and
(y,x)
R then y =
x.
Clearly , from roster form we can see that (1,4) and (4,1) both are in R but 1 is not equal to 4.
Therefore, R is not antisymmetric.
Is R transitive?
Any relation R is transitive if for every (x,y)R and
(y,z)
R then (x,z)
must also belongs to R.
R is clearly Transitive relation.
Proof :-
(x,y) R means that
xy>=1
(y,z) R means that
yz>=1
now , either x , y and z are all negative or all positive .
suppose x, y and z are all negative then in that case xz>=1
so , (x,z)R.
suppose x,y and z are all positive then in that case xz>=1 so
, (x,z)R
so ,in all cases if (x,y) R and
(y,z)
R then (x,z)
also belongs to R.
Therefore , R is transitive relation.
