Question

In: Mechanical Engineering

1. You are to do a preliminary design study for a small demonstration steam turbine power...

1. You are to do a preliminary design study for a small demonstration steam turbine power plant.
- Steam will be provided by a small steam generator fired by natural gas.   - Your system will take in steam at 30 bar and 400 oC.
- The steam passes through a two stage turbine. At a pressure of 10 bars, the steam leaves the first stage of the turbine and will pass through a reheat loop in the steam generator which will boost the temperature back up to 400 oC at this pressure. The steam will then enter the second stage of the turbine.
- When the steam leaves the turbine, the quality should be at least 95% at the turbine exit / condenser inlet.
- The design condenser pressure is 0.70 bar.
- Heat is removed from the condenser and rejected to the environment through a cooling tower.

For the following parts use the design turbine power output of 2.5 kW.
d) What mass flow rate is required? (10 pts)

e) At what rate must heat be produced by natural gas burners in the steam generator to produce the steam at the turbine inlet, and how much heat must be produced to reheat the steam between the stages? For a heating rate range of 950-1150 BTU/scf and a cost of $8 per 100 cubic feet, what is the fuel cost per hour to run this unit? (10 pts)

f) What is the feed water pump power demand, and what is the BWR? (10 pts)

Solutions

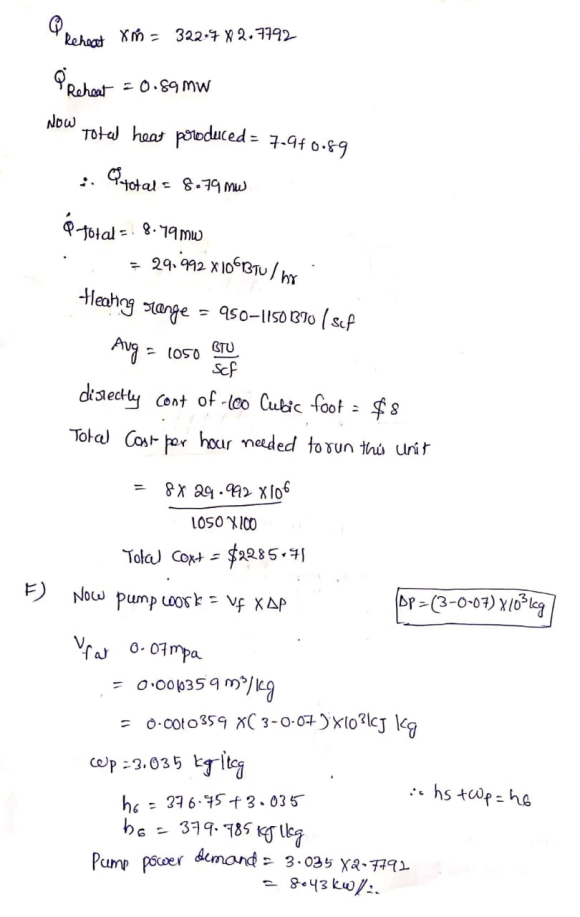

Expert Solution

P.S: If you are having any doubt, please comment here, I will surely reply you.Please provide your valuable feedback by a thumbsup. Your thumbsup is a result of our efforts. Thanks in advance!
