Hello There! I have a question to answer please, I don't understand it, it is about...

Hello There!

I have a question to answer please, I don't understand it, it is about data communication and networking "Wireshark"

Capture ICMP packets with “Wireshark” and analyze the results.

Capturing Basics and Filters

1_ Create a filter to show only HTTP traffic with destination port 80.

2_ Create a filter to exclude ARP and ICMP traffic from visualization.

3_ Create a filter to show DNS queries to a specific domain. TIP: Use the keyword contains to search a specific value in the payload.

I want to see screenshots please and outcomes,

Thanks!

Solutions

Expert Solution

The following shows only HTTP traffic with destination port 80.

filter used: http and tcp.dstport ==80.

-----------------------------------------------------------------

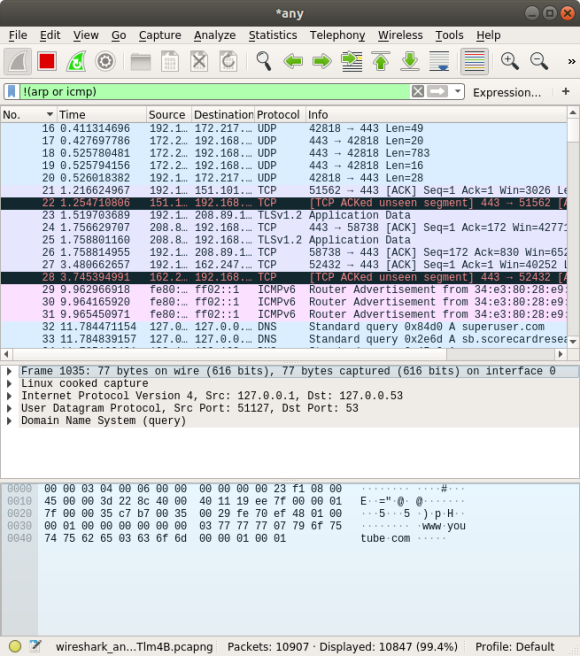

the following shows all the packets excluding ARP and ICMP

filter used: !(arp or icmp)

---------------------------------------------------------------------------

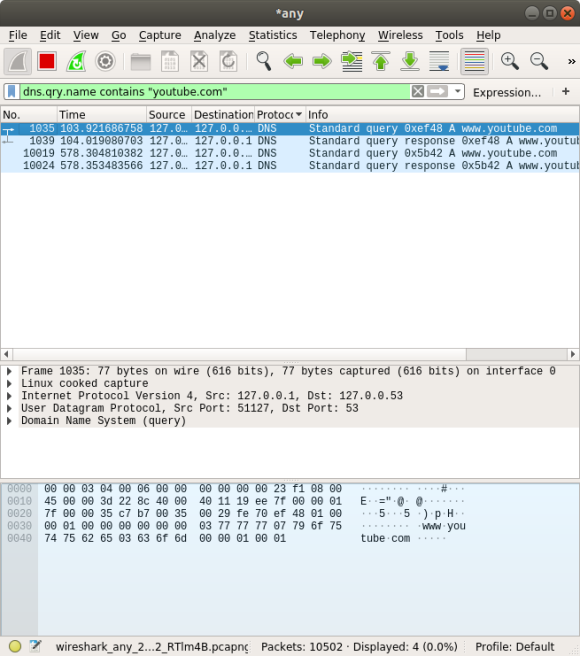

the following shows the dns queries to a specific domain (in this case "youtube.com")

filter used: dns.qry.name contains "youtube.com"
