Derive the expressions of the average load voltage and current in single-phase full-wave controlled rectifier (bridge...

  1. Derive the expressions of the average load voltage and current in single-phase full-wave controlled rectifier (bridge rectifier) and resistive load. Draw the waveforms of supply voltage, output voltage, output current and thyristor current.
  2. In a single-phase full-wave controlled rectifier (bridge rectifier) and resistive load, it is desired to get an average load voltage of 50 V. Determine the firing angle if the ac supply voltage is 150 V. If the average load power is 300W, calculate the average load current and. Design the thyristor.
  3. Derive the expressions of the average load voltage in single-phase full-wave controlled rectifier (bridge rectifier) and highly inductive load. Draw the waveforms of supply voltage, output voltage, output current and thyristor current.
  4. In a single-phase full-wave controlled rectifier (bridge rectifier) and resistive load, it is desired to get an average load voltage of 90 V. Determine the firing angle if the ac supply voltage is 230 V. If the average load power is 270 W, calculate the load current and. Design the thyristor.      Please solve all questions

Solutions

Expert Solution

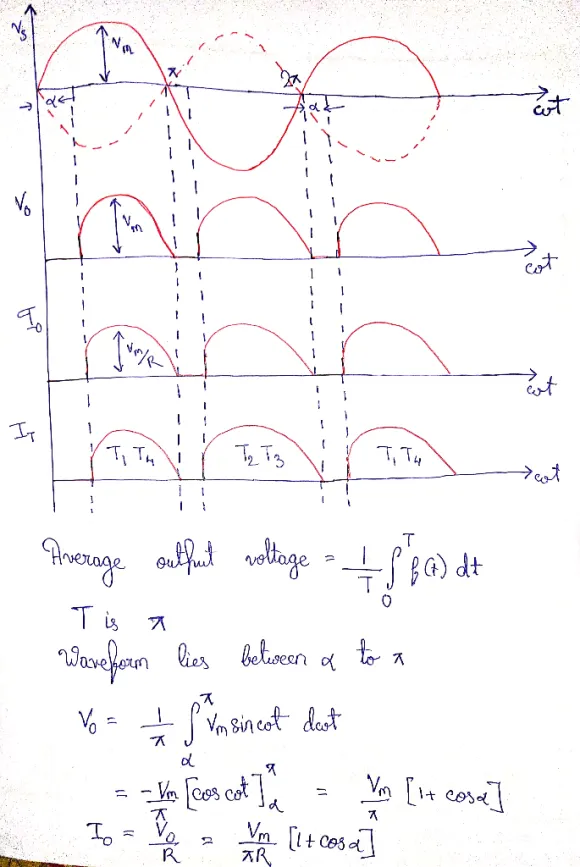

Manojponduru answered 1 year ago
