Superheated steam at 20 MPa, 640°C enters the turbine of a vapor power plant. The pressure...

Superheated steam at 20 MPa, 640°C enters the turbine of a vapor power plant. The pressure at the exit of the turbine is 0.5 bar, and liquid leaves the condenser at 0.4 bar at 75°C. The pressure is increased to 20.1 MPa across the pump. The turbine and pump have isentropic efficiencies of 81 and 85%, respectively. Cooling water enters the condenser at 20°C with a mass flow rate of 70.7 kg/s and exits the condenser at 38°C. For the cycle, determine: (a) the mass flow rate of steam, in kg/s. (b) the percent thermal efficiency.

Solutions

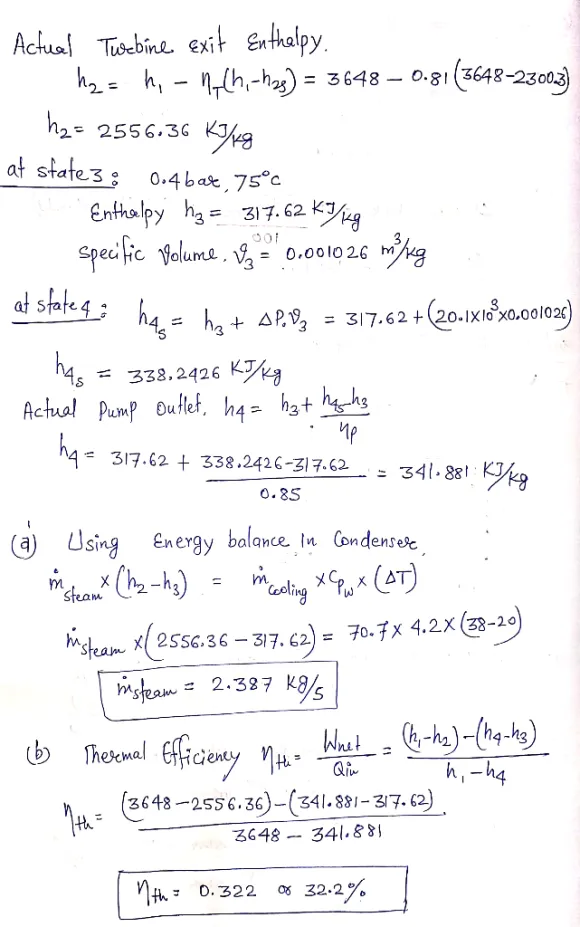

Expert Solution

samet mamat answered 2 years ago
Next > < Previous

Related Solutions

Superheated steam at 8 MPa and 480°C leaves the steam generator of a vapor power plant....
Superheated steam at 8 MPa and 480°C leaves the steam generator of a vapor power plant. Heat transfer and frictional effects in the line connecting the steam generator and the turbine reduce the pressure and temperature at the turbine inlet to 7.7 MPa and 440°C, respectively. The pressure at the exit of the turbine is 10 kPa, and the turbine operates adiabatically. Liquid leaves the condenser at 8 kPa, 36°C. The pressure is increased to 8.6 MPa across the pump....
Superheated steam at 8 MPa and 480°C leaves the steam generator of a vapor power plant....
Superheated steam at 8 MPa and 480°C leaves the steam generator of a vapor power plant. Heat transfer and frictional effects in the line connecting the steam generator and the turbine reduce the pressure and temperature at the turbine inlet to 7.3 MPa and 440°C, respectively. The pressure at the exit of the turbine is 10 kPa, and the turbine operates adiabatically. Liquid leaves the condenser at 8 kPa, 36°C. The pressure is increased to 8.6 MPa across the pump....
Superheated vapor enters the turbine at 10 MPa, 480°C, and the condenser pressure is 7.5 kPa...
Superheated vapor enters the turbine at 10 MPa, 480°C, and the condenser pressure is 7.5 kPa of a steam Rankine power cycle. Isentropic efficiencies of the turbine and pump are 84% and 73%, respectively. Determine for the cycle a. Sketch the cycle of a T-s diagram. Indicate the isobars with their values and the values for temperature and entropy. b. The heat transfer to the working fluid passing through the steam generator, in kJ per kg of steam flowing. c....
Superheated vapor enters the turbine at 10 MPa, 480°C, and the condenser pressure is 7.5 kPa...
Superheated vapor enters the turbine at 10 MPa, 480°C, and the condenser pressure is 7.5 kPa of a steam Rankine power cycle. Isentropic efficiencies of the turbine and pump are 84% and 73%, respectively. Determine for the cycle a. Sketch the cycle of a T-s diagram. Indicate the isobars with their values and the values for temperature and entropy. b. The heat transfer to the working fluid passing through the steam generator, in kJ per kg of steam flowing. c....
In an ideal Rankine cycle with reheat, superheated steam vapor enters the turbine at 10 MPa...
In an ideal Rankine cycle with reheat, superheated steam vapor enters the turbine at 10 MPa and 480 °C, while the condenser pressure is 6 kPa. Steam expands through the first-stage turbine to 0.7 MPa and then is reheated to 480 °C a) Calculate the total heat addition, net work of the cycle, heat extraction through condenser, and thermal efficiency of this ideal Rankine cycle with reheat. [25] b) Calculate the same quantities assuming that the pump and each turbine...
In an ideal Rankine cycle with reheat, superheated steam vapor enters the turbine at 10 MPa...
In an ideal Rankine cycle with reheat, superheated steam vapor enters the turbine at 10 MPa and 480 °C, while the condenser pressure is 6 kPa. Steam expands through the first-stage turbine to 0.7 MPa and then is reheated to 480 °C a) For a pressure of 7 bar right after the first stage turbine in the ideal Rankine cycle, create two plots: thermal efficiency as a function of the reheat temperature from 200 °C to 500 °C; and the...
In an ideal Rankine cycle with reheat, superheated steam vapor enters the turbine at 10 MPa...
In an ideal Rankine cycle with reheat, superheated steam vapor enters the turbine at 10 MPa and 480 °C, while the condenser pressure is 6 kPa. Steam expands through the first-stage turbine to 0.7 MPa and then is reheated to 480 °C. Calculate the total heat addition, net work of the cycle, heat extraction through condenser, and thermal efficiency of this ideal Rankine cycle with reheat
Superheated steam enters a turbine at 3 MPa, 550oC, and exits at 0.01 MPa. a) If...
Superheated steam enters a turbine at 3 MPa, 550oC, and exits at 0.01 MPa. a) If the process is reversible adiabatic (isentropic), find the final temperature (T2s), the final enthalpy (h2s) of the steam, and the turbine work (Wt,s). b) What is Sgen for the above process? c) If the isentropic efficiency is 90%, find the actual final temperature (T2a) and calculate Sgen? d) Plot process (a) and (c) on a Ts diagram.
Steam enters the high-pressure turbine of a steam power plant that operates on the ideal reheat...
Steam enters the high-pressure turbine of a steam power plant that operates on the ideal reheat Rankine cycle at 6 MPa and 500°C and leaves as saturated vapor. Steam is then reheated to 400°C before it expands to a pressure of 10 kPa. Heat is transferred to the steam in the boiler at a rate of 6*104 kW. Steam is cooled in the condenser by the cooling water from a nearby river, which enters the condenser at 7°C. Show the...
Consider steam in an ideal Rankine cycle. The saturated vapor enters the turbine at 8.0 MPa.
 Consider steam in an ideal Rankine cycle. The saturated vapor enters the turbine at 8.0 MPa. Saturated liquid exits the condenser at P = 0.008 MPa. The net power output of the cycle is 100 MW. determine the thermal efficiency of the cycle
