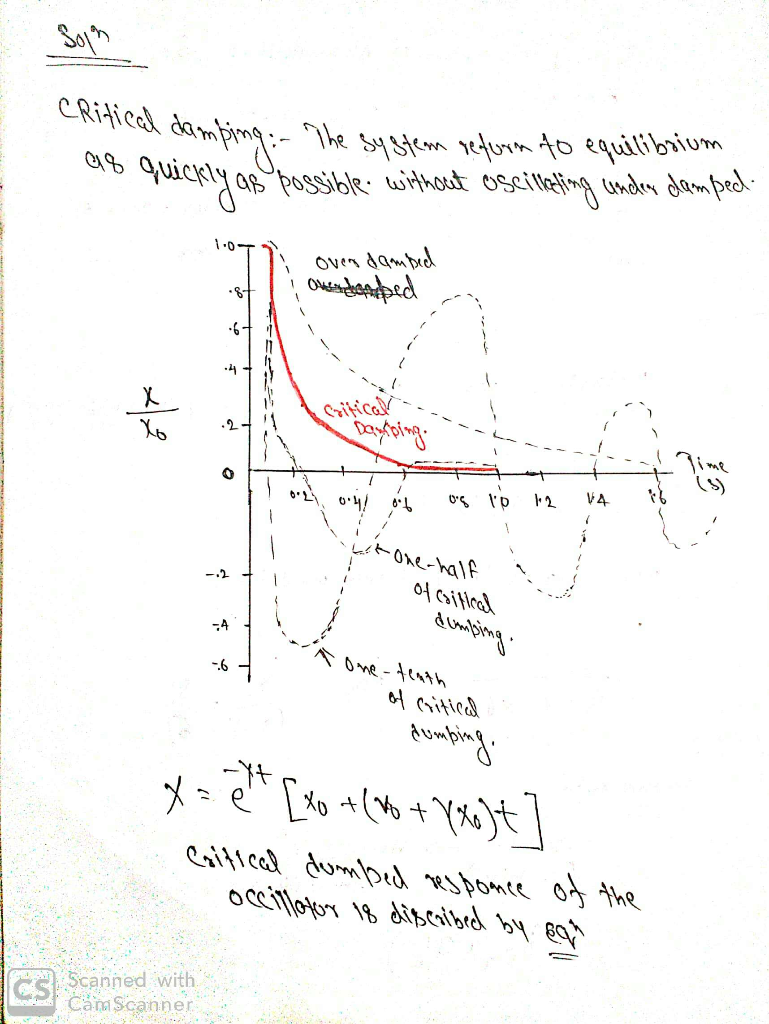

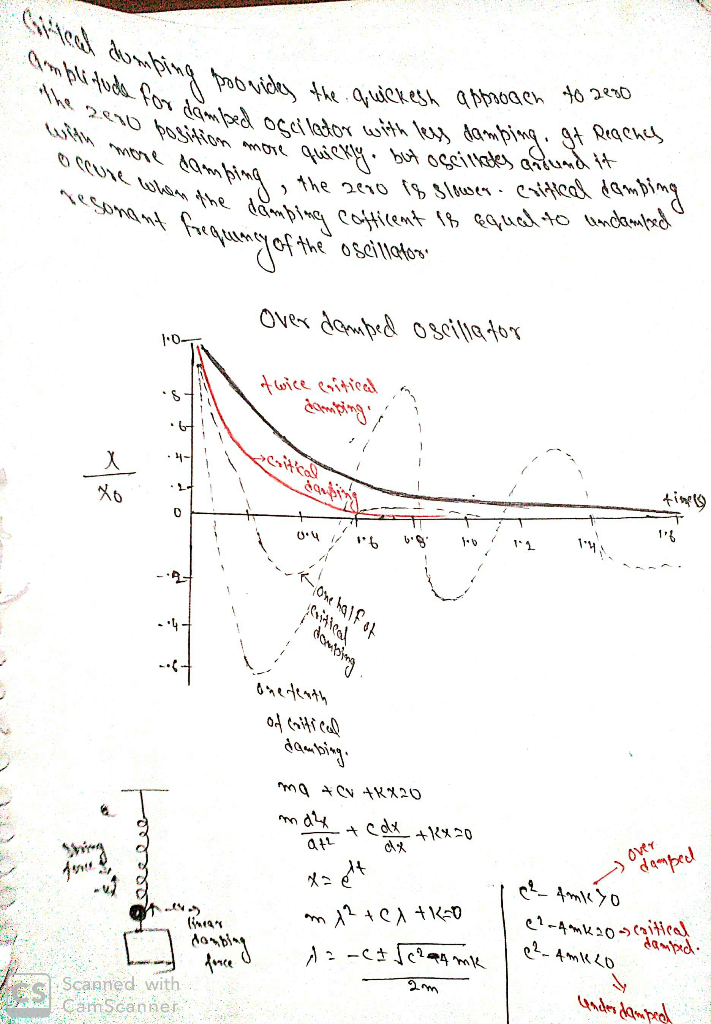

show that critical damping provides the quickest approach to zero amplitude. With less damping (“underdamping”), it...

show that critical damping provides the quickest approach to zero amplitude. With less damping (“underdamping”), it reaches the zero position more quickly, but oscillates around it

Please explain in detail

Expert Solution

please like
