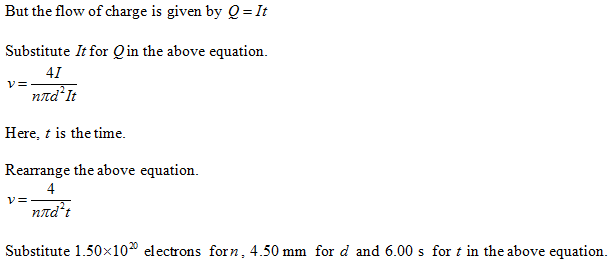

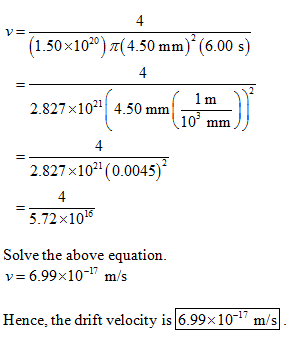

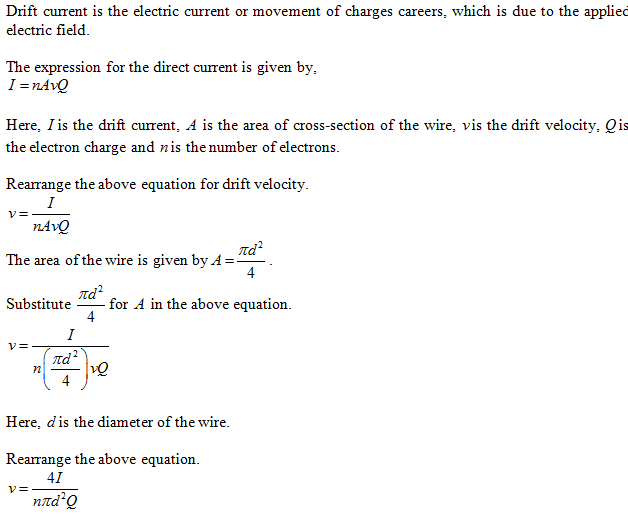

1.50 × 1020electrons flow through a cross section of a 4.50-mm-diameter iron wire in 6.00 s...

1.50 × 1020electrons flow through a cross section of a 4.50-mm-diameter iron wire in 6.00 s .

What is the electron drift speed?

Expert Solution

genius_generous answered 2 hours ago

A 580-mm long tungsten wire, with a 0.046-mm-diameter circular cross section, is wrapped around in the...

A 580-mm long tungsten wire, with a 0.046-mm-diameter circular cross section, is wrapped around in the shape of a coil and used as a filament in an incandescent light bulb. When the light bulb is connected to a battery, a current of 0.526 A is measured through the filament. (Note: tungsten has a resistivity of 4.9 × 10-8 ? • m.) How many electrons pass through this filament in 5 seconds? How many electrons pass through this filament in 5...

Part A How many conduction electrons are there in a 4.50 mm diameter gold wire that...

Part A How many conduction electrons are there in a 4.50 mm diameter gold wire that is 30.0 cm long? Part B How far must the sea of electrons in the wire move to deliver -24.0 nC of charge to an electrode? Express your answer with the appropriate units.

A 2.8 mm -diameter copper wire carries a 31 Acurrent (uniform across its cross section). A)...

A 2.8 mm -diameter copper wire carries a 31 Acurrent (uniform across its cross section). A) Determine the magnetic field at the surface of the wire. B) Determine the magnetic field inside the wire, 0.50 mm below the surface. C) Determine the magnetic field outside the wire 2.5 mm from the surface.

8.0 x 10^15 electrons flow through a cross section of silver wire in 340 us with...

8.0 x 10^15 electrons flow through a cross section of silver wire in 340 us with a drift speed of 7.6 x 10^-4m/s . What is the diameter of the wire?

Water flows through a cast iron pipe with a diameter of 30 mm. The pipe is...

Water flows through a cast iron pipe with a diameter of 30 mm. The pipe is inclined at an angle of 3 degrees from horizontal and is 40 m long. The water flows due to gravity only. What is the maximum volume flow rate of the water? You may ignore any minor loses.

Consider an electron beam of uniform circular cross-section with a diameter of 1 mm. The electrons...

Consider an electron beam of uniform circular cross-section with a diameter of 1 mm. The electrons are accelerated from the cathode to the anode, which are separated by 1 m. The electrons are generated at the cathode and therefore have negligible velocity at this position. The electrons accelerate at a rate of 108 ?/?2 between the cathode and anode. The current density at the anode is 104 ?/?2 . Find the current density as a function of position between the...

The figure shows wire 1 in cross section; the wire is long and straight, carries a...

The figure shows wire 1 in cross section; the wire is long and straight, carries a current of 4.20 mA out of the page, and is at distance d1 = 2.61 cm from a surface. Wire 2, which is parallel to wire 1 and also long, is at horizontal distance d2 = 5.22 cm from wire 1 and carries a current of 7.06 mA into the page. What is the x component of the magnetic force per unit length on...

Consider the cylindrical wire of radius R= 5mm having current density through a cross section varies...

Consider the cylindrical wire of radius R= 5mm having current density through a cross section varies with radial distance ‘r’ as J= (3x 109 A/m4 ) r2 , and ‘r’ is in meters. What is the current through the outer portion of the wire between radial distances r=0.75R and r=R.

An axial flow fan has a hub diameter of 1.50 m and a tip diameter of...

An axial flow fan has a hub diameter of 1.50 m and a tip diameter of 2.0 m. It rotates at 18 rad/s and when handling 5.0?^(3)s^(-1) of air, develops a theoretical head equivalent to 17mm of water. Determine the blade outlet and inlet angles at the hub and the tip. Assume that the velocity of flow is independent of radius and that the energy transfer per unit length of blade is constant. Assume density of air is1.2 kg/m^3

A current carrying gold wire has diameter of 0.84 mm. the electric field in the wire...

A current carrying gold wire has diameter of 0.84 mm. the electric field in the wire is 0.49 V/m. What is a The current carried by the wire? b The potential difference between two points in the wire 6.4 m apart? c The resistance of a 6.4 m length of this wire.
