Draw orbital diagrams for atoms with the following electron configurations: 1s22s22p63s23p64s23d7 Define the following terms and...

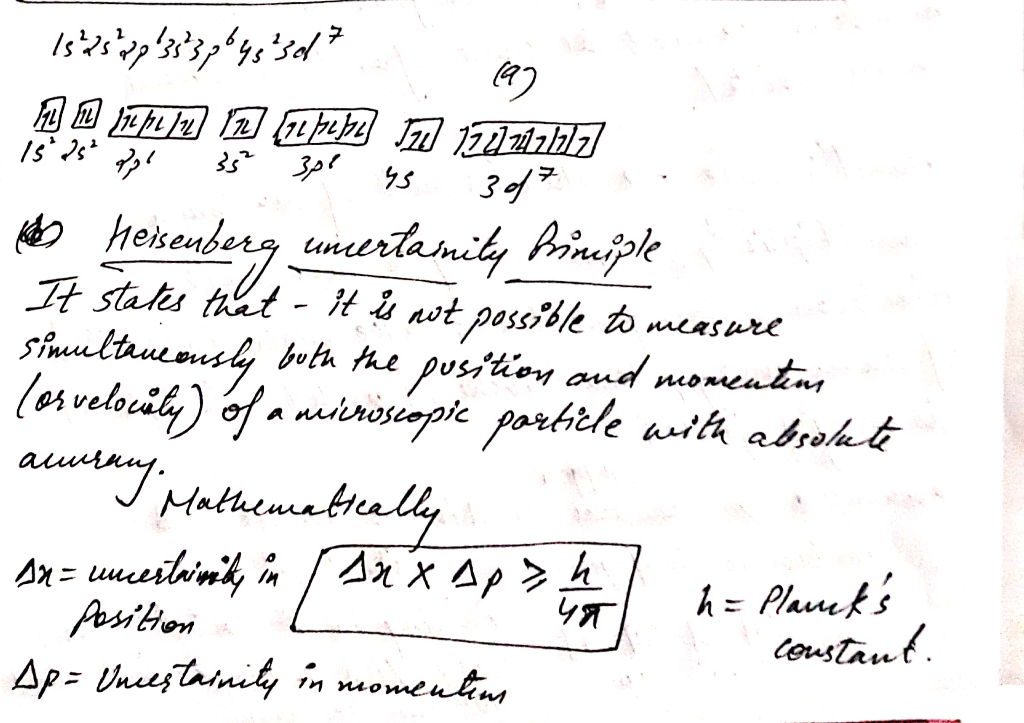

Draw orbital diagrams for atoms with the following electron configurations:

1s²2s²2p⁶3s²3p⁶4s²3d⁷

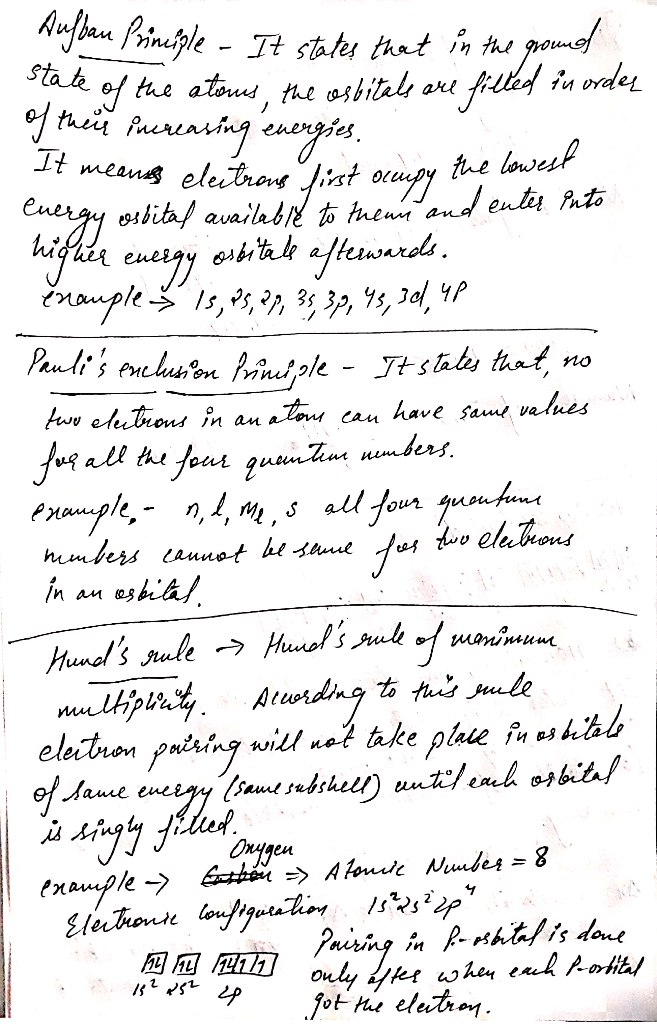

Define the following terms and principles: (8 points)
1. Heisenberg uncertainty principle
2. Aufbau principle
3. Pauli exclusion principle
4. Hund’s rule

Expert Solution

queen_honey_blossom answered 2 hours ago

Write the electron configurations and orbital spin diagrams for the neutral atom and the kon of...

Write the electron configurations and orbital spin diagrams for the neutral atom and the kon of the element having the atomic number 12. Based on this information explain the valence number of electrons in the elements responsible for the ion's charge.

Portions of orbital diagrams representing the ground-state electron configurations of certain elements are shown here: ?...

Portions of orbital diagrams representing the ground-state electron configurations of certain elements are shown here: ? ? ?? ? ?? ? ? ?? ? (a) (b) (c) ?? ? ? ? ? ? ? ? ?? (d) (e) ?? ?? ?? ?? ?? (f) Which violate the Pauli exclusion principle? a b c d e f Which violate Hund's rule? a b c d e f

Identify the atoms that correspond to each of the following electron configurations. Then, write the Lewis...

Identify the atoms that correspond to each of the following electron configurations. Then, write the Lewis symbol for the common ion formed from each atom: (a) 1s22s22p5 (b) 1s22s22p63s2 (c) 1s22s22p63s23p64s23d10 (d) 1s22s22p63s23p64s23d104p4 (e) 1s22s22p63s23p64s23d104p1

Group the following electron configurations in pairs that would represent similar chemical properties of their atoms:...

Group the following electron configurations in pairs that would represent similar chemical properties of their atoms: 1s22s22p63s2 1s22s22p3 1s22s22p63s23p64s23d104p6 1s22s2 1s22s22p6 1s22s22p63s23p3

how do you draw orbital diagrams

The observed electron configurations for Cr and Cu both occur by moving an electron from the orbital of a p sublevel to an orbital of the d sublevel.

True or false:The observed electron configurations for Cr and Cu both occur by moving an electron from the orbital of a p sublevel to an orbital of the d sublevel.

Present full electron configuration with the orbital filling diagram for the following atoms or ions. P3-...

Present full electron configuration with the orbital filling diagram for the following atoms or ions. P3- B3+ O2- Ne- Na+ F2- Si

The electron configurations described in this chapter all refer to gaseous atoms in their ground states....

The electron configurations described in this chapter all refer to gaseous atoms in their ground states. An atom may absorb a quantum of energy and promote one of its electrons to a higher-energy orbital. When this happens, we say that the atom is in an excited state. The electron configurations of some excited atoms are given. Identify these atoms and write their ground-state configurations. (c) 1s22s22p64s1 (d) [Ar]4s13d104p4 (e) [Ne]3s23p43d1

Classify each orbital diagram for ground-state electron configurations by the rule or principle it violates.

Part A Classify each orbital diagram for ground-state electron configurations by the rule or principle it violates. Drag the appropriate items to their respective bins.

For the following molecules draw their lewis structure, show their orbital diagrams before and after hybridization,...

For the following molecules draw their lewis structure, show their orbital diagrams before and after hybridization, determine what hybrid orbitals are formed in the molecule, and label the bonds in the lewis structure as sigma or pi bonds CF2O CH3(CH)2CH3 C2N2 CH3CCH CHONH2

Question
