In: Math
I want to know how to solve the following in excel. What is the x value and what is the Y value using the data table below?
Wal-Mart is the second largest retailer in the world. The data file (Wal-Mart Revenue 2004-2009.xlsx) is posted below the case study one file, and it holds monthly data on Wal-Mart’s revenue, along with several possibly related economic variables.
A. Develop a linear regression model to predict Wal-Mart revenue, using CPI as the only independent variable.
B. Develop a linear regression model to predict Wal-Mart revenue, using Personal Consumption as the only independent variable.
C. Develop a linear regression model to predict Wal-Mart revenue, using Retail Sales Index as the only independent variable.
D. Which of these three models is the best? Use R-square values, Significance F values, p-values and other appropriate criteria to explain your answer.
E. Generate a scatter plot, residual plot and normal probability plot for the best model in part (d) and comment on what you see.
Date | Wal Mart Revenue | CPI | Personal Consumption | Retail Sales Index | December |
1/30/2004 | 12.131 | 554.9 | 7977730 | 281463 | 0 |
2/27/2004 | 13.628 | 557.9 | 8005878 | 282445 | 0 |
3/31/2004 | 16.722 | 561.5 | 8070480 | 319107 | 0 |
4/29/2004 | 13.98 | 563.2 | 8086579 | 315278 | 0 |
5/28/2004 | 14.388 | 566.4 | 8196516 | 328499 | 0 |
6/30/2004 | 18.111 | 568.2 | 8161271 | 321151 | 0 |
7/27/2004 | 13.764 | 567.5 | 8235349 | 328025 | 0 |
8/27/2004 | 14.296 | 567.6 | 8246121 | 326280 | 0 |
9/30/2004 | 17.169 | 568.7 | 8313670 | 313444 | 0 |
10/29/2004 | 13.915 | 571.9 | 8371605 | 319639 | 0 |
11/29/2004 | 15.739 | 572.2 | 8410820 | 324067 | 0 |
12/31/2004 | 26.177 | 570.1 | 8462026 | 386918 | 1 |
1/21/2005 | 13.17 | 571.2 | 8469443 | 293027 | 0 |
2/24/2005 | 15.139 | 574.5 | 8520687 | 294892 | 0 |
3/30/2005 | 18.683 | 579 | 8568959 | 338969 | 0 |
4/29/2005 | 14.829 | 582.9 | 8654352 | 335626 | 0 |
5/25/2005 | 15.697 | 582.4 | 8644646 | 345400 | 0 |
6/28/2005 | 20.23 | 582.6 | 8724753 | 351068 | 0 |
7/28/2005 | 15.26 | 585.2 | 8833907 | 351887 | 0 |
8/26/2005 | 15.709 | 588.2 | 8825450 | 355897 | 0 |
9/30/2005 | 18.618 | 595.4 | 8882536 | 333652 | 0 |
10/31/2005 | 15.397 | 596.7 | 8911627 | 336662 | 0 |
11/28/2005 | 17.384 | 592 | 8916377 | 344441 | 0 |
12/30/2005 | 27.92 | 609.4 | 8955472 | 406510 | 1 |
1/27/2006 | 14.555 | 573.9 | 9034368 | 322222 | 0 |
2/23/2006 | 16.87 | 595.2 | 9079246 | 318184 | 0 |
3/31/2006 | 16.639 | 598.6 | 9123848 | 366989 | 0 |
4/28/2006 | 17.2 | 603.5 | 9175181 | 357334 | 0 |
5/25/2006 | 16.901 | 606.5 | 9238576 | 380085 | 0 |
6/30/2006 | 21.47 | 607.8 | 9270505 | 373279 | 0 |
7/28/2006 | 16.542 | 609.6 | 9338876 | 368611 | 0 |
8/29/2006 | 16.98 | 610.9 | 9352650 | 382600 | 0 |
9/28/2006 | 20.091 | 607.9 | 9348494 | 352686 | 0 |
10/20/2006 | 16.583 | 604.6 | 9376027 | 354740 | 0 |
11/24/2006 | 18.761 | 603.6 | 9410758 | 363468 | 0 |
12/29/2006 | 28.795 | 604.5 | 9478531 | 424946 | 1 |
1/26/2007 | 16.1 | 606.3 | 9540335 | 332797 | 0 |
2/23/2007 | 17.984 | 594.6 | 9500318 | 327686 | 0 |
3/30/2007 | 18.939 | 599.3 | 9547774 | 376491 | 0 |
4/27/2007 | 22.47 | 613.3 | 9602393 | 366936 | 0 |
5/25/2007 | 19.201 | 642.8 | 9669845 | 389687 | 0 |
6/29/2007 | 23.77 | 623.9 | 9703817 | 382781 | 0 |
7/27/2007 | 18.942 | 625.6 | 9776564 | 378113 | 0 |
8/31/2007 | 19.38 | 626.9 | 9791220 | 392125 | 0 |
9/28/2007 | 22.491 | 623.9 | 9786798 | 362211 | 0 |
10/26/2007 | 18.983 | 619.9 | 9816093 | 364265 | 0 |
11/30/2007 | 21.161 | 620.6 | 9931068 | 372970 | 0 |
12/28/2007 | 31.245 | 642.5 | 9953178 | 434488 | 1 |
1/25/2008 | 19.923 | 623.4 | 10018937 | 342422 | 0 |
2/29/2008 | 21.512 | 622.3 | 10146599 | 344464 | 0 |
3/28/2008 | 19.023 | 626.9 | 10197093 | 339463 | 0 |
4/25/2008 | 20.178 | 651.2 | 10255207 | 388158 | 0 |
5/30/2008 | 21.9 | 636.1 | 10326976 | 378653 | 0 |
6/27/2008 | 21.24 | 638.7 | 10363123 | 397579 | 0 |
7/25/2008 | 22.1 | 640.2 | 10440525 | 394488 | 0 |
8/29/2008 | 20.981 | 641.9 | 10456119 | 389780 | 0 |
9/26/2008 | 20.419 | 643.2 | 10451414 | 403812 | 0 |
10/31/2008 | 20 | 641.2 | 10482584 | 373978 | 0 |
11/28/2008 | 21.022 | 637.9 | 10521902 | 381932 | 0 |
12/26/2008 | 32.85 | 656.9 | 10508628 | 443677 | 1 |
1/30/2009 | 19.784 | 637.8 | 10578596 | 350195 | 0 |
2/27/2009 | 20.962 | 639.7 | 10714428 | 353997 | 0 |
3/27/2009 | 22.951 | 638.9 | 10768153 | 356183 | 0 |
4/24/2009 | 22.062 | 643.7 | 10829987 | 351032 | 0 |
5/29/2009 | 20.856 | 648.1 | 10906349 | 354928 | 0 |
6/26/2009 | 23.700 | 649.4 | 10944809 | 395869 | 0 |
7/31/2009 | 24.413 | 651.4 | 11027165 | 389656 | 0 |
We are asked to perform regression analysis ,so we can use excel.
We have to predict Wal mart revenue using the variable CPI , Personal Consumption , and Retail Sales Index
So here Y is Wal-Mart revenue and x values are CPI , Personal Consumption , and Retail Sales Index
A. Develop a linear regression model to predict Wal-Mart revenue, using CPI as the only independent variable.
First enter the data sets Wal-Mart revenue and CPI into excel.
Then go to Data menu ---> Data analysis ---> Regression .
Plug the inputs as shown below ,
( If you have selected column headings ,then you must check the box for Labels )
Select the boxes for Residual plots and Normal probability plots and then click on OK.
The output will be appeared as follow..
The linear regression model : Y = -39.0413 + 0.0959*X OR Wal mart revenue = -39.0413 +0.0959*CPI
Part b) Develop a linear regression model to predict Wal-Mart revenue, using Personal Consumption as the only independent variable.

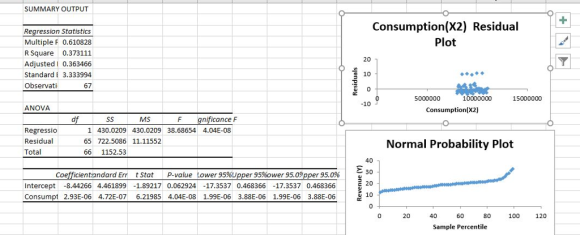

Follow the same steps as we did in part a) just change the x variable CPI to Personal Consumption , the output will be appear as follows
The linear regression model : Y = -8.4427 + 0.000003*X OR Wal mart revenue = -8.4427 +0.000003*Personal Consumption
Part C.) Develop a linear regression model to predict Wal-Mart revenue, using Retail Sales Index as the only independent variable.

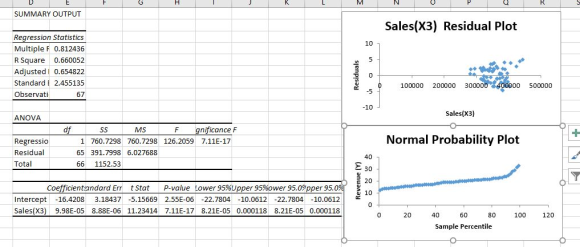

Follow the same steps as we did in part a) just change the x variable CPI to Retail Sales Index , the output will be appear as follows
The linear regression model : Y = -16.4208 + 0.0001*X OR Wal mart revenue = -16.4208 +0.0001*Retail Sales Index
Part D) Which of these three models is the best? Use R-square values, Significance F values, p-values and other appropriate criteria to explain your answer.

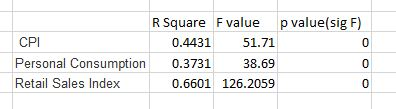

The p-values ( significance F value ) of all models are approximately 0 , therefore all models are significant.
But R square for model Retail sales index is large , therefore model Wal mart revenue = -16.4208 +0.0001*Retail Sales Index is the best for prediction of Wal Mart revenue.
Part E). Generate a scatter plot, residual plot and normal probability plot for the best model in part (d) and comment on what you see.

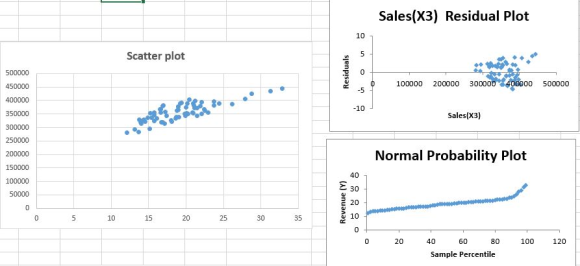

Select Wal mart revenue and Retail Sales Index data set ( only number ) thenGo to Insert option --->Charts ---> select Insert Scatter option .. Scatter plot will be appeared as follows , we already have residual and normal probability plot with the regression analysis output.
From the scatter plot we can conclude that there is strong positive correlation between the variables Wal mart revenue and Retail Sales Index
From normal probability plot we can conclude that both data set follows the normal distribution.
From residual plot we can say that linear regression model : Wal mart revenue = -16.4208 +0.0001*Retail Sales Index is appropriate.( since points are randomly and equally dispersed around the both sides of horizontal axis)
