An electron of kinetic energy 1.69 keV circles in a plane perpendicular to a uniform magnetic...

An electron of kinetic energy 1.69 keV circles in a plane perpendicular to a uniform magnetic field. The orbit radius is 20.1 cm. Find (a) the electron's speed, (b) the magnetic field magnitude, (c) the circling frequency, and (d) the period of the motion.

Expert Solution

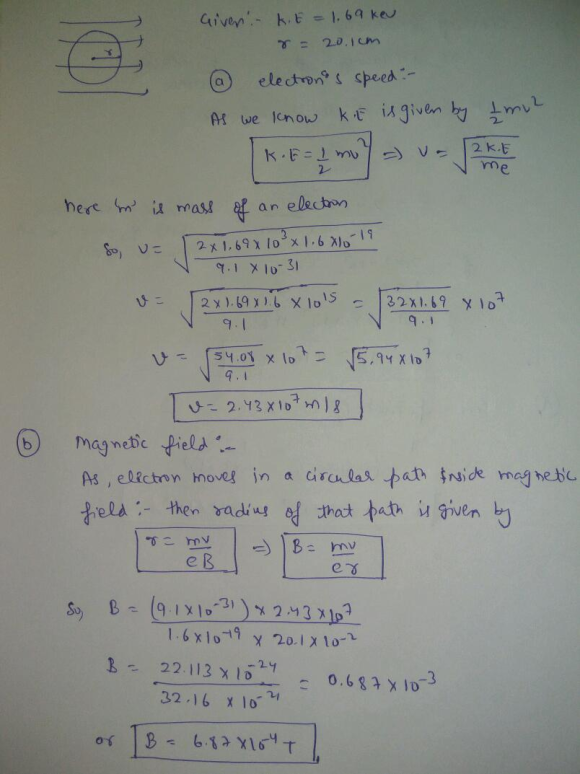

Given KE is in Kev ,first convert it into joules using 1ev=1.6×10^(-19).after that using forumla of K.E=1/2(mv^2) , velocity can be find out.

In part b) as Ques says electron moves in a circular path ,then ,it's radius is given by r=m×v/(e×B).From this magnetic field comes out to be B=m×v/(e×r)

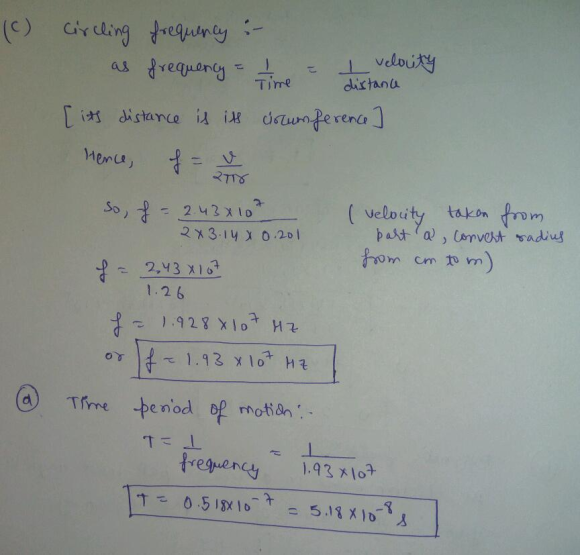

Similarly for part c and d formula is given from that we can find out the values that to be found.

genius_generous answered 1 month ago

An electron of kinetic energy 0.972 keV circles in a plane perpendicular to a uniform magnetic...

An electron of kinetic energy 0.972 keV circles in a plane perpendicular to a uniform magnetic field. The orbit radius is 26.9 cm. Find (a) the electron's speed, (b) the magnetic field magnitude, (c) the circling frequency, and (d) the period of the motion.

An electron of kinetic en- ergy 1.20 keV circles in a plane per- pendicular to a...

An electron of kinetic en- ergy 1.20 keV circles in a plane per- pendicular to a uniform magnetic field. The orbit radius is 32.7 cm. Find (a) the electron’s speed, (b) the magnetic field magnitude, (c) the circling frequency, and (d) the period of the motion. For problem 28.21 calculate the cyclotron period in nanoseconds using a cyclotron radius of 32.7 cm. 5 sig. figs.

A positron with kinetic energy 2.40 keV is projected into a uniform magnetic field of magnitude...

A positron with kinetic energy 2.40 keV is projected into a uniform magnetic field of magnitude 0.110 T, with its velocity vector making an angle of 80.0° with the field. Find (a) the period, (b) the pitch p, and (c) the radius r of its helical path answer with units please

A positron with kinetic energy 2.00 keV is projected into a uniform magnetic field of magnitude...

A positron with kinetic energy 2.00 keV is projected into a uniform magnetic field of magnitude 0.140 T, with its velocity vector making an angle of 83.0° with the field. Find (a) the period, (b) the pitch p, and (c) the radius r of its helical path.

A positron with kinetic energy 3.00 keV is projected into a uniform magnetic field of magnitude...

A positron with kinetic energy 3.00 keV is projected into a uniform magnetic field of magnitude 0.140 T, with its velocity vector making an angle of 88.0° with the field. Find (a) the period, (b) the pitch p, and (c) the radius r of its helical path. ASAP

What is the wavelength of an electron with a kinetic energy of 8 keV? What are...

What is the wavelength of an electron with a kinetic energy of 8 keV? What are the wavelength and frequency of the 8 keV x-rays frequently used for protein crystallography experiments? Compare to question 17 (What is the wavelength of an electron with a kinetic energy of 8 keV?). Consider electrons are accelerated with 5 kV voltage in a cathode ray tube. What is the short wavelength limit (SWL) of the continuous radiation that will be obtained? Thanks

In a laboratory experiment, an electron with a kinetic energy of 0.440 keV is shot toward...

In a laboratory experiment, an electron with a kinetic energy of 0.440 keV is shot toward another electron initially at rest (see figure below). (1 eV = 1.602 ✕ 10−19 J) The collision is elastic. The initially moving electron is deflected by the collision. (a) Is it possible for the initially stationary electron to remain at rest after the collision? Yes. However, this will only occur when the moving electron has a much higher kinetic energy than the question states....

An electron moves in a circular path perpendicular to a uniform magnetic field with a magnitude...

An electron moves in a circular path perpendicular to a uniform magnetic field with a magnitude of 2.14 mT. If the speed of the electron is 1.48 107 m/s, determine the following. (a) the radius of the circular path ............ cm (b) the time interval required to complete one revolution ............ s

In the figure, an electron with an initial kinetic energy of 4.00 keV enters region 1...

In the figure, an electron with an initial kinetic energy of 4.00 keV enters region 1 at time t = 0. That region contains a uniform magnetic field directed into the page, with magnitude 0.00510 T. The electron goes through a half-circle and then exits region 1, headed toward region 2 across a gap of 25.0 cm. There is an electric potential difference ΔV = 2000 V across the gap, with a polarity such that the electron's speed increases uniformly...

A magnetic field is along the xy plane and the z plane is perpendicular to the...

A magnetic field is along the xy plane and the z plane is perpendicular to the magnetic field. In which plane(s) is the magnetic flux the greatest? Please explain.
