Question

In: Mechanical Engineering

1. Calculate the moment of inertia for the circle square rectangular u calculate the moment of...

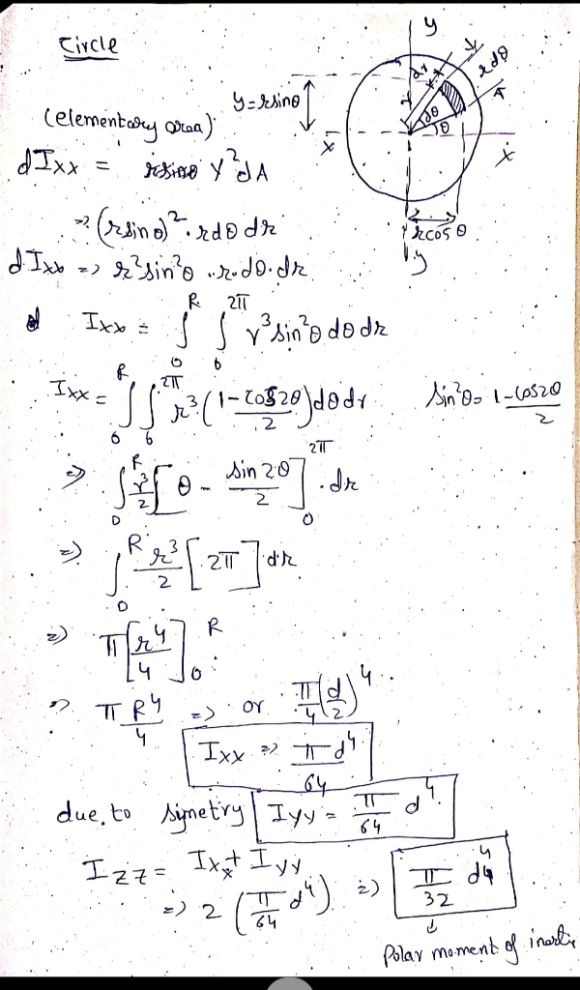

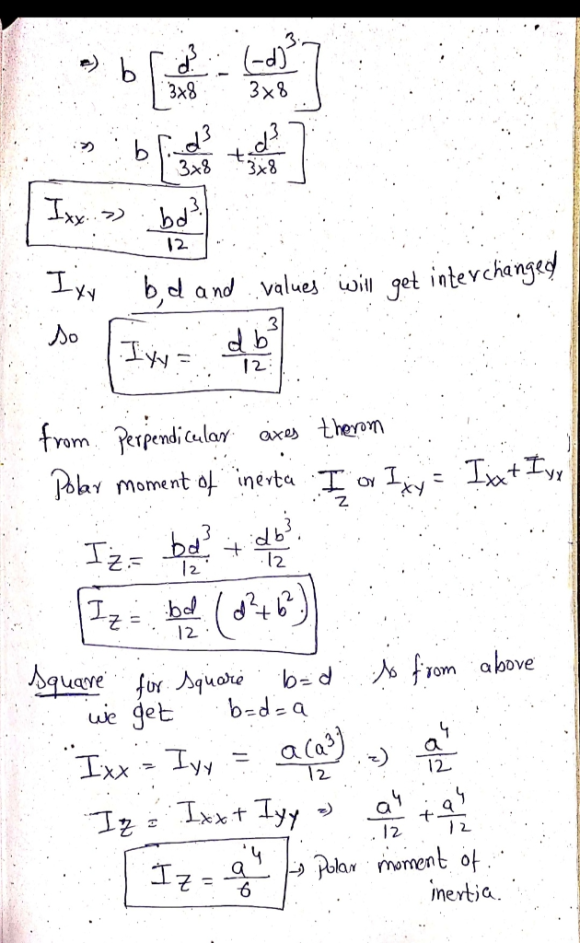

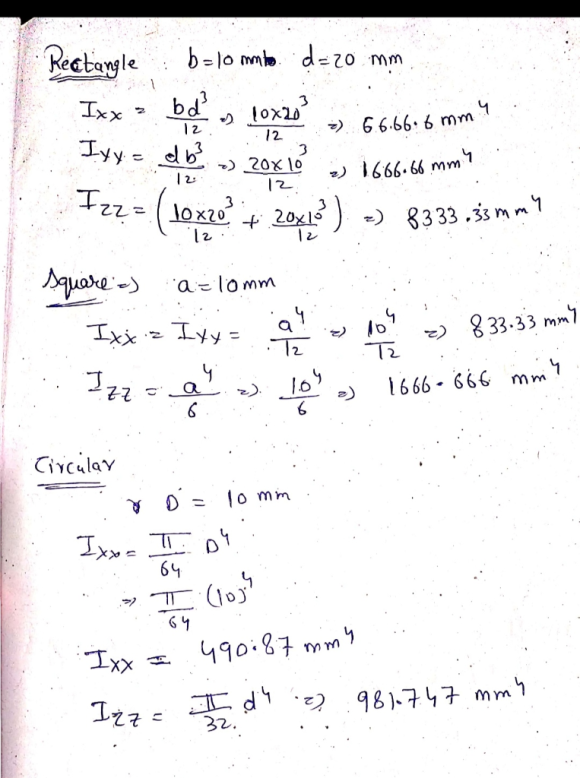

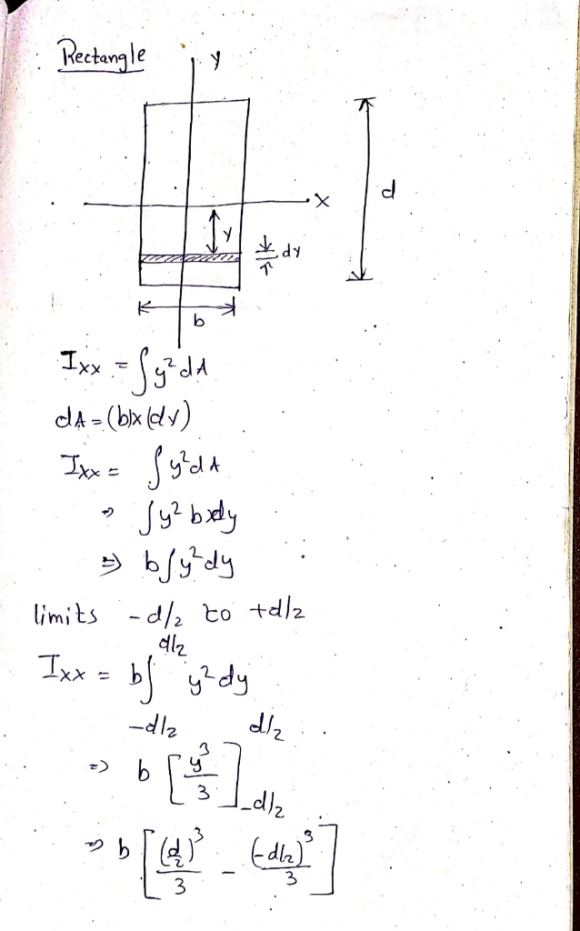

1. Calculate the moment of inertia for the circle square rectangular u calculate the moment of inertia and polar moment of inertia for the profile (we will give the values ​​ourselves).
2. Select a material based on iron and find sigmad, Re, Rm values, scale will be drawn according to goodman, gerber, soderberg etc. scale according to brittleness, and stress amplitude and max stress will be calculated.
3. Smith diagram of the material we selected for the second question will be drawn.

Solutions

Expert Solution

according to my guide lines i Should only answer one question

samet mamat answered 1 month ago
