Question

In: Computer Science

Create a scheduler that takes unlimited processes. It will ask for number of jobs, arrival time,...

Create a scheduler that takes unlimited processes. It will ask for number of jobs, arrival time, and CPU burst time. It should use FCFS, SJF, and SRTF methods. It should also print out the gantt chart, waiting time, and turn around time for each of the processes. Please solve using Java.

Solutions

Expert Solution

FCFS

PROGRAM

import java.text.ParseException;

class GFG {

   // Function to find the waiting time for all
   // processes
   static void findWaitingTime(int processes[], int n,
           int bt[], int wt[]) {
       // waiting time for first process is 0
       wt[0] = 0;

       // calculating waiting time
       for (int i = 1; i < n; i++) {
           wt[i] = bt[i - 1] + wt[i - 1];
       }
   }

   // Function to calculate turn around time
   static void findTurnAroundTime(int processes[], int n,
           int bt[], int wt[], int tat[]) {
       // calculating turnaround time by adding
       // bt[i] + wt[i]
       for (int i = 0; i < n; i++) {
           tat[i] = bt[i] + wt[i];
       }
   }

   //Function to calculate average time
   static void findavgTime(int processes[], int n, int bt[]) {
       int wt[] = new int[n], tat[] = new int[n];
       int total_wt = 0, total_tat = 0;

       //Function to find waiting time of all processes
       findWaitingTime(processes, n, bt, wt);

       //Function to find turn around time for all processes
       findTurnAroundTime(processes, n, bt, wt, tat);

       //Display processes along with all details
       System.out.printf("Processes Burst time Waiting"
                   +" time Turn around time\n");

       // Calculate total waiting time and total turn
       // around time
       for (int i = 0; i < n; i++) {
           total_wt = total_wt + wt[i];
           total_tat = total_tat + tat[i];
           System.out.printf(" %d ", (i + 1));
           System.out.printf("   %d ", bt[i]);
           System.out.printf("   %d", wt[i]);
           System.out.printf("   %d\n", tat[i]);
       }
       float s = (float)total_wt /(float) n;
       int t = total_tat / n;
       System.out.printf("Average waiting time = %f", s);
       System.out.printf("\n");
       System.out.printf("Average turn around time = %d ", t);
   }

   // Driver code
   public static void main(String[] args) throws ParseException {
       //process id's
       int processes[] = {1, 2, 3};
       int n = processes.length;

       //Burst time of all processes
       int burst_time[] = {10, 5, 8};

       findavgTime(processes, n, burst_time);

   }
}

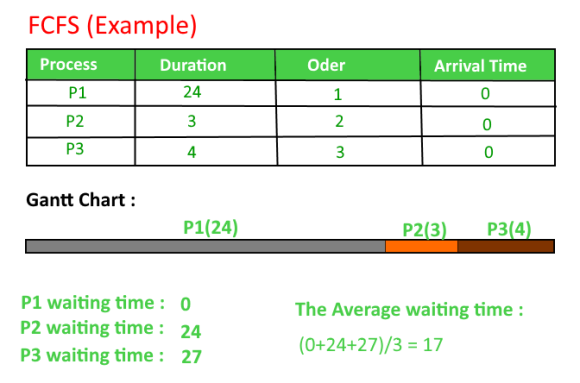

GANTT CHART

                                                                     SJF

PROGRAM

import java.util.*;

public class SJF {

public static void main(String args[])

{

Scanner sc = new Scanner(System.in);

System.out.println ("enter no of process:");

int n = sc.nextInt();

int pid[] = new int[n];

int at[] = new int[n]; // at means arrival time

int bt[] = new int[n]; // bt means burst time

int ct[] = new int[n]; // ct means complete time

int ta[] = new int[n]; // ta means turn around time

int wt[] = new int[n];  //wt means waiting time

int f[] = new int[n];  // f means it is flag it checks process is completed or not

int st=0, tot=0;

float avgwt=0, avgta=0;

for(int i=0;i<n;i++)

{

System.out.println ("enter process " + (i+1) + " arrival time:");

at[i] = sc.nextInt();

System.out.println ("enter process " + (i+1) + " brust time:");

bt[i] = sc.nextInt();

pid[i] = i+1;

f[i] = 0;

}

boolean a = true;

while(true)

{

int c=n, min=999;

if (tot == n) // total no of process = completed process loop will be terminated

break;

for (int i=0; i<n; i++)

{

/*

* If i'th process arrival time <= system time and its flag=0 and burst<min

* That process will be executed first

*/

if ((at[i] <= st) && (f[i] == 0) && (bt[i]<min))

{

min=bt[i];

c=i;

}

}

/* If c==n means c value can not updated because no process arrival time< system time so we increase the system time */

if (c==n)

st++;

else

{

ct[c]=st+bt[c];

st+=bt[c];

ta[c]=ct[c]-at[c];

wt[c]=ta[c]-bt[c];

f[c]=1;

tot++;

}

}

System.out.println("\npid  arrival brust  complete turn waiting");

for(int i=0;i<n;i++)

{

avgwt+= wt[i];

avgta+= ta[i];

System.out.println(pid[i]+"\t"+at[i]+"\t"+bt[i]+"\t"+ct[i]+"\t"+ta[i]+"\t"+wt[i]);

}

System.out.println ("\naverage tat is "+ (float)(avgta/n));

System.out.println ("average wt is "+ (float)(avgwt/n));

sc.close();

}

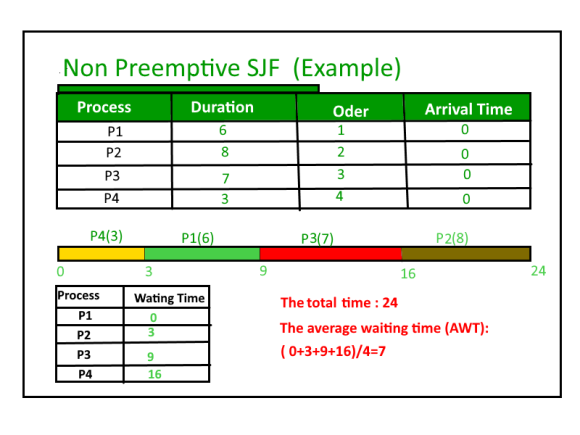

GANTT CHART

SRTF

PROGRAM

class Process
{
   int pid; // Process ID
   int bt; // Burst Time
   int art; // Arrival Time

   public Process(int pid, int bt, int art)
   {
       this.pid = pid;
       this.bt = bt;
       this.art = art;
   }
}

public class GFG
{
   // Method to find the waiting time for all
   // processes
   static void findWaitingTime(Process proc[], int n,
                                   int wt[])
   {
       int rt[] = new int[n];

       // Copy the burst time into rt[]
       for (int i = 0; i < n; i++)
           rt[i] = proc[i].bt;

       int complete = 0, t = 0, minm = Integer.MAX_VALUE;
       int shortest = 0, finish_time;
       boolean check = false;

       // Process until all processes gets
       // completed
       while (complete != n) {

           // Find process with minimum
           // remaining time among the
           // processes that arrives till the
           // current time`
           for (int j = 0; j < n; j++)
           {
               if ((proc[j].art <= t) &&
               (rt[j] < minm) && rt[j] > 0) {
                   minm = rt[j];
                   shortest = j;
                   check = true;
               }
           }

           if (check == false) {
               t++;
               continue;
           }

           // Reduce remaining time by one
           rt[shortest]--;

           // Update minimum
           minm = rt[shortest];
           if (minm == 0)
               minm = Integer.MAX_VALUE;

           // If a process gets completely
           // executed
           if (rt[shortest] == 0) {

               // Increment complete
               complete++;
               check = false;

               // Find finish time of current
               // process
               finish_time = t + 1;

               // Calculate waiting time
               wt[shortest] = finish_time -
                           proc[shortest].bt -
                           proc[shortest].art;

               if (wt[shortest] < 0)
                   wt[shortest] = 0;
           }
           // Increment time
           t++;
       }
   }

   // Method to calculate turn around time
   static void findTurnAroundTime(Process proc[], int n,
                           int wt[], int tat[])
   {
       // calculating turnaround time by adding
       // bt[i] + wt[i]
       for (int i = 0; i < n; i++)
           tat[i] = proc[i].bt + wt[i];
   }

   // Method to calculate average time
   static void findavgTime(Process proc[], int n)
   {
       int wt[] = new int[n], tat[] = new int[n];
       int total_wt = 0, total_tat = 0;

       // Function to find waiting time of all
       // processes
       findWaitingTime(proc, n, wt);

       // Function to find turn around time for
       // all processes
       findTurnAroundTime(proc, n, wt, tat);

       // Display processes along with all
       // details
       System.out.println("Processes " +
                       " Burst time " +
                       " Waiting time " +
                       " Turn around time");

       // Calculate total waiting time and
       // total turnaround time
       for (int i = 0; i < n; i++) {
           total_wt = total_wt + wt[i];
           total_tat = total_tat + tat[i];
           System.out.println(" " + proc[i].pid + "\t\t"
                           + proc[i].bt + "\t\t " + wt[i]
                           + "\t\t" + tat[i]);
       }

       System.out.println("Average waiting time = " +
                       (float)total_wt / (float)n);
       System.out.println("Average turn around time = " +
                       (float)total_tat / (float)n);
   }

   // Driver Method
   public static void main(String[] args)
   {
       Process proc[] = { new Process(1, 6, 1),
                           new Process(2, 8, 1),
                           new Process(3, 7, 2),
                           new Process(4, 3, 3)};

       findavgTime(proc, proc.length);
   }
}

    GANTT CHART

Process ID Arrival Time Burst Time Completion Time Turn Around Time Waiting Time Response Time
1 0 8 20 20 12 0
2 1 4 10 9 5 1
3 2 2 4 2 0 2
4 3 1 5 2 1 4
5 4 3 13 9 6 10
6 5 2 7 2 0 5

                    Avg Waiting Time = 24/6
