A house has 140m^2 of wall area with a thickness of 30cm, and glass area of...

A house has 140m^2 of wall area with a thickness of 30cm, and glass area of 8m^2 with a thickness of 0.5cm. Given thermal conductivity of wall =0.69 W/mK and thermal conductivity of glass = 0.78 W/mK. If these are the only mechanisms for heat loss from the house, estimate the rate of heat loss when the inside temperature is 20 degrees C and the outside temperature is -10 degrees C.

PART B: If the house is heated with an oil burner with 80% efficiency how many gallons of oil will be required each day to heat the house?(Assuming 140,000 BTU/gallon)

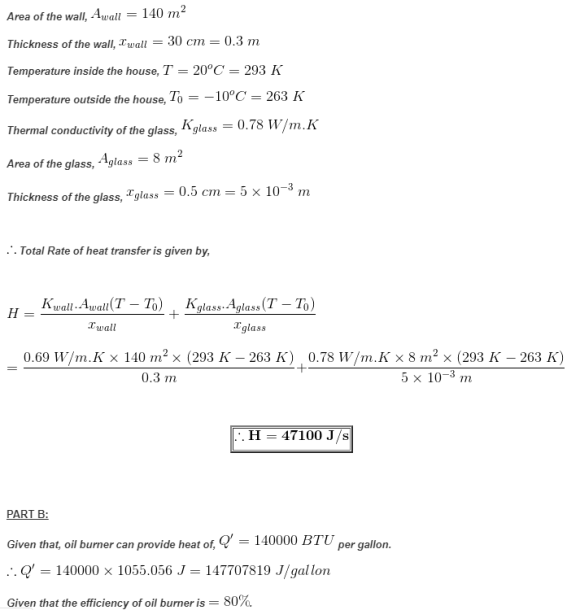

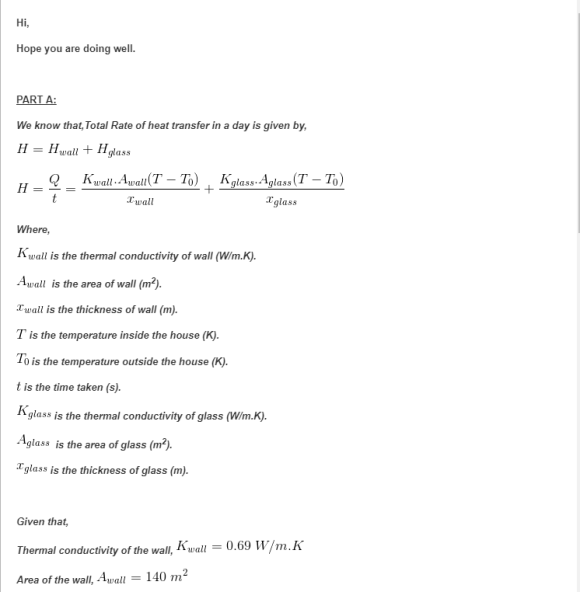

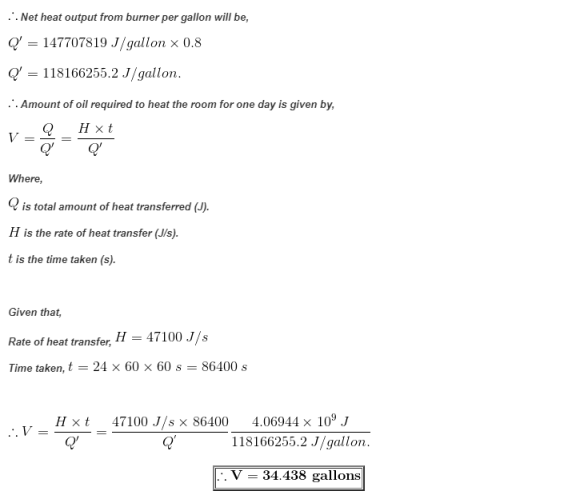

Expert Solution

Hope this helped for your studies. Keep learning. Have a good day.

Feel free to clear any doubts at the comment section.

Please don't forget to give a thumbs up.

Thank you. :)

genius_generous answered 2 months ago

A styrofoam cooler has a total area(including the lid) of 1.0m^2 and a wall thickness of...

A styrofoam cooler has a total area(including the lid) of 1.0m^2 and a wall thickness of 1.0 cm. It is filled with ice, water, and cans of ice-tea. They are at a temperature of 0 degrees celsius. a) What is the rate of heat flow into the cooler if the temperature of the outside is 20 degrees celsius? b) How much ice melts in one hour?

Design a wall footing to support a 30cm − wide reinforced concrete wall with a dead...

Design a wall footing to support a 30cm − wide reinforced concrete wall with a dead load DL =293 KN/m and a live load LL = 218 KN/m. The bottom of the footing is to be 1. 2m below the final grade, the soil weighs 16 KN m3 ⁄ , the allowable soil pressure, qa = 192 KN m2 ⁄ , and there is no appreciable sulfur content in the soil. fy = 420MPa and fc′ = 21MPa, normal- weight...

A plane wall has thickness of 5 cm, thermal conductivity of 2 W/mK and generates heat....

A plane wall has thickness of 5 cm, thermal conductivity of 2 W/mK and generates heat. The left face of the wall (x=0) has a surface temp. of 80C and has air at 20C flowing past it with a heat transfer coefficient of 50 W/m^2K. If the right face is insulated then the temperature distribution through the wall has a general format T(x)=A+B*x+C*x^2 (a) Draw a properly labeled diagram (including a representative temperature distribution), state all assumptions and calculate the...

If there is a MCM-41 which has wall thickness of 1 nm and pore diameter of...

If there is a MCM-41 which has wall thickness of 1 nm and pore diameter of 3 nm, where would I observe the XRD(2theta) peak?

2) (a) Calculate the Capacitance per unit area of a MOSCAP with an oxide thickness of...

2) (a) Calculate the Capacitance per unit area of a MOSCAP with an oxide thickness of 2 , when it is biased in inversion. The oxide is Silicon dioxide, the semiconductor is silicon, and the metal is Copper. (b) Does your answer depend on if the silicon substrate is p-type or n-type? (c) Does your answer depend on the type of metal used.

Consider a single pane glass window that has an area of 8ft^2 and is 3/16” thick....

Consider a single pane glass window that has an area of 8ft^2 and is 3/16” thick. The outside temperature is -10oC and the inside temperature is 21oC. [9] a.How much heat flows through the window in 8 hours? Use an R-value. b. In reality, all surfaces have a thin layer of air covering them that does not move. This air“film” is about .0005m thick. Calculate how much heat flows through the window in the 8 hour period with the addition...

Please choose the correct answer for problem 1,2,3,4 1) A brick wall has a thickness of...

Please choose the correct answer for problem 1,2,3,4 1) A brick wall has a thickness of 0.3 m, an area of 30 m2 , and a thermal conductivity of 0.7W/(m· ◦C). One side of the wall is at a temperature of 5◦C and the other side of the wall is at 25◦C. What is the energy/sec flowing through the wall due to conduction? A. 1000 W B. 1200 W C. 1400 W D. 1600 W 2) A brick wall has...

A factory produces plate glass with a mean thickness of 4mm and a standard deviation of...

A factory produces plate glass with a mean thickness of 4mm and a standard deviation of 1.1mm. A simple random sample of 100 sheets of glass is to be measured, and the mean thickness of the 100 sheets is to be computed. What is the probability that the average thickness of the 100 sheets is less than 3.91 mm?

A process that manufactures glass sheets is supposed to be calibrated so that the mean thickness...

A process that manufactures glass sheets is supposed to be calibrated so that the mean thickness  of the sheets is more than 4 mm. The standard deviation of the sheet thicknesses is known to be well approximated by σ = 0.20 mm. Thicknesses of each sheet in a sample of sheets will be measured, and a test of the hypothesis H_0:μ≤4 versus H_1:μ>4 will be performed. Assume that, in fact, the true mean thickness is 4.04 mm. a) If...

A glass window of index of refraction 1.3 is coated with an antireflective film of thickness...

A glass window of index of refraction 1.3 is coated with an antireflective film of thickness 2.0 µm. Which of the following indices of refraction of the film would cause the intensity of reflected light of wavelength 800 nm from a normally-incident beam to be suppressed? A. 1.1 B. 1.2 C. 1.4 D. 1.7 E. 1.8
